5/2-Way Base Mount Design
The VQZ125-5M01-CP-Q is a base-mounted 5/2-way solenoid valve from the VQZ series, providing a traditional mounting style with reliable pneumatic control.
SMC
SMC VQZ125-5M01-CP-Q Solenoid Valve 24VDC 5/2-Way
$95.62
Available
PRODUCT GALLERY
01 / 4

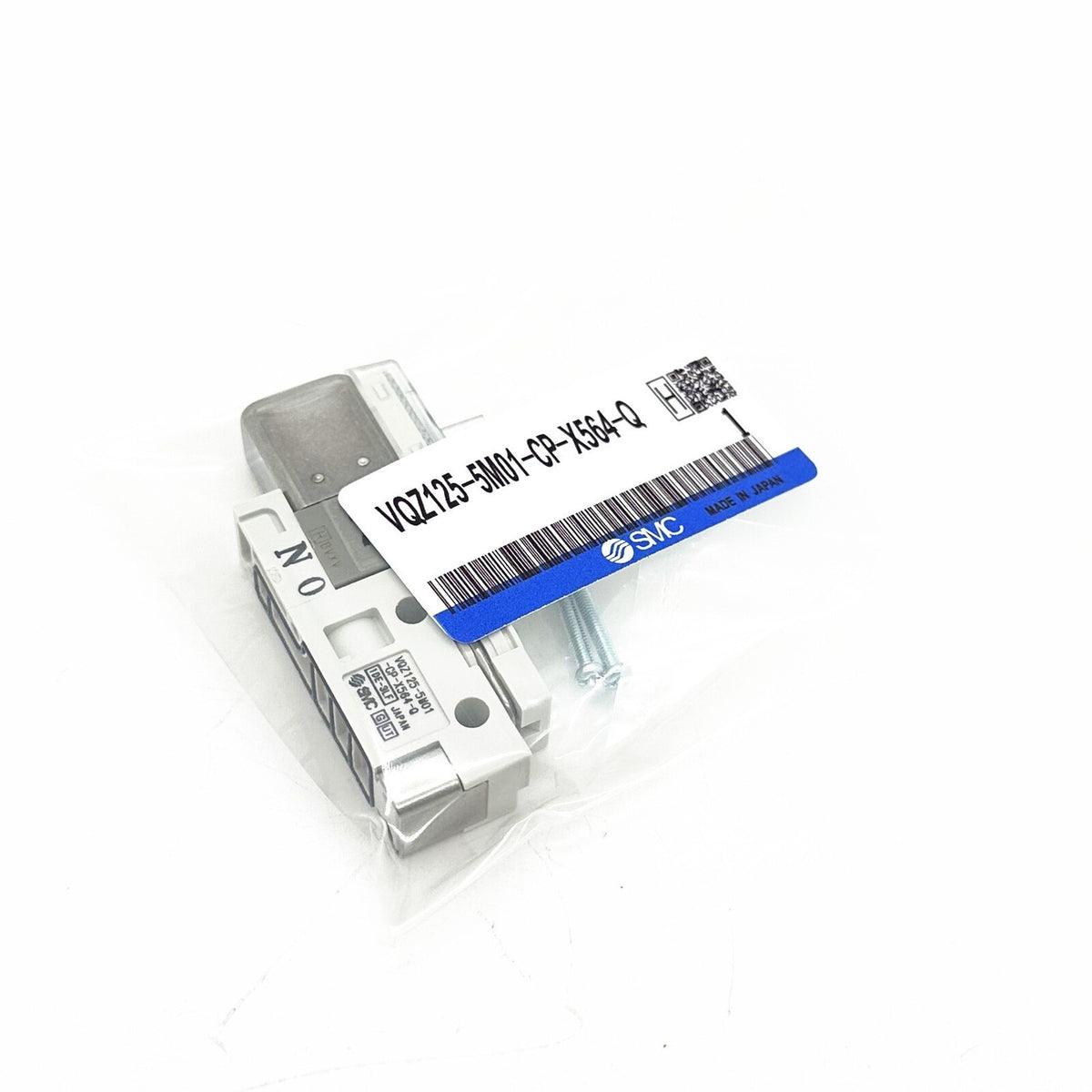

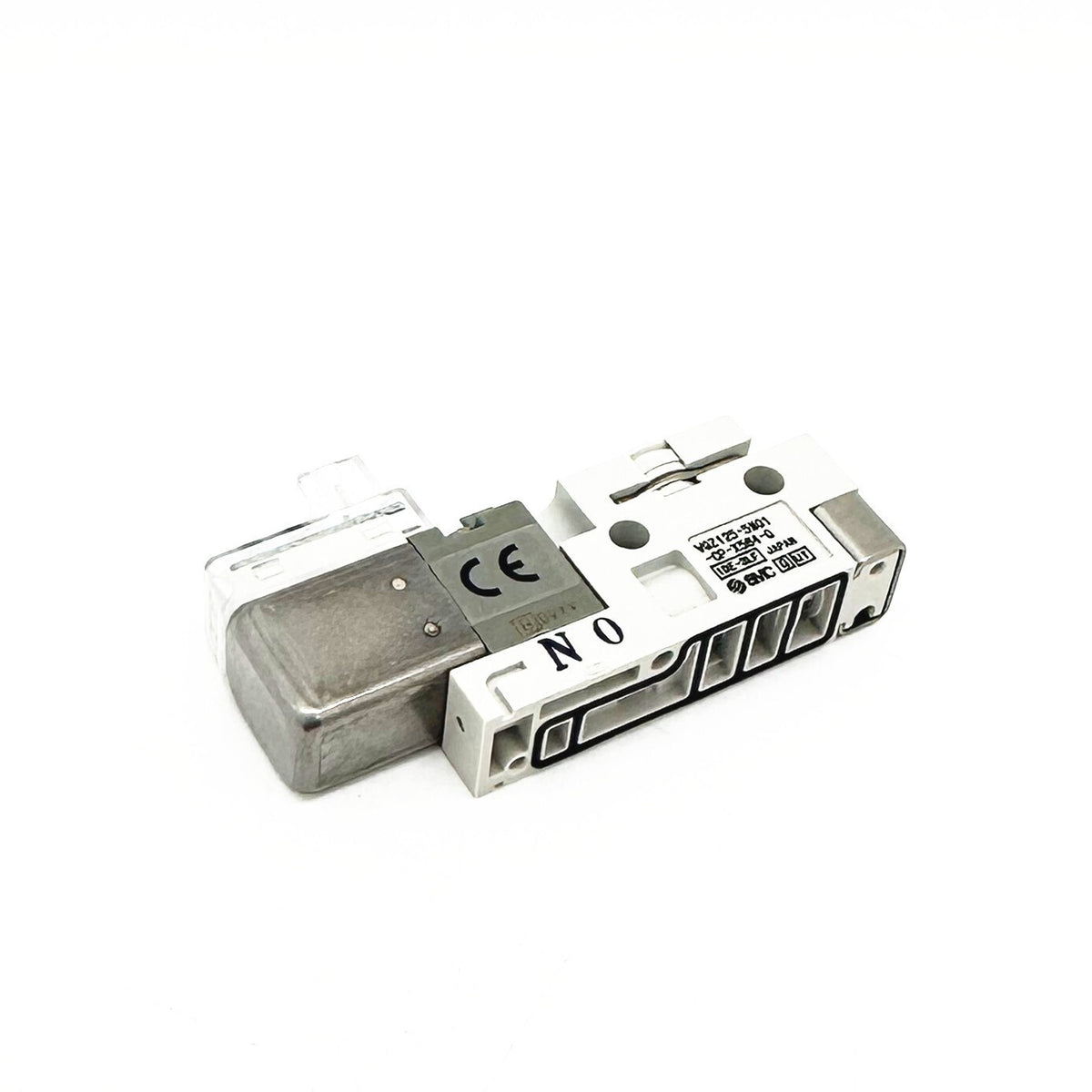

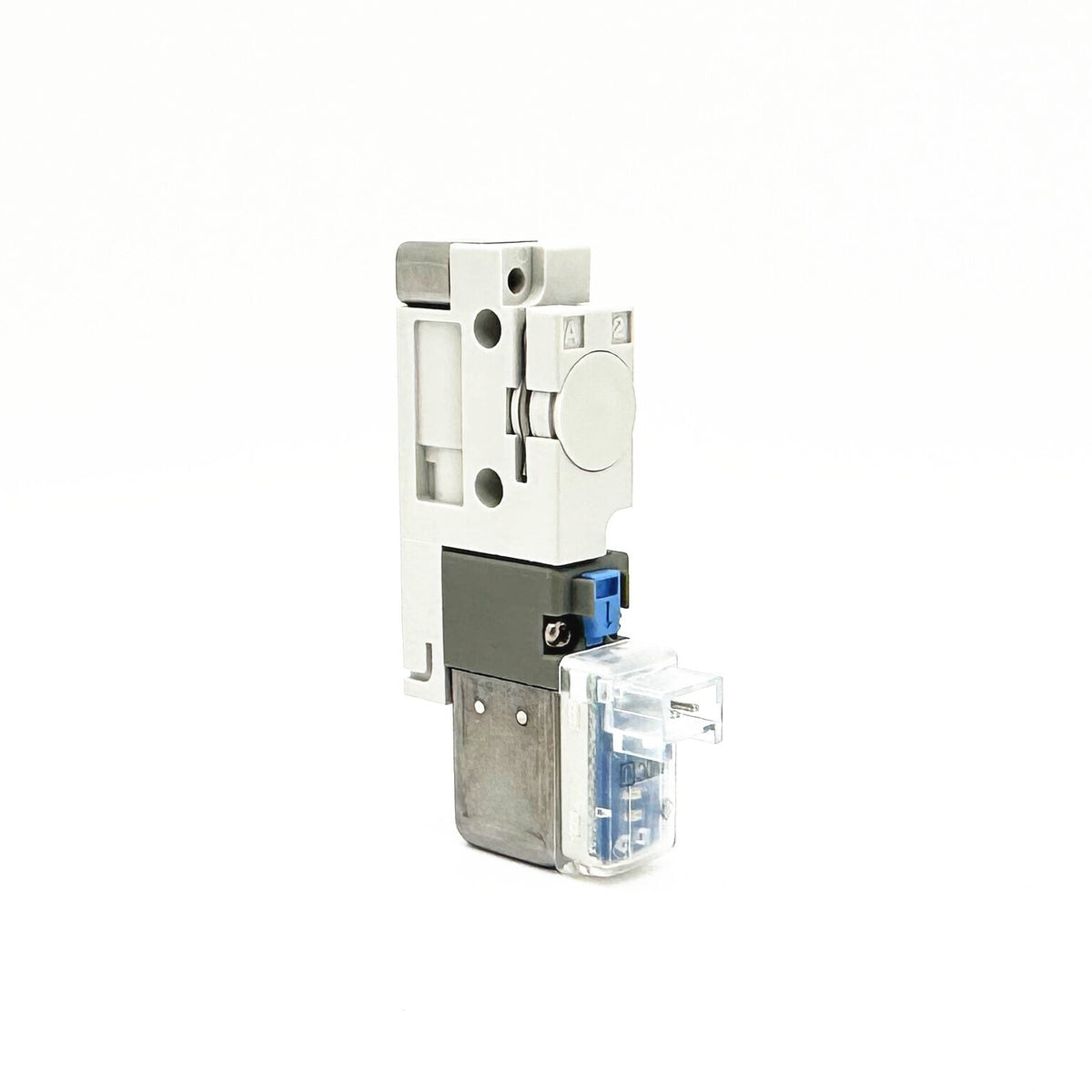

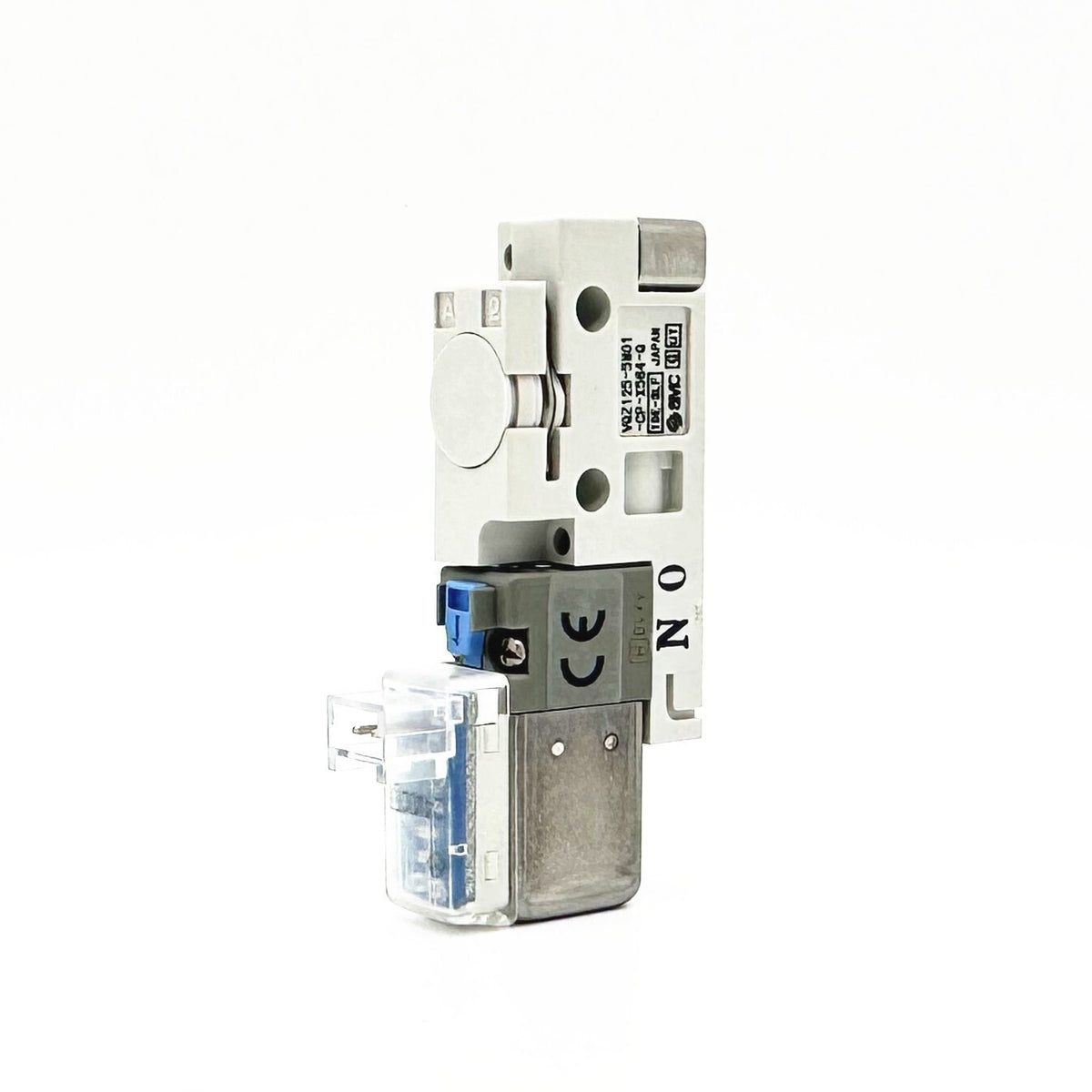

Product images for part identification
SMC
SMC VQZ125-5M01-CP-Q Solenoid Valve 24VDC 5/2-Way
PRODUCT PRICE
USD
$95.62
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SMC |
| Model Number | VQZ125-5M01-CP-Q |
| Product Category | Solenoid Valve |
| Product Family | VQZ Series |
| Valve Function | 5/2-Way |
| Mounting | Base Mount |
| Coil Voltage | 24 VDC |
| Operating Pressure Range | 0.1 to 0.7 MPa |
| Fluid | Air, Inert Gas |
| Effective Area (Metal Seal) | 2.0 to 12.6 mm² |
| Cv Factor (Metal Seal) | 0.11 to 0.7 |
| Response Time | 25 ms or less (Metal Seal, Standard 1W) |
| Ambient / Fluid Temperature | -10°C to +50°C |
Key Features
0.1 to 0.7 MPa Operating Range
Designed for air and inert gas service, the valve operates across a pressure range of 0.1 to 0.7 MPa.
24 VDC Coil
The coil is rated for 24 VDC, compatible with common industrial control power supplies.
Metal Seal Construction
The metal seal configuration provides effective areas from 2.0 to 12.6 mm² with corresponding Cv factors of 0.11 to 0.7.
Fast Response
Response time is 25 ms or less for the metal seal, standard 1W configuration, supporting responsive pneumatic circuit operation.
Applications
- Directional control of pneumatic cylinders
- Actuator extension and retraction control
- Automated valve manifolds in factory automation
- Packaging machinery pneumatic sequencing
- Material handling equipment control
- Assembly station pneumatic circuits
- General industrial air and inert gas control
- Base-mounted valve bank integration
Purchase Information
We support online purchase of the SMC VQZ125-5M01-CP-Q Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SMC VQZ125-5M01-CP-Q? The VQZ125-5M01-CP-Q is a base-mounted 5/2-way solenoid valve from the SMC VQZ series, designed for air and inert gas service.
What is the valve function? The valve function is 5/2-way.
What is the coil voltage? The coil is rated for 24 VDC.
What is the operating pressure range? The operating pressure range is 0.1 to 0.7 MPa.
What is the effective area of the valve? For the metal seal version, the effective area is 2.0 to 12.6 mm² with a Cv of 0.11 to 0.7.
What is the response time? The response time is 25 ms or less for the metal seal, standard 1W configuration.
What fluids can be used? The valve is suitable for air and inert gas.
What is the ambient and fluid temperature range? The operating temperature range is -10°C to +50°C.
What does the CP suffix indicate? The CP suffix denotes the connector type and electrical entry specification for this model.
What should be checked before ordering? Confirm the valve function (5/2-way), coil voltage (24 VDC), operating pressure range, mounting style (base mount), seal type (metal seal), and port size requirements.
