3-Port Spring Return Design
The VQZ115-5MO1-CP is a 3-port, single solenoid, spring return valve from the VQZ series, providing reliable default positioning on power loss.
SMC
SMC VQZ115-5MO1-CP Solenoid Valve 24VDC 5/2-Way
$45.78
Available
PRODUCT GALLERY
01 / 2

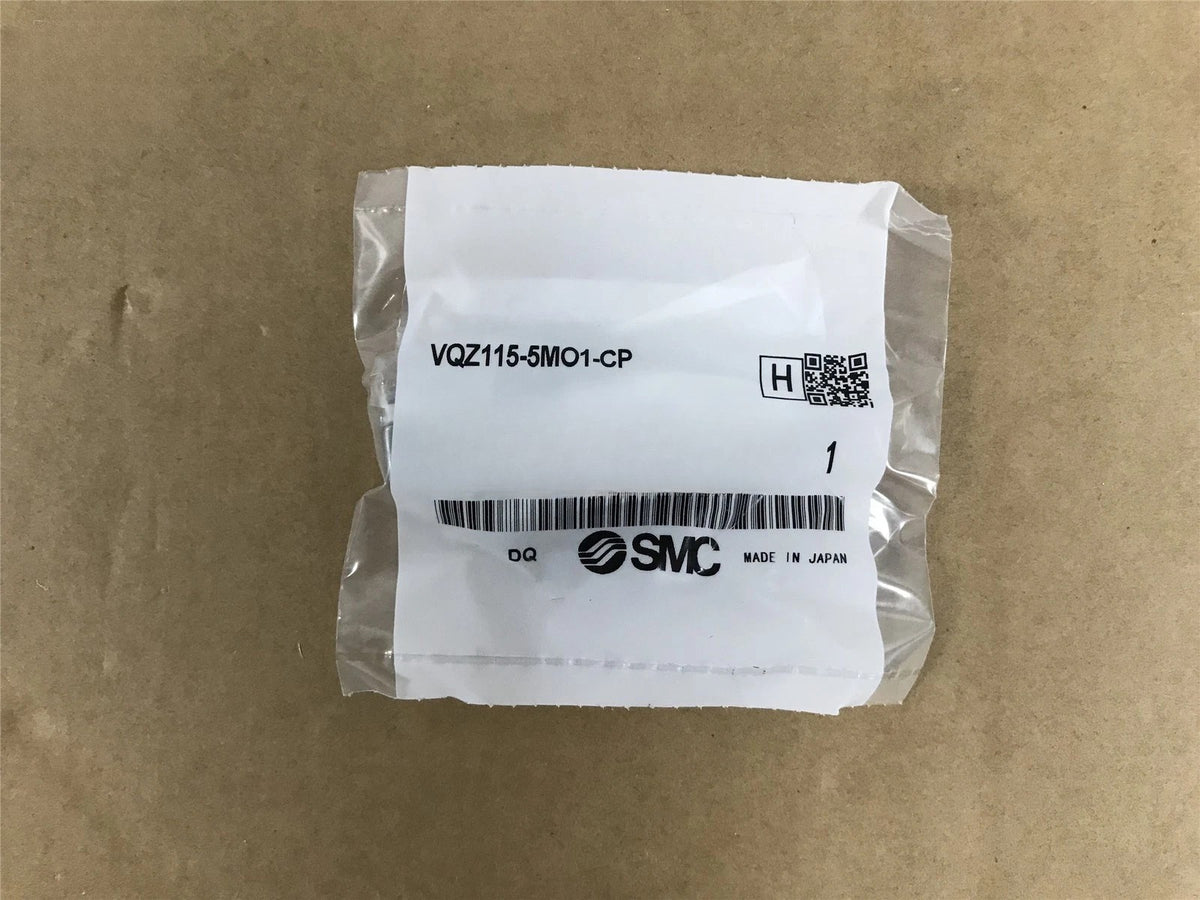

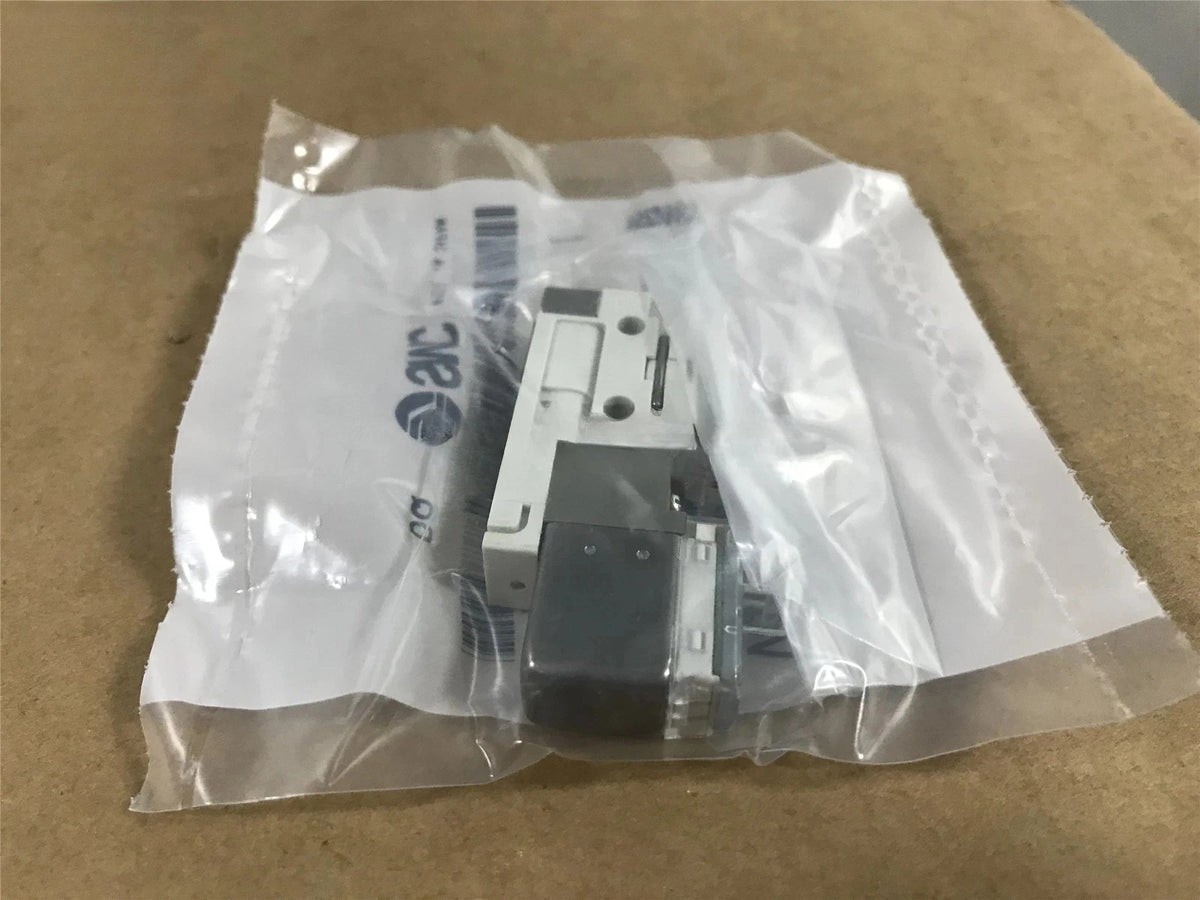

Product images for part identification
SMC
SMC VQZ115-5MO1-CP Solenoid Valve 24VDC 5/2-Way
PRODUCT PRICE
USD
$45.78
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SMC |
| Model Number | VQZ115-5MO1-CP |
| Product Category | Solenoid Valve |
| Product Family | VQZ Series |
| Valve Function | 3-Port, Single Solenoid, Spring Return |
| Mounting | Base Mount |
| Coil Voltage | 24 VDC |
| Coil Power | 0.35 W |
| Operating Pressure Range | 0.1 to 0.7 MPa |
| Fluid | Air, Inert Gas |
| Response Time | 14 ms or less (Metal Seal) |
| Ambient / Fluid Temperature | -10°C to +50°C |
| Manual Override | Non-Locking Push Style |
Key Features
Low Power Consumption
The 0.35 W coil reduces electrical load while maintaining effective pneumatic control at 24 VDC.
Fast Response
A response time of 14 ms or less (metal seal) supports quick actuation in high-cycle pneumatic circuits.
Non-Locking Push Override
A non-locking push-style manual override allows manual valve actuation for setup and troubleshooting.
Base Mount Configuration
The base mount design enables integration into valve manifolds and compact control panels.
Applications
- Single-acting cylinder control
- Pneumatic actuator directional control
- Spring-return valve functions in automation
- Packaging machinery pneumatic circuits
- Assembly station clamping control
- Material handling equipment
- General industrial air and inert gas control
- Manifold-mounted valve applications
Purchase Information
We support online purchase of the SMC VQZ115-5MO1-CP Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SMC VQZ115-5MO1-CP? The VQZ115-5MO1-CP is a 3-port, single solenoid, spring return valve from the SMC VQZ series with a base mount configuration.
What is the coil voltage and power? The coil is rated for 24 VDC with 0.35 W power consumption.
What is the operating pressure range? The operating pressure range is 0.1 to 0.7 MPa for air and inert gas.
What is the response time? The response time is 14 ms or less for the metal seal version.
What type of manual override is provided? The valve has a non-locking push-style manual override.
Is the valve spring return? Yes. The valve is single solenoid with spring return, providing a defined default position when de-energized.
What is the ambient and fluid temperature range? The operating temperature range is -10°C to +50°C.
What does the MO suffix indicate? The MO suffix denotes an M plug without connector for the electrical entry.
What should be checked before ordering? Confirm the valve function (3-port, spring return), coil voltage (24 VDC), power consumption (0.35 W), operating pressure range, mounting style (base mount), and manual override type.
