5-Port Pilot-Operated Metal Seal Valve
Pilot-operated, metal seal construction for directional control of pneumatic actuators in industrial circuits.
SMC
SMC VFS2600-5FZ Solenoid Valve 24VDC 5/2-Way
$98.10
Available
PRODUCT GALLERY
01 / 3

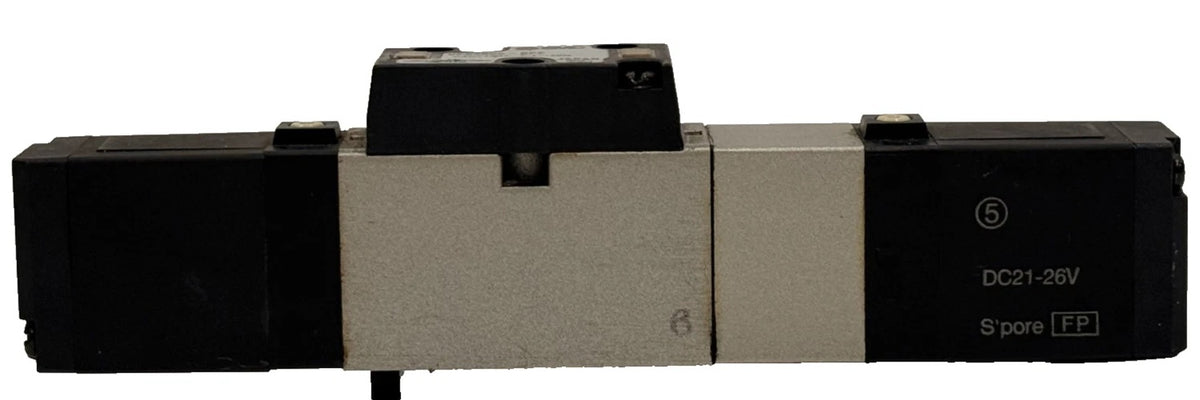

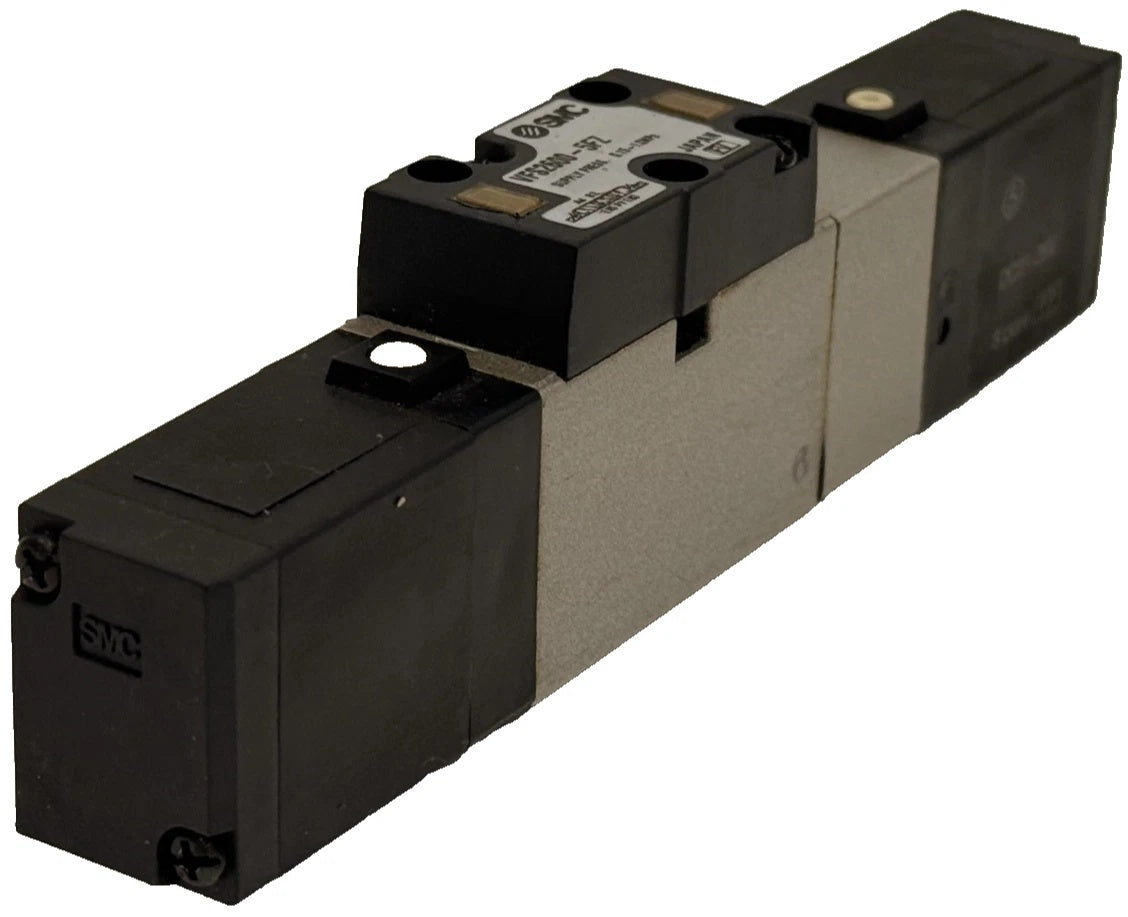

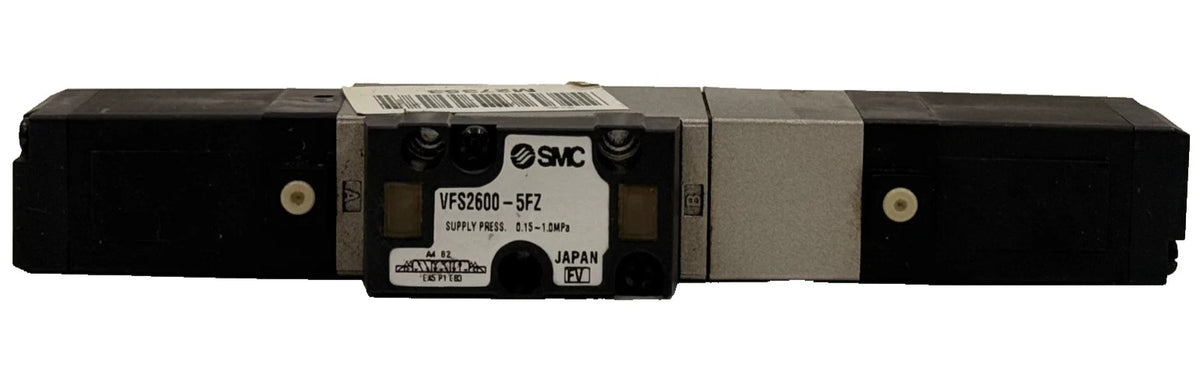

Product images for part identification
SMC
SMC VFS2600-5FZ Solenoid Valve 24VDC 5/2-Way
PRODUCT PRICE
USD
$98.10
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SMC |
| Model Number | VFS2600-5FZ |
| Product Category | Solenoid Valve |
| Series | VFS2000 |
| Valve Type | 5-Port, Pilot Operated, Metal Seal |
| Valve Function | 3 Position Perfect (Double Check) |
| Coil Voltage | 24 VDC |
| Pilot Type | Internal Pilot |
| Piping | Side Ported |
| Thread Type | Rc |
| Maximum Operating Pressure | 1.0 MPa (approx. 145 psi) |
| Proof Pressure | 1.5 MPa (approx. 218 psi) |
| Operating Temperature Range | -10 to 60°C (approx. 14 to 140°F) |
| Manual Override | Non-locking Push Style, Flush |
| Surge Suppressor | With Light and Surge Suppressor |
Key Features
3 Position Perfect Function
Three-position function with double check capability for controlled stopping and positioning of actuators.
Internal Pilot with 24 VDC Coil
Internal pilot design reduces external piping requirements, while the 24 VDC coil integrates with standard control systems.
Side-Ported Rc Thread
Side-ported body with Rc thread facilitates piping access and installation in manifold or body-ported configurations.
Light and Surge Suppressor
Integrated light and surge suppressor support status monitoring and protection of the 24 VDC control circuit.
Applications
- Pneumatic directional control with 3-position capability
- Double-acting cylinder positioning and stopping
- Manifold or body-ported valve assemblies
- Industrial automation valve islands
- Machine tools and production equipment
- Applications requiring metal seal and internal pilot construction
Purchase Information
We support online purchase of the SMC VFS2600-5FZ Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SMC VFS2600-5FZ? The VFS2600-5FZ is a VFS2000 series 5-port, pilot-operated, metal seal solenoid valve with a 24 VDC coil, 3 position perfect function, and side-ported Rc thread.
What is the valve function? It has a 3 position perfect (double check) function for controlled actuator positioning.
What is the maximum operating pressure? The maximum operating pressure is 1.0 MPa (approximately 145 psi).
What is the proof pressure? The proof pressure is 1.5 MPa (approximately 218 psi).
What is the operating temperature range? The operating temperature range is -10 to 60°C (approximately 14 to 140°F).
What coil voltage is specified? The valve operates on 24 VDC.
Is the pilot internal or external? The VFS2600-5FZ uses an internal pilot configuration.
What type of seal does the valve use? It uses a metal seal design.
Does the valve include a surge suppressor? Yes, it is equipped with a light and surge suppressor.
What manual override style is provided? It has a non-locking push style, flush manual override.
What piping connection does the VFS2600-5FZ use? It is side-ported with Rc thread.
What should be checked before ordering? Verify the complete model number, 5-port pilot-operated metal seal configuration, 3 position perfect function, 24 VDC coil, internal pilot, side-ported Rc thread, maximum operating pressure of 1.0 MPa, and operating temperature compatibility.
