Pilot-Operated 2-Port Design
Pilot-operated poppet construction for dry air service, enabling high flow capacity in a compact body.
SMC
SMC VQ31A1-5G-C10-F Solenoid Valve 24VDC 3/2-Way
$43.69
Available
PRODUCT GALLERY
01 / 3

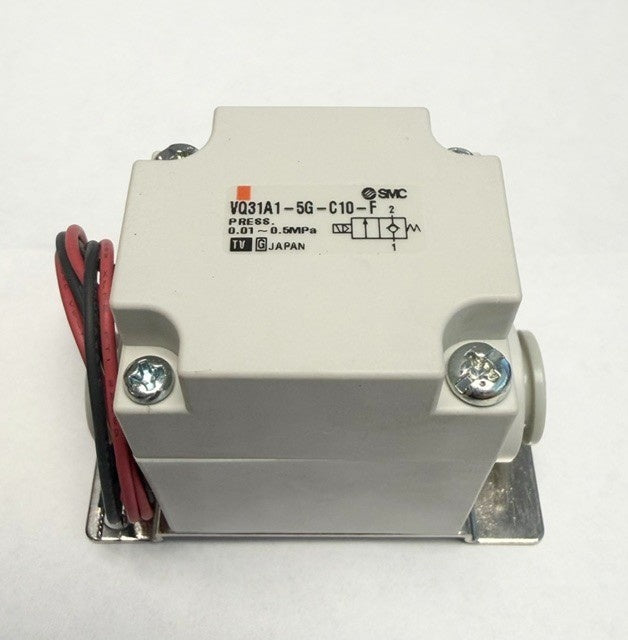

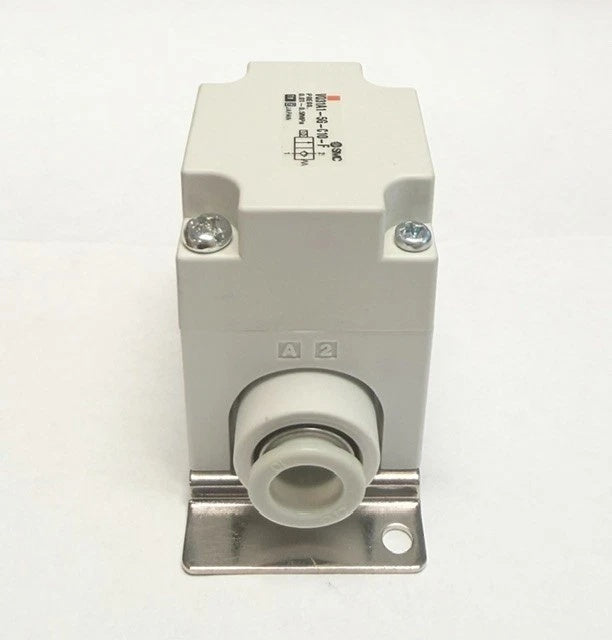

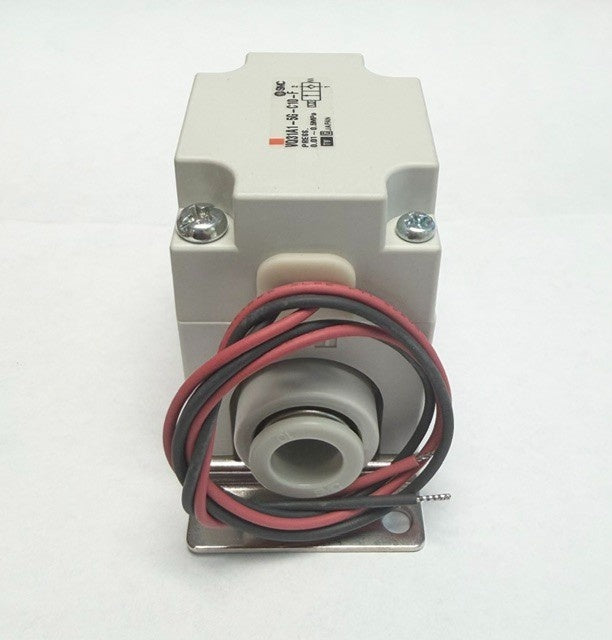

Product images for part identification
SMC
SMC VQ31A1-5G-C10-F Solenoid Valve 24VDC 3/2-Way
PRODUCT PRICE
USD
$43.69
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SMC |
| Model Number | VQ31A1-5G-C10-F |
| Product Category | Solenoid Valve |
| Valve Function | 2-Port, Pilot Operated, Normally Closed (for dry air) |
| Coil Voltage | 24 VDC |
| Operating Pressure Range | 0.01 to 0.5 MPa |
| Flow Coefficient (Cv) | 0.8 |
| Connection Tube Diameter | Ø10 mm (One-touch fitting) |
| Electrical Entry | Grommet |
| Manual Switch | Not Provided |
| Indicator / Surge Suppressor | With power saving circuit and surge voltage suppressor |
| Enclosure | Dust-proof / Jet-proof (IP65 equivalent, DIN connector type) |
Key Features
One-Touch Ø10 mm Fitting
Integrated one-touch fitting for Ø10 mm tubing simplifies piping work and reduces installation time.
Power Saving Circuit
Equipped with a power saving circuit and surge voltage suppressor to support stable 24 VDC coil operation.
IP65-Equivalent Enclosure
DIN connector type enclosure provides dust-proof and jet-proof protection for use in industrial environments.
0.8 Cv Flow Capacity
Flow coefficient of 0.8 supports dry air flow requirements within the specified 0.01 to 0.5 MPa pressure range.
Applications
- Dry air supply control
- Air blow-off and workpiece blowing
- Pneumatic on/off control circuits
- Compact valve assemblies with one-touch tubing
- Industrial automation pneumatic panels
- Applications requiring IP65-equivalent valve protection
Purchase Information
We support online purchase of the SMC VQ31A1-5G-C10-F Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SMC VQ31A1-5G-C10-F? The VQ31A1-5G-C10-F is a pilot-operated, 2-port solenoid valve designed for dry air, with a 24 VDC coil and a Ø10 mm one-touch fitting.
What is the valve function of the VQ31A1-5G-C10-F? It is a pilot-operated 2-port normally closed valve intended for dry air service.
What is the operating pressure range? The specified operating pressure range is 0.01 to 0.5 MPa.
What is the Cv value of this valve? The flow coefficient (Cv) is 0.8.
What connection size does the VQ31A1-5G-C10-F use? It uses a Ø10 mm one-touch fitting for tube connection.
What coil voltage is required? The valve is rated for 24 VDC operation.
Does the valve include a surge suppressor? Yes, it is configured with a power saving circuit and surge voltage suppressor.
What is the electrical entry type? The electrical entry is a grommet style.
Is a manual switch provided? No, this model is not provided with a manual switch.
What enclosure protection does the valve offer? The DIN connector type enclosure is dust-proof and jet-proof, corresponding to IP65-class protection.
What should be verified before ordering? Confirm the complete model number, dry air media compatibility, 24 VDC coil, Ø10 mm one-touch fitting, 0.01 to 0.5 MPa pressure range, grommet electrical entry, and IP65-equivalent protection requirement.
Need help confirming a model?
Send us your part number and technical requirements.
