Push Button, Flush Actuator
Flush push button actuator with a long plunger provides manual actuation for setup, testing, and manual override functions.
SMC

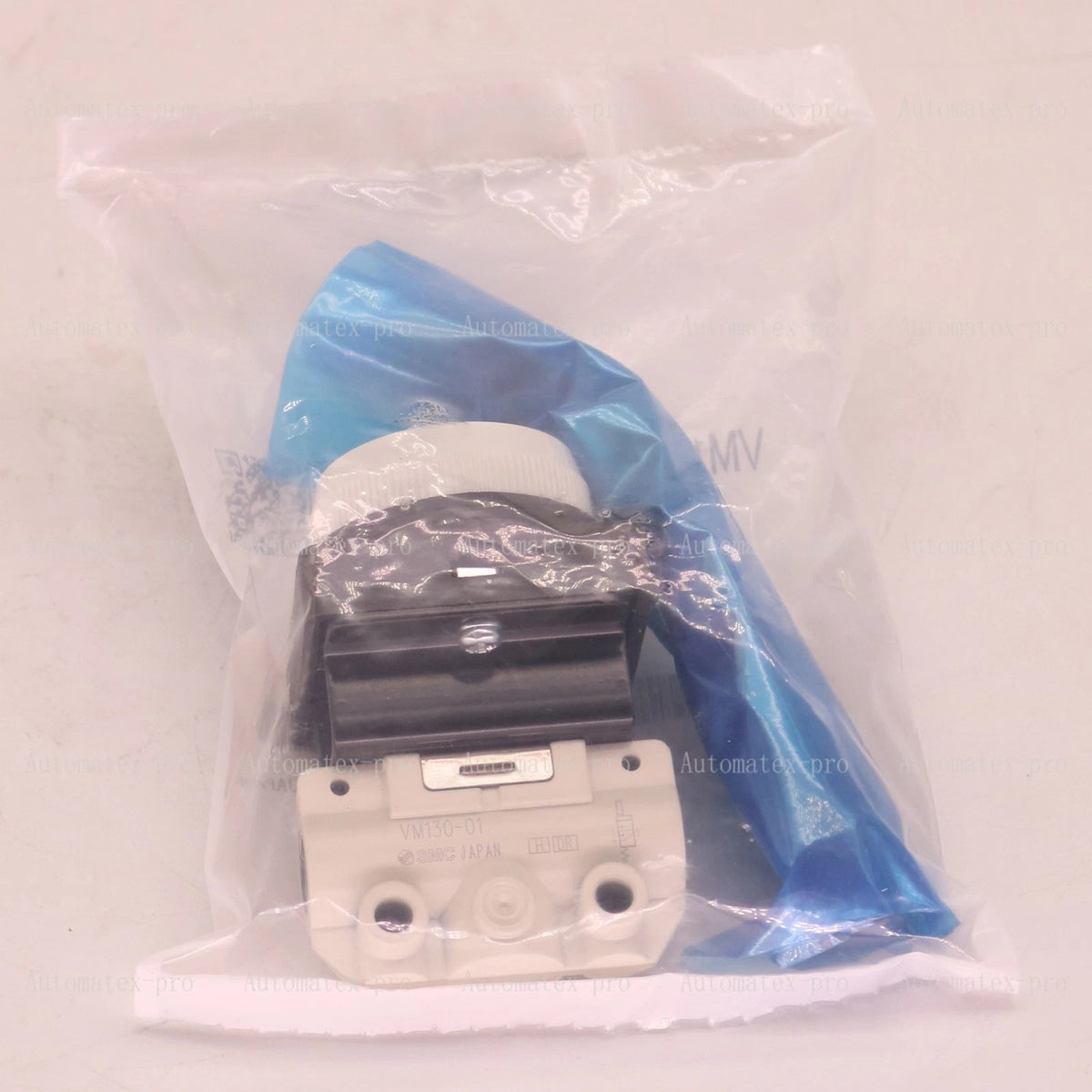

SMC VM130-01-33A Solenoid Valve 24VDC 3/2-Way
$29.65
Available
PRODUCT GALLERY
01 / 1
Product images for part identification
SMC
SMC VM130-01-33A Solenoid Valve 24VDC 3/2-Way
PRODUCT PRICE
USD
$29.65
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SMC |
| Model Number | VM130-01-33A |
| Product Category | Mechanical Valve / Solenoid Valve |
| Valve Type | 3-Port Mechanical Valve, Poppet Type |
| Actuator Type | Push Button, Flush (Long Plunger) |
| Port Size | R 1/8 |
| Piping Direction | Side Ported |
| Mounting | Side Mounting |
| Operating Pressure Range | -0.01 to 0.7 MPa |
| Operating Temperature | -5 to 60°C |
| Fluid | Air |
| Lubrication | Not required |
Key Features
3-Port Poppet Valve
Poppet-type 3-port mechanical valve construction for directional control of compressed air.
R 1/8 Side-Ported Connection
R 1/8 side-ported connection with side mounting arrangement for direct piping and compact installation.
Broad Pressure Range
Operates from -0.01 to 0.7 MPa, accommodating vacuum through positive pressure conditions.
Lubrication-Free Air Operation
Designed for lubricant-free compressed air, reducing maintenance requirements in compatible pneumatic systems.
Applications
- Manual pneumatic control circuits
- Setup and testing of pneumatic actuators
- Machine tools with manual override requirements
- Compact pneumatic panels
- Industrial automation maintenance and commissioning
- Air circuits requiring push-button actuation
Purchase Information
We support online purchase of the SMC VM130-01-33A Solenoid Valve. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SMC VM130-01-33A? The VM130-01-33A is a 3-port mechanical valve with a flush push button actuator, long plunger, R 1/8 side-ported connection, and side mounting.
What type of actuator does the VM130-01-33A use? It uses a push button, flush actuator with a long plunger.
What is the port size? The port size is R 1/8.
What is the operating pressure range? The operating pressure range is -0.01 to 0.7 MPa.
What is the operating temperature range? The operating temperature range is -5 to 60°C.
What fluid is suitable for this valve? It is intended for air service.
Does the VM130-01-33A require lubrication? No, lubrication is not required for operation.
How is the valve mounted? It is configured for side mounting with side-ported piping.
Is this a solenoid-operated valve? The VM130-01-33A is a mechanical valve actuated by a push button, not an electrical solenoid coil.
What should be confirmed before ordering? Verify the complete model number, 3-port poppet mechanical valve type, flush push button actuator, R 1/8 port size, side porting and mounting, -0.01 to 0.7 MPa pressure range, and air media compatibility.
Need help confirming a model?
Send us your part number and technical requirements.
