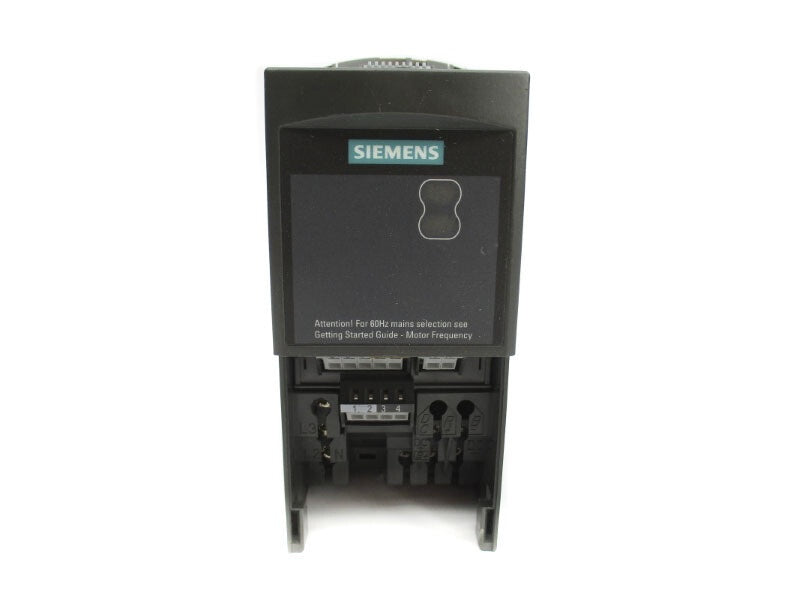

SIEMENS 6SE6420-2UD17-5AA1 Variable Frequency Drive 0.75kW 380-480V 3-Phase

SKU: LL1-SMS-6SE64202UD175AA1

$162.83

Available

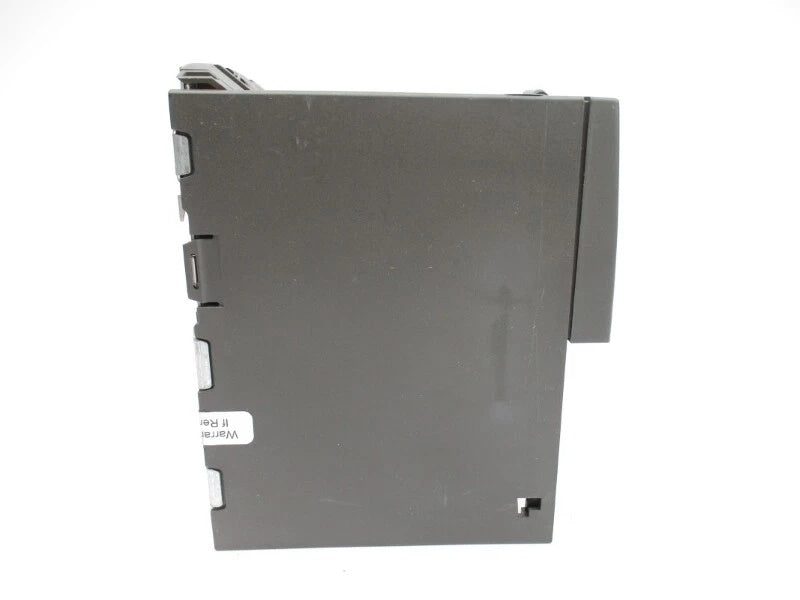

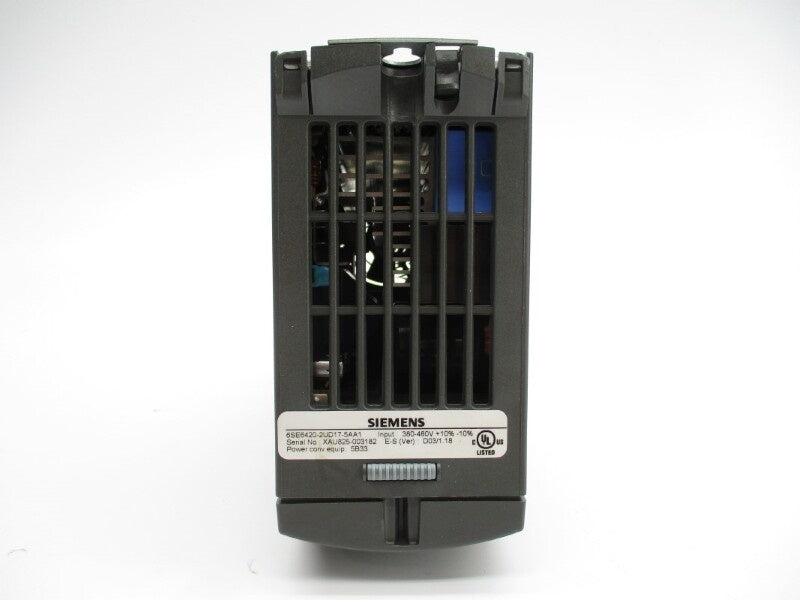

PRODUCT GALLERY 01 / 3

✓ Product images for part identification

SIEMENS

SIEMENS 6SE6420-2UD17-5AA1 Variable Frequency Drive 0.75kW 380-480V 3-Phase

SKU: LL1-SMS-6SE64202UD175AA1

PRODUCT PRICE USD

$162.83

Available to order

Request a Quote

Need multiple units or help confirming a model? Contact our team.

↗ Free U.S. Shipping Standard delivery

↻ 30-Day Returns Subject to return policy

▤ Bulk Purchase Request volume quotes

✓ Secure Checkout Shopify-powered checkout

PRODUCT DOCUMENTATION

Product Information

Technical specifications, features, applications and purchasing information.

Technical Specifications

Brand	SIEMENS
Model Number	6SE6420-2UD17-5AA1
Product Category	Variable Frequency Drive 0.75kW 380-480V 3-Phase
Product Family	MICROMASTER 420
Rated Power	0.75 kW
Input Voltage	380 V to 480 V AC, 3-phase
Input Frequency	47 Hz to 63 Hz
Output Current	2.1 A
Output Frequency Range	0 to 550 Hz
Overload Capability	150% for 60 s (constant torque)
Control Method	V/F control
Filter	Without filter
Protection Rating	IP20
Operating Temperature	-10°C to +50°C
Dimensions (H x W x D)	173 mm x 73 mm x 149 mm

Key Features

0.75 kW Rated Power

The MICROMASTER 420 drive is rated for 0.75 kW constant torque operation with 3-phase 380-480 VAC input.

380-480 V 3-Phase Input

Accepts a three-phase input voltage from 380 V to 480 V AC at 47 Hz to 63 Hz, with a +10%/-10% tolerance.

V/F Control

Uses V/F control method for variable frequency drive operation, with an output frequency range up to 550 Hz.

150% Overload for 60 s

Provides 150% overload capability for 60 seconds under constant torque conditions, supporting motor starting and short-term load peaks.

Unfiltered, IP20 Design

The drive is supplied without an integrated filter and has an IP20 protection rating, with dimensions of 173 mm x 73 mm x 149 mm.

Applications

Variable speed control of 0.75 kW three-phase AC motors
Industrial pump and fan speed regulation
Conveyor and material handling drive systems
Machine tool and processing equipment motor control
HVAC and building automation motor applications
Retrofit or new installation projects using MICROMASTER 420 drives

Purchase Information

We support online purchase of the SIEMENS 6SE6420-2UD17-5AA1 Variable Frequency Drive 0.75kW 380-480V 3-Phase. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.

Frequently Asked Questions

What is the SIEMENS 6SE6420-2UD17-5AA1? The 6SE6420-2UD17-5AA1 is a MICROMASTER 420 variable frequency drive rated 0.75 kW, designed for three-phase 380-480 VAC input.

What is the rated power? The rated power is 0.75 kW for constant torque operation.

What input voltage does it accept? It accepts 380 V to 480 V AC, 3-phase, at 47 Hz to 63 Hz, with a +10%/-10% tolerance.

What is the output current? The output current is 2.1 A.

What is the output frequency range? The output frequency range is 0 to 550 Hz.

What is the overload capability? The drive provides 150% overload for 60 seconds under constant torque conditions.

Does it include an input filter? No, the 6SE6420-2UD17-5AA1 is an unfiltered version.

What is the protection rating? The protection rating is IP20.

What is the operating temperature range? The operating temperature range is -10°C to +50°C.

What should be checked before ordering? Confirm the complete 6SE6420-2UD17-5AA1 catalog number, the motor power and current requirements, the three-phase supply voltage, whether an input filter is required for the installation, and the enclosure compatibility.
