Technical specifications, features, applications and purchasing information.

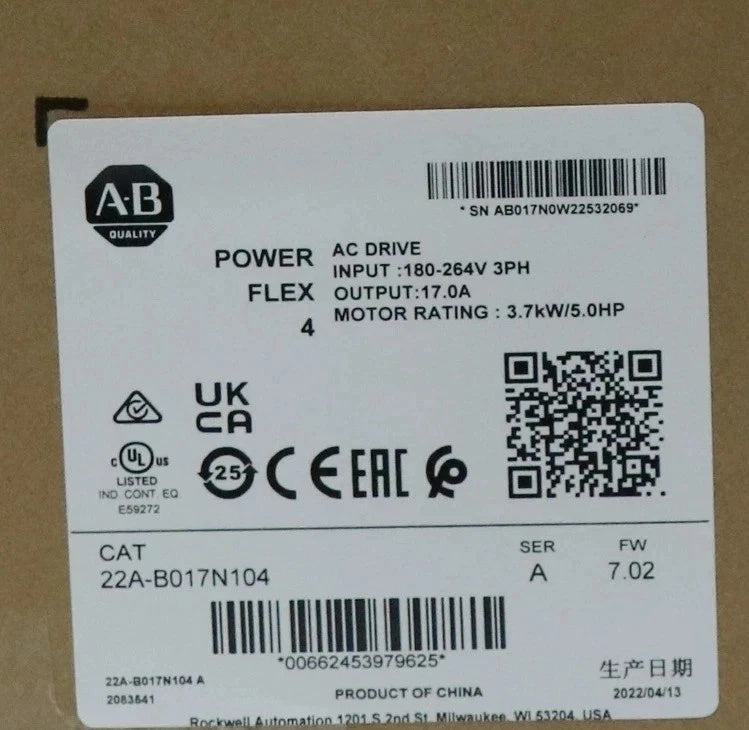

| Brand | Allen-Bradley |
| Model | 22A-B017N104 |
| Product Category | Variable Frequency Drive (VFD) |
| Manufacturer | Rockwell Automation |
| Product Family | PowerFlex 4 |
| Drive Type | Adjustable Frequency AC Drive |
| Rated Motor Power | 3.7 kW |
| Rated Motor Horsepower | 5 HP |
| Nominal Input Voltage | 200 to 240 VAC, 240 V Class |
| Permissible Input Voltage Range | 180 to 265 VAC |
| Input Phase | 3-Phase |
| Input Frequency | 50/60 Hz |
| Rated Output Current | 17.5 A, Manufacturer User Manual |
| Catalog Description Output Class | 17 A, Rounded Manufacturer Product Description |
| Output Voltage Range | 0 to 230 VAC, 3-Phase |
| Output Frequency | 0 to 240 Hz, Programmable |
| Rated Input Current | 21.0 A |
| Input Apparent Power | 8.6 kVA |
| Typical Efficiency | 97.5% |
| Power Factor | 0.98 |
| Control Method | Volts-per-Hertz with Slip Compensation |
| Speed Regulation | ±2% of Base Speed Across a 40:1 Speed Range with Slip Compensation |
| Frequency Accuracy, Digital Reference | Within ±0.05% of Set Output Frequency |
| Frequency Accuracy, Analog Reference | Within 0.5% of Maximum Output Frequency |
| Carrier Frequency | 2 to 16 kHz, Drive Rated at 4 kHz |
| Overload Capacity | 150% for 60 Seconds; 200% for 3 Seconds |
| Integrated Human Interface | LED Display and Fixed Digital Keypad |
| Communication Interface | Integrated RS485 (DSI) |
| Supported Serial Communication | Modbus RTU Functions Through RS485 (DSI) |
| Analog Voltage Input | 0 to 10 VDC, 100 kΩ Input Impedance |
| Analog Current Input | 4 to 20 mA, 250 Ω Input Impedance |
| External Potentiometer Reference | 1 to 10 kΩ, 2 W Minimum |
| Digital Control Inputs | 24 VDC Source or Sink Logic, Configurable |
| Digital Input Current | 6 mA |
| Programmable Control Output | 1 Form C Relay |
| Relay Output, Resistive Rating | 3 A at 30 VDC, 125 VAC or 240 VAC |
| Relay Output, Inductive Rating | 0.5 A at 30 VDC, 125 VAC or 240 VAC |
| Acceleration and Deceleration | Two Independently Programmable Times, 0 to 600 Seconds |
| Stopping Modes | Ramp, Coast, DC Brake, Ramp-to-Hold and S-Curve |
| Dynamic Braking | Integrated Brake IGBT; External Resistor Required When Applicable |
| Motor Overload Protection | Electronic Class 10 Overload Protection |
| Overcurrent Protection | 200% Hardware Limit; 300% Instantaneous Fault |
| DC Bus Protection | Overvoltage and Undervoltage Fault Monitoring |
| Control Ride-Through | 0.5 Seconds Minimum; 2 Seconds Typical |
| Faultless Power Ride-Through | 100 ms |
| Manufacturer Recommended Branch Fuse | 30 A, Subject to Installation Requirements |
| Recommended Fuse Types | UL Class J, CC, T or Type BS88, Appropriate Voltage Rating |
| Mounting Style | Panel Mount |
| Enclosure Rating | IP20 |
| NEMA/UL Enclosure Type | Type Open |
| Frame Size | B |
| Overall Height, Standard IP20 Drive | 180 mm |
| Overall Width | 100 mm |
| Overall Depth | 136 mm |
| Shipping Weight, Frame B | 2.2 kg |
| Cooling Method | Fan Cooling |
| Operating Ambient Temperature | -10 to +50°C, IP20 Without Derating |
| Storage Temperature | -40 to +85°C |
| Relative Humidity | 0 to 95%, Noncondensing |
| Maximum Installation Altitude Without Derating | 1000 m |
| Operating Shock Resistance | 15 g Peak for 11 ms |
| Operating Vibration Resistance | 1 g Peak, 5 to 2000 Hz |
| EMC Filter Configuration | No Integrated CE-Compliant Filter |
| Catalog Family Code | 22A, PowerFlex 4 |
| Voltage Code | B, 240 V Three-Phase Class |
| Current Rating Code | 017 |
| Enclosure Code | N, IP20 Panel Mount |
| UPC | 662453979625 |
| Product Lifecycle Status | Discontinued |
| Manufacturer Discontinuation Date | June 30, 2025 |
| Manufacturer-Listed Replacement | 25A-B017N104, Engineering Replacement |
| Related Flange-Mount Model | 22A-B017F104 |
| Manufacturer User Manual | Rockwell Automation Publication 22A-UM001L-EN-E, September 2024 |
| Manufacturer Technical Reference | https://www.rockwellautomation.com/en-us/products/details.22A-B017N104.html |
The Allen-Bradley 22A-B017N104 is a PowerFlex 4 adjustable frequency drive for compatible three-phase AC motors. It supports a 200–240 VAC three-phase input supply and provides 17.5 A rated output current for a 3.7 kW (5 HP) motor application.
The PowerFlex 4 supports volts-per-hertz control with slip compensation and a programmable output frequency range of 0 to 240 Hz. These functions support configurable motor speed, acceleration and deceleration in industrial equipment.
The built-in LED display and fixed digital keypad provide access to drive parameters, operating information and diagnostic fault codes. Technicians can perform local setup and maintenance without a separate operator panel.
An integrated RS485 DSI interface supports compatible serial communications, including supported Modbus RTU functions. This enables integration with appropriately configured PLCs and industrial monitoring equipment.
The drive includes electronic Class 10 motor overload protection, overcurrent protection and an integrated dynamic braking IGBT. Programmable stopping methods include ramp, coast and DC braking. An external braking resistor must be selected separately when required.
The panel-mounted Frame B drive measures approximately 180 × 100 × 136 mm and uses an IP20, NEMA/UL Type Open enclosure. Fan cooling and suitable cabinet ventilation support operation within the manufacturer's ambient temperature limits.
We support online purchase of the Allen-Bradley 22A-B017N104 Variable Frequency Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
What is the Allen-Bradley 22A-B017N104?
It is a Rockwell Automation PowerFlex 4 variable frequency drive rated for a 3.7 kW (5 HP) motor, with 240 V-class three-phase input, 17.5 A rated output current, a fixed keypad and RS485 communication.
What is the motor power rating?
The manufacturer specifies 3.7 kW or 5 HP. Motor selection must also account for the 17.5 A output rating and the application's operating requirements.
What input voltage does this drive require?
It requires a nominal 200–240 VAC three-phase supply at 50/60 Hz. The specified permissible input voltage range is 180–265 VAC.
What is the output current rating?
The PowerFlex 4 user manual specifies 17.5 A for catalog number 22A-B017N104. Rockwell's abbreviated product description refers to the same drive as a 17 A class unit.
Is the 22A-B017N104 single-phase or three-phase?
It is a three-phase input drive designed for compatible three-phase AC motors. It should not be treated as a single-phase input model.
What output voltage and frequency are available?
The manufacturer specifies a three-phase output voltage range of 0–230 VAC and a programmable output frequency range of 0–240 Hz. Motor nameplate limits must be respected during configuration.
What motor control method does PowerFlex 4 use?
The PowerFlex 4 supports volts-per-hertz control with slip compensation. This differs from PowerFlex 40 models that provide additional control methods.
Does the drive include a keypad and display?
Yes. It has a fixed digital keypad and LED display for parameter configuration, operational monitoring and fault diagnostics.
Does the drive support RS485 and Modbus RTU?
Yes. The integrated RS485 DSI port supports applicable Modbus RTU functions when the communication parameters and wiring are configured correctly.
Does the drive support dynamic braking?
Yes. An internal brake IGBT is included. A suitable external dynamic braking resistor and protective components are required if resistor-based braking is necessary for the application.
What is the recommended branch circuit fuse rating?
The Rockwell Automation user manual lists a 30 A fuse rating for 22A-B017N104. The final protection arrangement must comply with the manual, applicable electrical codes and the installation conditions.
What is the enclosure protection rating?
The drive is IP20, NEMA/UL Type Open, Frame B and panel-mounted. It requires an appropriately designed electrical cabinet for the surrounding environment.
What is the difference between 22A-B017N104 and 22A-D8P7N104?
Both belong to the PowerFlex 4 family and have a 3.7 kW (5 HP) motor rating. The 22A-B017N104 is a 240 V-class three-phase drive rated 17.5 A, while 22A-D8P7N104 is a 480 V-class three-phase drive rated 8.7 A. They are not voltage-interchangeable.
Is the Allen-Bradley 22A-B017N104 discontinued?
Yes. Rockwell Automation lists a discontinuation date of June 30, 2025. The product remains identifiable for servicing industrial equipment originally designed around this model.
What is the recommended replacement model?
Rockwell Automation identifies 25A-B017N104 as an engineering replacement. Direct interchangeability should not be assumed; electrical ratings, mounting, motor parameters, control wiring and communication compatibility must be reviewed before migration.
What should be checked before ordering?
Confirm the exact 22A-B017N104 catalog number, 3.7 kW (5 HP) motor rating, 200–240 VAC three-phase supply, 17.5 A rated output, Frame B IP20 panel mounting, integrated keypad, RS485 DSI interface, braking requirements, EMC filter configuration and compatibility with the existing motor and control system.
Send us your part number and technical requirements.
