Technical specifications, features, applications and purchasing information.
| Brand | Allen-Bradley |
| Model | 20AD022A0AYNANC0 |
| Product Category | Variable Frequency Drive (VFD) |
| Manufacturer | Rockwell Automation |
| Product Family | PowerFlex 70 |
| Drive Type | Adjustable Frequency AC Drive |
| Control Configuration | Enhanced Control |
| Nominal Input Voltage | 480 VAC |
| Input Voltage Class | 380–480 VAC, Three-Phase |
| Input Frequency | 50/60 Hz |
| Normal Duty Motor Power | 11 kW / 15 HP |
| Heavy Duty Motor Power | 7.5 kW / 10 HP |
| Rated Continuous Output Current | 22 A |
| One-Minute Output Current | 24.2 A |
| Three-Second Output Current | 33 A |
| Rated Input Current | 19.9 A at 480 VAC, Three-Phase |
| Output Voltage Range | 0 to Rated Motor Voltage |
| Maximum Output Frequency | 500 Hz with Enhanced Control |
| Standard Control Frequency Range | 0–400 Hz |
| Motor Control Methods | Volts-per-Hertz, Sensorless Vector and Supported Vector Control |
| Control Method | Sinusoidally Coded PWM |
| Carrier Frequency | Programmable; Drive Rating Based on 4 kHz |
| Current Limit Setting | 20–160% of Rated Output Current |
| Acceleration and Deceleration | Two Independently Programmable Times, 0–3600 Seconds |
| Time Adjustment Resolution | 0.1 Second |
| Motor Overload Protection | Electronic Class 10 Motor Overload Protection |
| Ground Fault Protection | Output Phase-to-Ground Fault Detection |
| Short Circuit Protection | Output Phase-to-Phase Fault Detection |
| Input Overvoltage Trip | 570 VAC at 480 V Class |
| Input Undervoltage Trip | 280 VAC at 480 V Class |
| Nominal DC Bus Voltage | 648 VDC at 480 VAC |
| DC Bus Overvoltage Trip | 810 VDC |
| Digital Inputs | 6, Enhanced Control Configuration |
| Analog Inputs | 2 |
| Analog Outputs | 1 |
| Communication Module | Not Included |
| Optional Communication | Compatible PowerFlex 7-Class Communication Adapter Required |
| Human Interface Module | Not Included; Blank Plate |
| Blank Plate Reference | 20-HIM-A0 |
| Feedback Option | No Encoder Feedback Option Included |
| Brake IGBT | Installed |
| Drive-Mounted Brake Resistor | Not Included |
| EMC Filter | Second-Environment Filter |
| Common-Mode Choke | Included |
| Enclosure Rating | IP20 / NEMA Type 1 |
| Enclosure Finish | Conformal Coating |
| Mounting Method | Panel Mount |
| Frame Size | Frame D |
| Cooling Method | Fan Cooling |
| Typical Efficiency | 97.5% at Rated Operating Conditions |
| Displacement Power Factor | 0.98 |
| Maximum Ambient Operating Temperature | 50°C Without Derating, Applicable Enclosure Conditions |
| Operating Relative Humidity | 5–95%, Noncondensing |
| Maximum Altitude Without Derating | 1000 m |
| Manufacturer Dual-Element Time-Delay Fuse Range | 25–45 A at 480 VAC |
| Manufacturer Non-Time-Delay Fuse Range | 25–80 A at 480 VAC |
| Maximum Listed Short-Circuit Rating | 200 kA Symmetrical with Specified Protection |
| Catalog Family Code | 20A, PowerFlex 70 |
| Catalog Current Rating Code | 022, 22 A |
| UPC | 820919204654 |
| Product Lifecycle Status | End of Life, Manufacturer Designation |
| Manufacturer-Announced Discontinuation Date | May 30, 2027 |
| Replacement Category | Engineering Replacement |
| Manufacturer User Manual | Rockwell Automation Publication 20A-UM001 |
| Manufacturer Technical Data | Rockwell Automation Publication 20A-TD001 |
| Manufacturer Installation Instructions | Rockwell Automation Publication 20A-IN002 |
| Manufacturer Product Reference | https://www.rockwellautomation.com/en-us/products/details.20AD022A0AYNANC0.html |

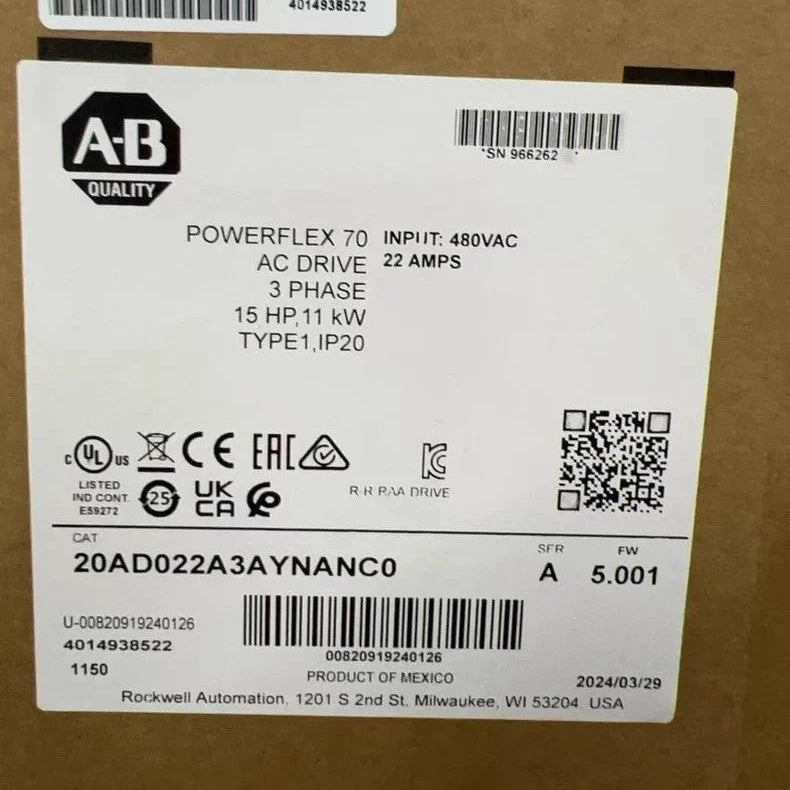

The Allen-Bradley 20AD022A0AYNANC0 is a PowerFlex 70 adjustable frequency drive designed for 480 VAC three-phase industrial power systems. It provides 22 A continuous output current with an 11 kW (15 HP) normal duty motor rating.
The enhanced-control configuration supports configurable volts-per-hertz, sensorless vector and vector-based motor control functions. Its output frequency range extends to 500 Hz, subject to the connected motor and application requirements.
The manufacturer specifies 24.2 A for one-minute operation and 33 A for three-second operation. Electronic Class 10 overload protection, ground fault detection and short-circuit monitoring help protect correctly configured industrial drive systems.
A braking transistor is installed in this drive configuration. No drive-mounted braking resistor is included, so any required external resistor must be selected according to braking energy, resistance and thermal requirements.
The panel-mounted Frame D drive uses an IP20 / NEMA Type 1 enclosure with conformal coating. A second-environment EMC filter and common-mode choke are included to support appropriate industrial electrical installations.
The catalog configuration provides enhanced control without an installed communication adapter or Human Interface Module. Compatible optional components can provide additional networking or local parameter access after verification of the required PowerFlex 70 hardware and firmware.
We support online purchase of the Allen-Bradley 20AD022A0AYNANC0 Variable Frequency Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
What is the Allen-Bradley 20AD022A0AYNANC0?
It is a Rockwell Automation PowerFlex 70 variable frequency drive featuring enhanced motor control, a 480 VAC three-phase input, 22 A continuous output current and an IP20 / NEMA Type 1 Frame D enclosure.
What is the normal duty motor power rating?
The normal duty rating is 11 kW (15 HP). The manufacturer specifies a continuous output current of 22 A for this configuration.
What is the heavy duty motor rating?
Rockwell Automation specifies a 10 HP heavy duty motor rating. Heavy duty selection must consider the connected motor current, load characteristics and the applicable overload requirements.
What input voltage is required?
The drive is specified for a nominal 480 VAC three-phase supply in the 380–480 V class. Installation must comply with the voltage limits and circuit protection requirements in the PowerFlex 70 manual.
What is the continuous output current?
The rated continuous output current is 22 A. The manufacturer also specifies 24.2 A for one minute and 33 A for three seconds under applicable overload conditions.
Does the drive support sensorless vector control?
Yes. The enhanced-control configuration supports sensorless vector operation and additional supported motor-control methods, including customizable volts-per-hertz control.
What is the maximum output frequency?
The enhanced-control configuration supports an output frequency range of 0–500 Hz. Motor speed settings must remain compatible with the motor nameplate and driven equipment.
Does 20AD022A0AYNANC0 include a keypad?
No. The specified catalog configuration includes a blank HIM plate rather than an installed operator keypad. A compatible Human Interface Module can be selected separately.
Does this model have built-in EtherNet/IP communication?
No internal communication module is included. EtherNet/IP integration requires an appropriate compatible communication adapter and suitable drive configuration.
Does the drive include a braking transistor?
Yes. A brake IGBT is installed. The drive does not include a drive-mounted braking resistor, so external braking hardware must be selected when required by the application.
What type of EMC filter is included?
The manufacturer specifies a second-environment EMC filter and common-mode choke. EMC compliance depends on the complete installation, including grounding, motor cable selection and wiring practices.
What is the enclosure type?
The drive has an IP20 / NEMA Type 1 panel-mounted enclosure with conformal coating and uses a Frame D construction.
Does the 20AD022A0AYNANC0 include an encoder feedback module?
No encoder feedback option is included in this catalog configuration. Any required feedback accessory must be selected and configured separately.
What circuit protection is recommended?
Rockwell Automation provides circuit protection data for this model, including a 25–45 A dual-element time-delay fuse range at 480 VAC. Final protection selection depends on the applicable electrical code, fault-current rating and installation configuration.
Is the 20AD022A0AYNANC0 discontinued?
Rockwell Automation currently designates the product as End of Life and has announced May 30, 2027 as its discontinuation date. As of October 2026, that announced date is still in the future.
Can this PowerFlex 70 be replaced with a newer drive?
Rockwell Automation classifies replacement of this catalog number as an engineering replacement. Any proposed alternative must be evaluated for electrical ratings, enclosure dimensions, braking functionality, I/O, communication, motor control and parameter compatibility.
What should be verified before ordering?
Confirm the exact catalog number 20AD022A0AYNANC0, 480 VAC three-phase input, 11 kW (15 HP) normal duty and 10 HP heavy duty ratings, 22 A continuous output, enhanced control, Frame D IP20 / NEMA Type 1 enclosure, conformal coating, braking IGBT, second-environment EMC filter, blank HIM plate, absence of an internal communication module and absence of encoder feedback.
