2.2 kW Motor Rating
Rated for motor applications up to 2.2 kW (3 HP) under the specified operating conditions.
Allen-Bradley
Allen-Bradley 22A-D6P0N104 PowerFlex 4 AC Drive 2.2kW 480VAC
$522.17
Available
PRODUCT GALLERY
01 / 6

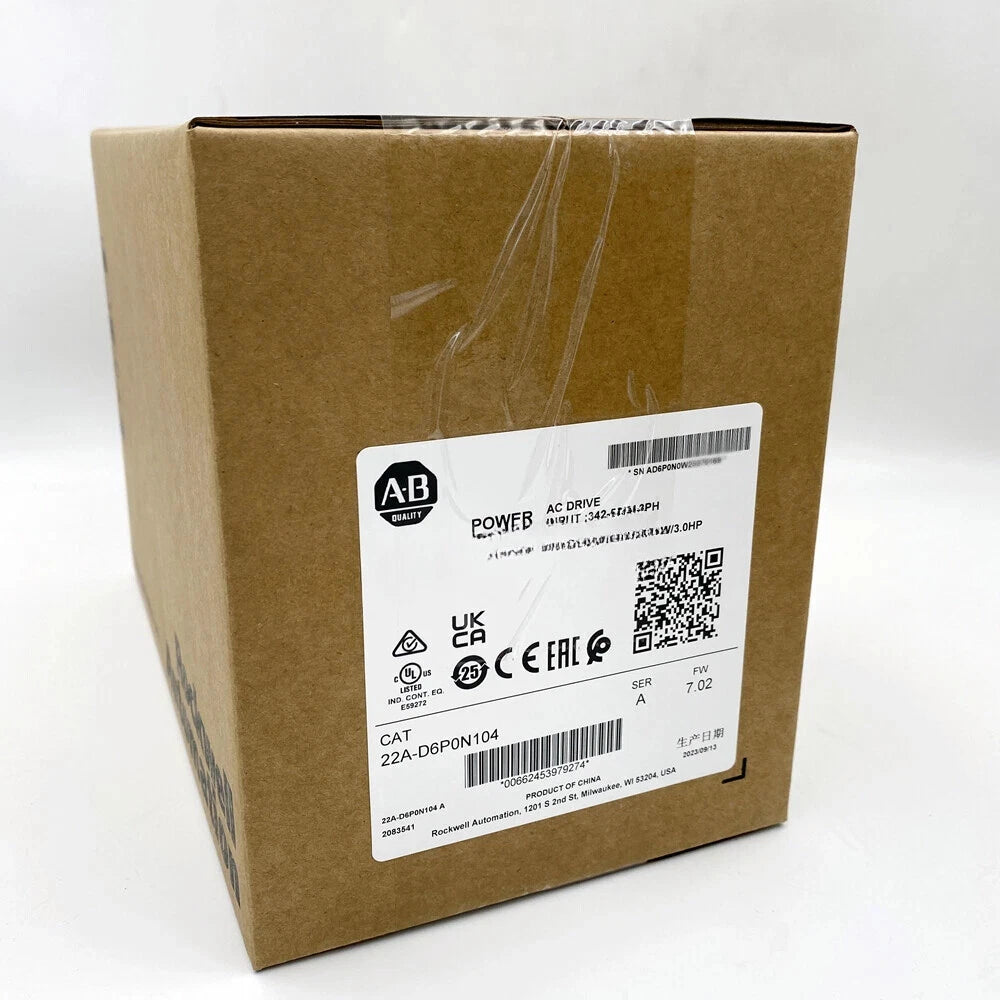

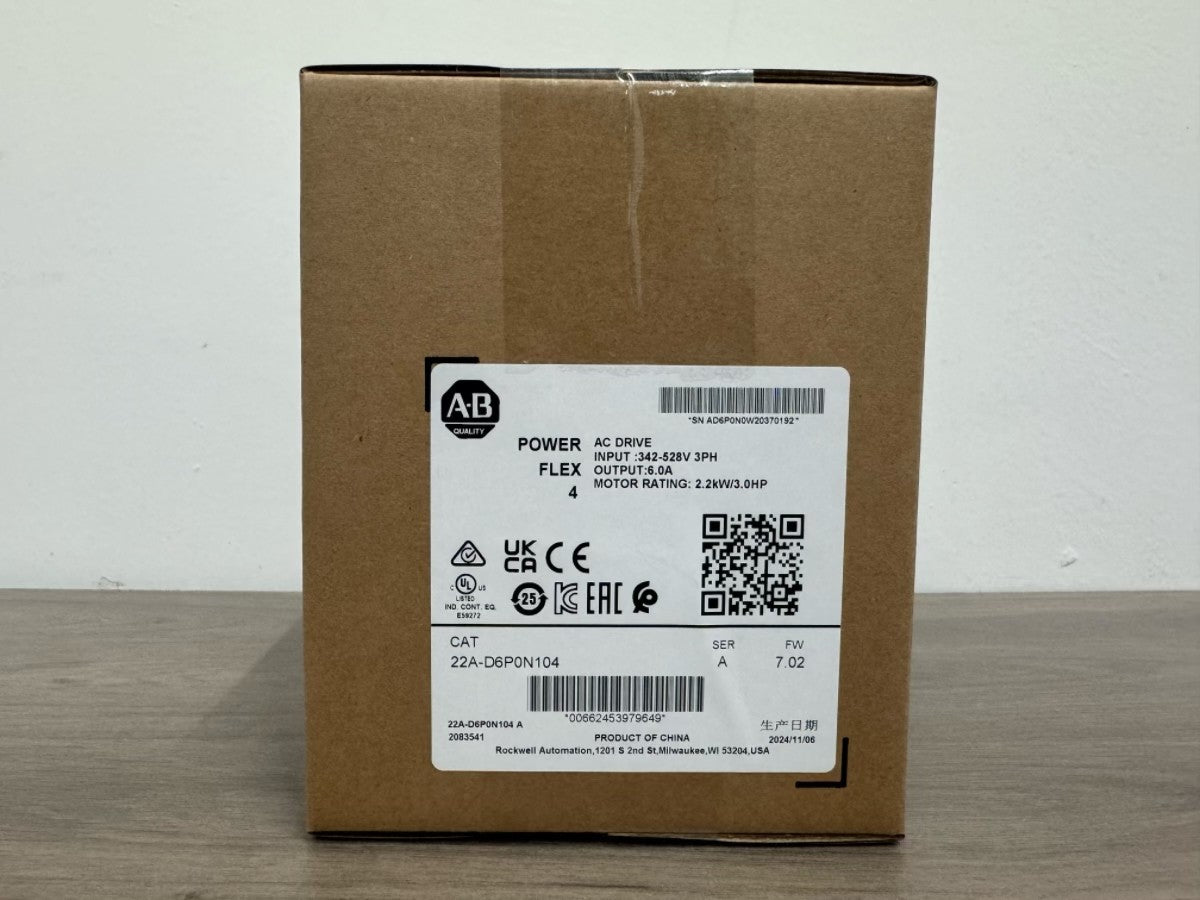

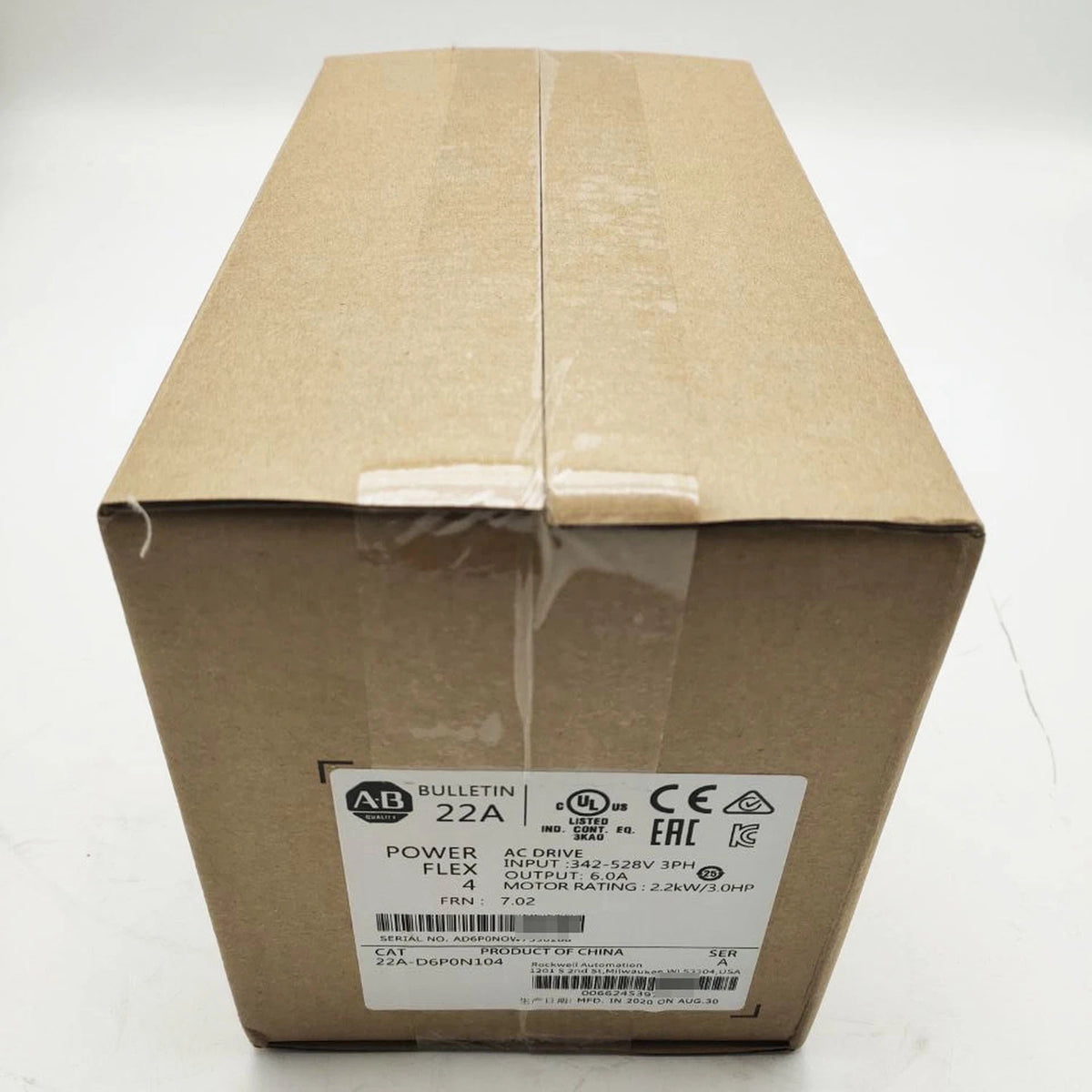

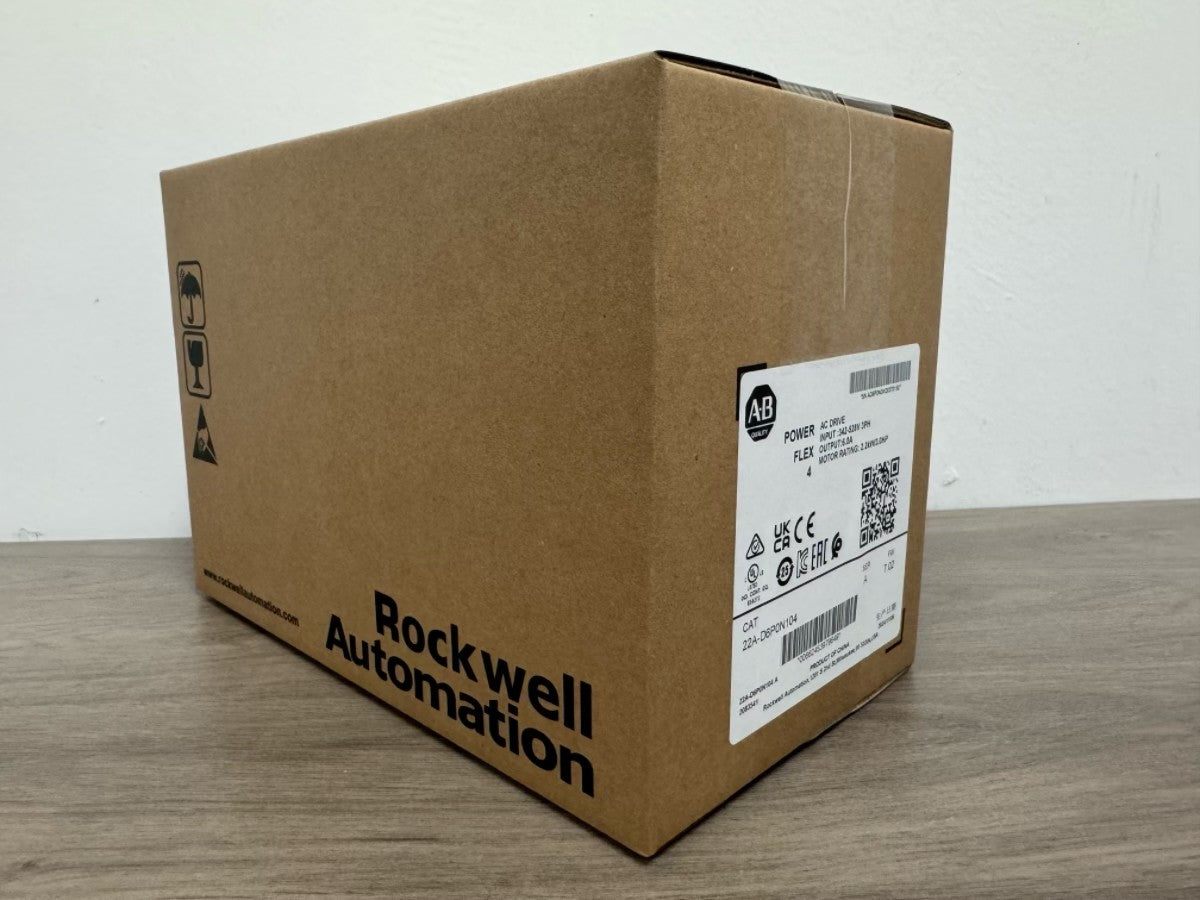

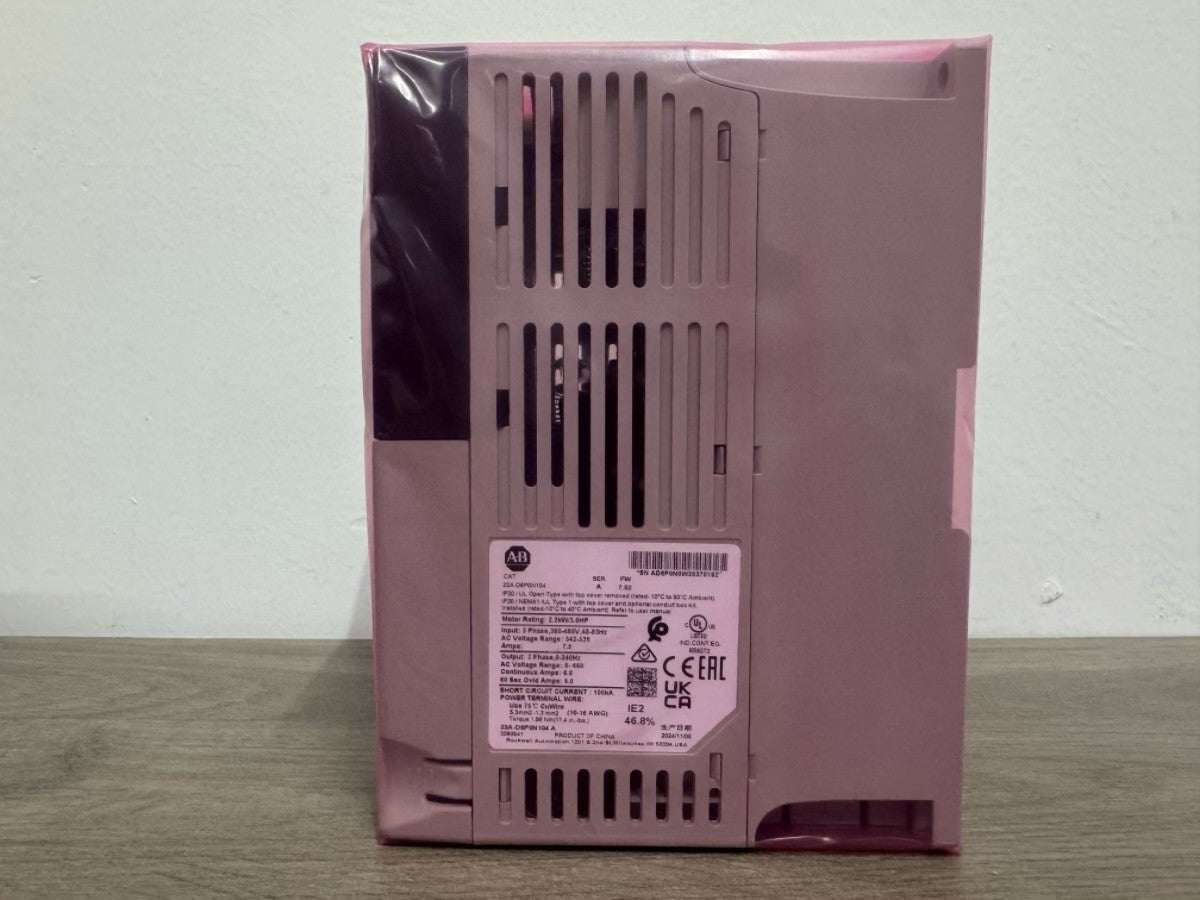

Product images for part identification
Allen-Bradley
Allen-Bradley 22A-D6P0N104 PowerFlex 4 AC Drive 2.2kW 480VAC
PRODUCT PRICE
USD
$522.17
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Allen-Bradley |
| Model Number | 22A-D6P0N104 |
| Product Category | AC Drive |
| Product Family | PowerFlex 4 |
| Rated Motor Power | 2.2 kW (3 HP) |
| Input Voltage | 380-480 VAC |
| Input Phase | 3-phase |
| Rated Output Current | 6.0 A |
| Output Voltage | 0-460 VAC, 3-phase |
| Frequency Rating | 50-60 Hz |
| Frame Size | Frame B |
| Enclosure Type | IP20 / NEMA UL Type Open |
| Mounting Type | Panel Mount |
| Operator Interface | Integral LED Display and Fixed Digital Keypad |
| Communication Interface | RS-485 |
| EMC Filter | No CE-Compliant Filter |
| Lifecycle Status | Discontinued June 30, 2025 |
| Manufacturer-Listed Engineering Replacement | 25A-D6P0N104 |
Key Features
380-480 VAC Input
Designed for three-phase AC input within the documented 380-480 VAC voltage range.
6.0 A Output Current
The published rated output current is 6.0 A for the specified drive configuration.

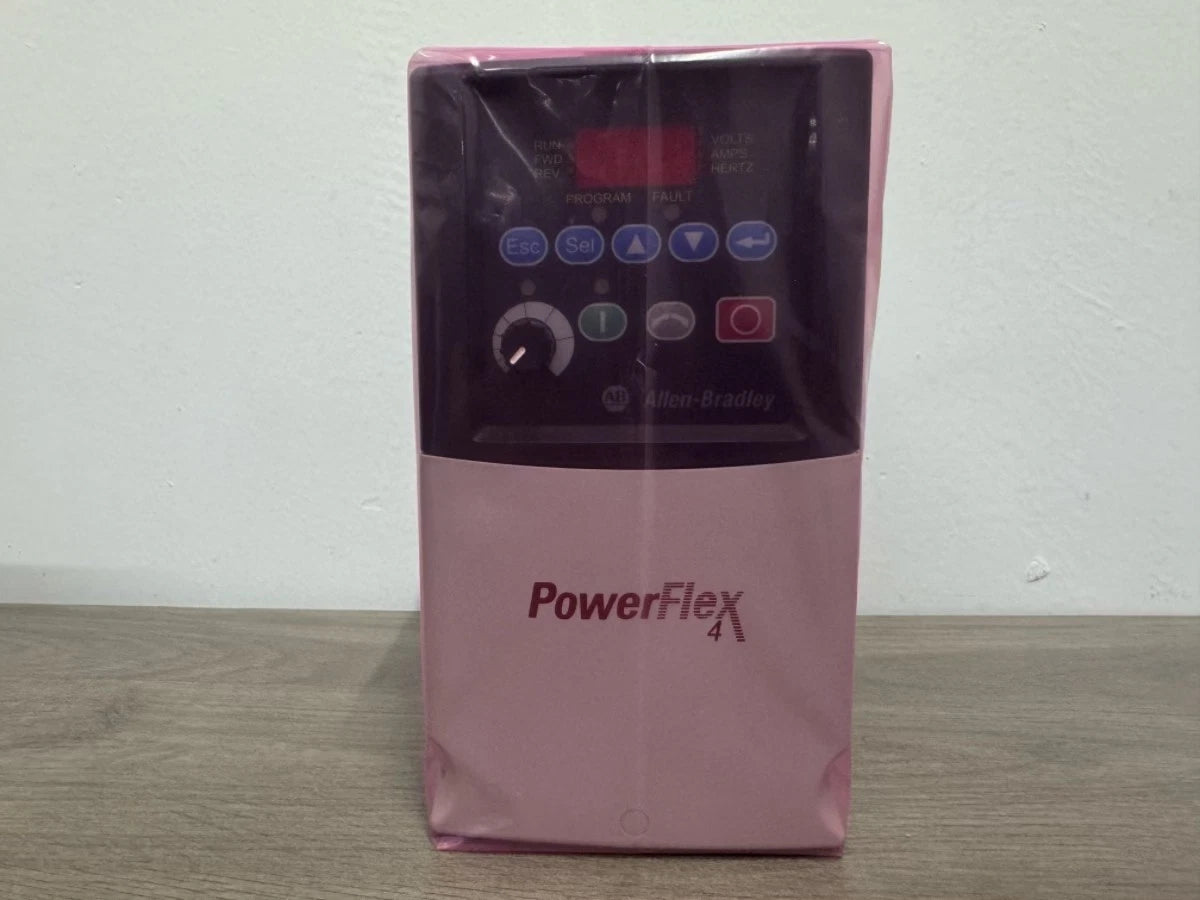

Integrated Keypad and LED Display
Includes a fixed digital keypad and LED display for local drive operation and parameter access.
RS-485 Communication
Includes an RS-485 communication interface for supported industrial control configurations.
Panel-Mount Design
Uses a Frame B enclosure with an IP20 / NEMA UL Type Open classification for suitable control-panel installations.
Applications
- Industrial motor speed control
- Conveyor drive systems
- Industrial pump applications
- Fan and blower motor control
- Packaging machinery
- Material handling equipment
- Factory automation control panels
- RS-485-connected motor control systems
Purchase Information
We support online purchase of the Allen-Bradley 22A-D6P0N104 AC Drive. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Allen-Bradley 22A-D6P0N104?
It is a PowerFlex 4 AC drive designed for three-phase motor control.
What is the rated motor power?
The rated motor power is 2.2 kW (3 HP).
What input voltage does this drive support?
The specified input voltage range is 380-480 VAC, three-phase.
What is the rated output current?
The manufacturer lists a rated output current of 6.0 A.
What is the output voltage range?
The documented output voltage range is 0-460 VAC, three-phase.
Does this drive include a keypad and display?
Yes. It has an integral LED display and fixed digital keypad.
Which communication interface is included?
The drive includes an RS-485 communication interface.
What enclosure type does this model use?
The published enclosure classification is IP20 / NEMA UL Type Open, with a Frame B design for panel mounting.
Is the 22A-D6P0N104 still in production?
Rockwell Automation lists this PowerFlex 4 model as discontinued effective June 30, 2025.
Does the manufacturer list an engineering replacement?
Rockwell Automation identifies catalog number 25A-D6P0N104 as the engineering replacement. Verify application requirements and technical differences before selecting another drive.
What should be checked before ordering?
Verify the complete catalog number, motor power, output current, input voltage, enclosure requirements, communication interface and lifecycle status.
Can this drive be used in an existing motor control system?
Check the motor nameplate, supply voltage, current requirements, control wiring, communication settings and installation conditions against the equipment documentation before use.
