PROFIBUS DP Connectivity
Designed for connecting PROFIBUS participants to PROFIBUS bus cables, supporting transmission rates from 9.6 kbit/s up to 12 Mbit/s.
SIEMENS

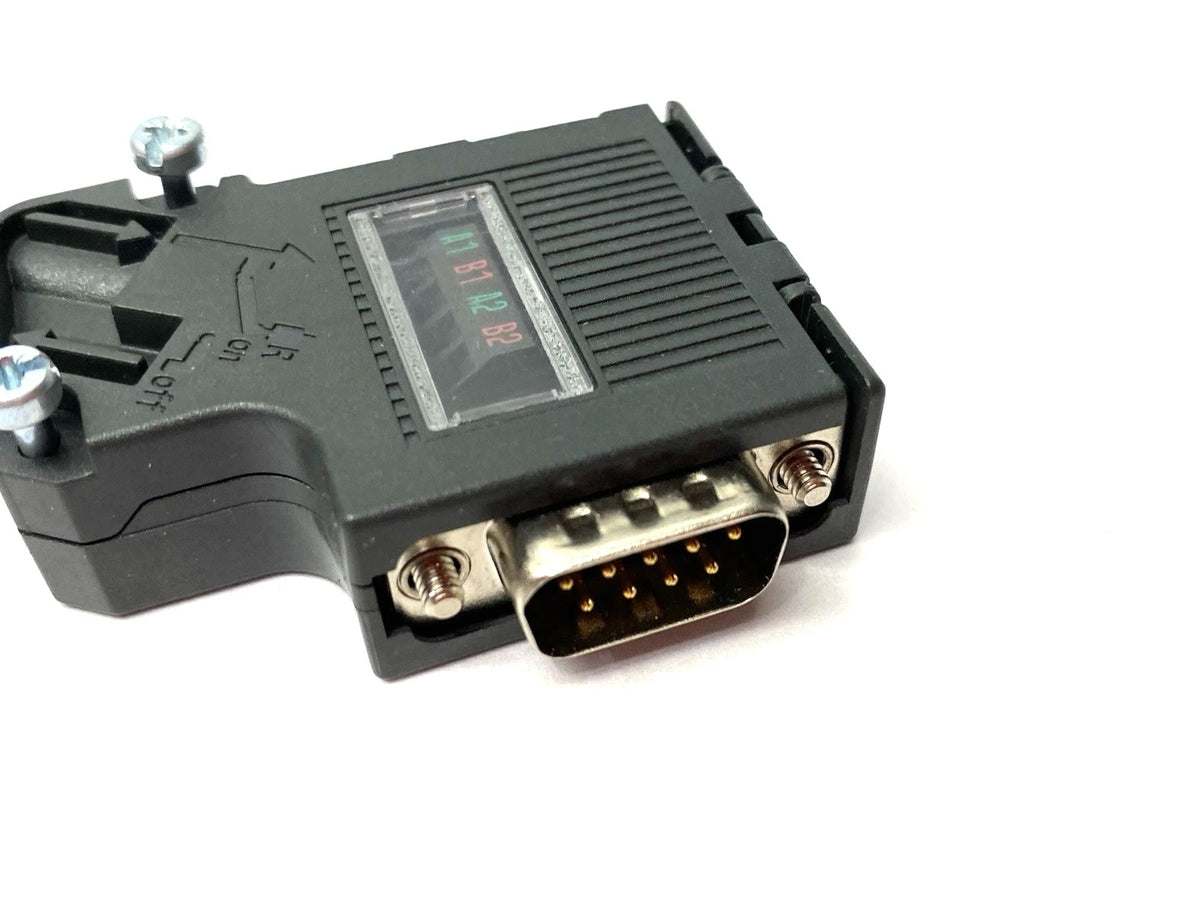

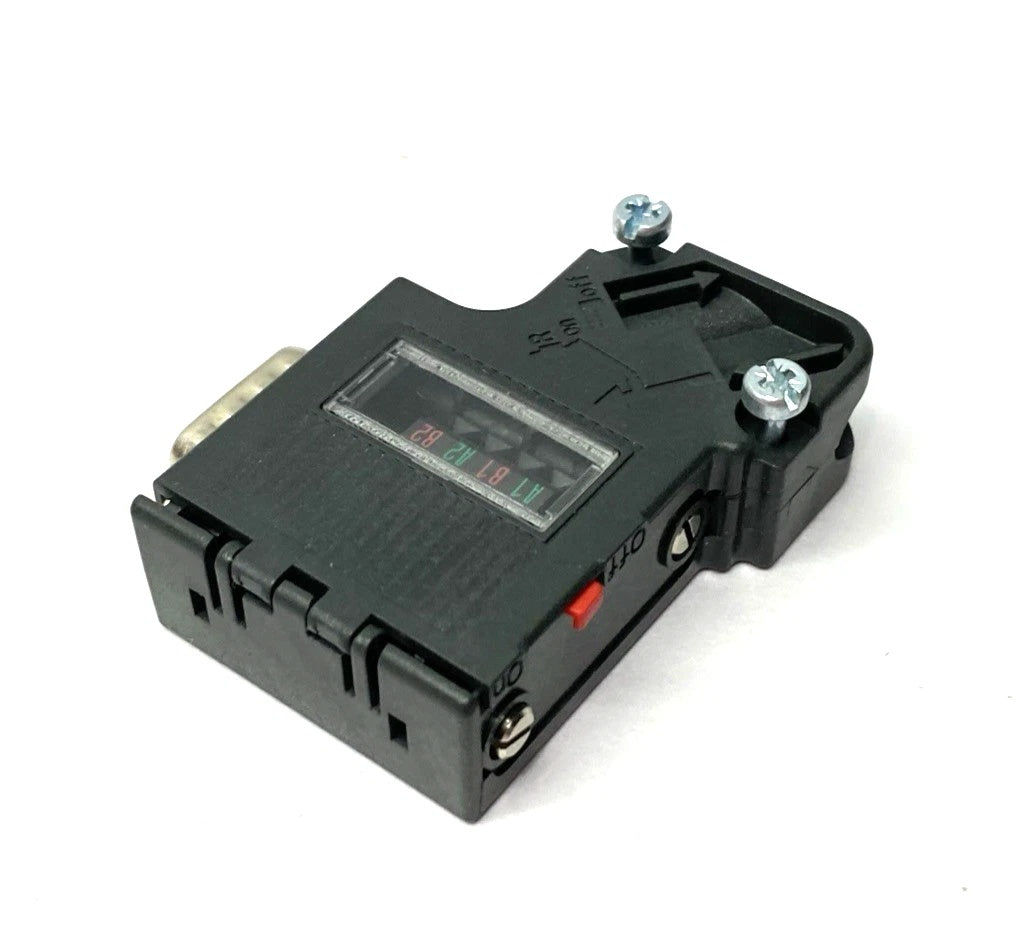

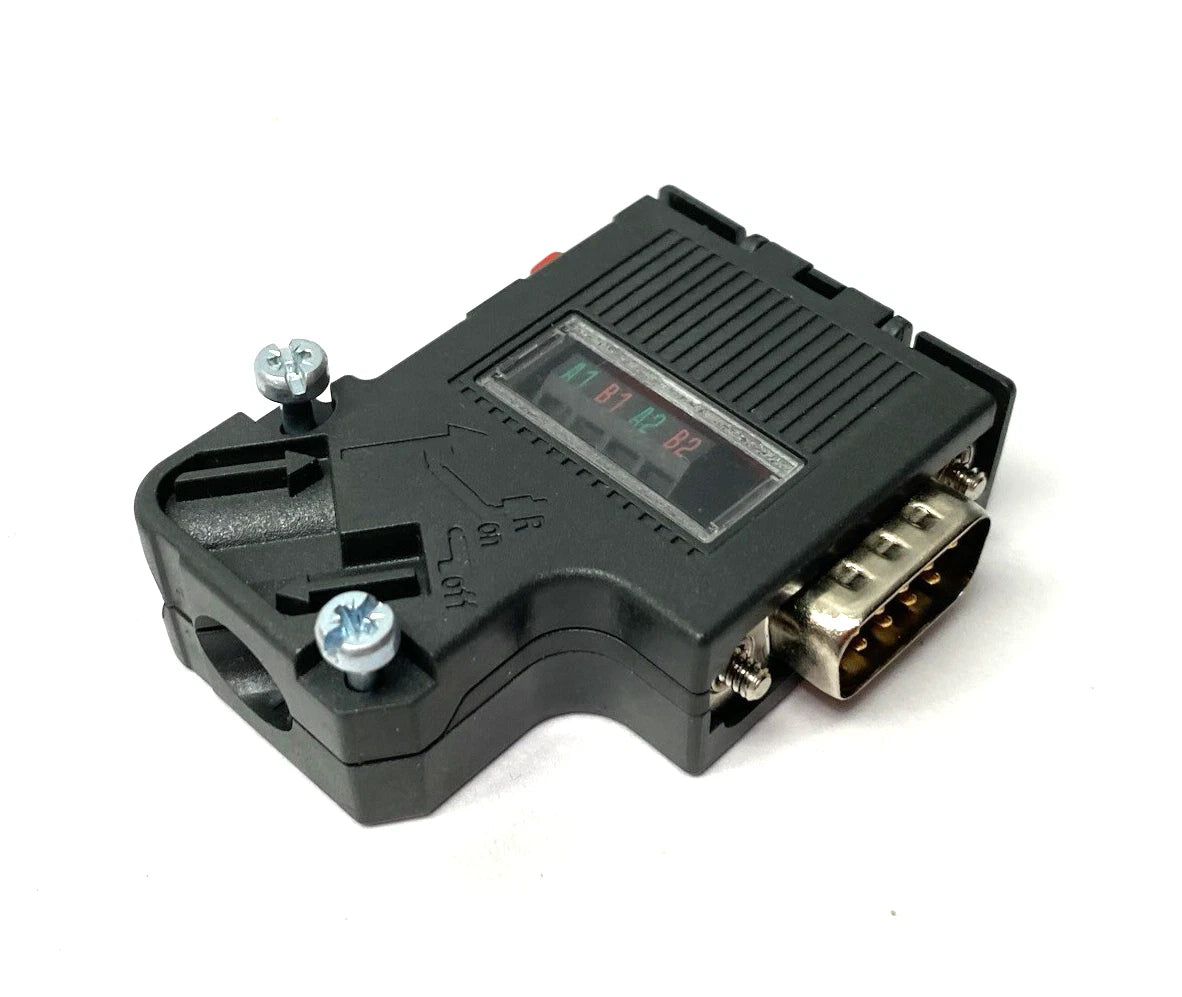

SIEMENS 6ES7972-0BA42-0XA0 Bus Connector PROFIBUS DP 12MBit/s
$16.21
Available
PRODUCT GALLERY
01 / 4
Product images for part identification
SIEMENS
SIEMENS 6ES7972-0BA42-0XA0 Bus Connector PROFIBUS DP 12MBit/s
PRODUCT PRICE
USD
$16.21
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7972-0BA42-0XA0 |
| Product Category | Bus Connector PROFIBUS DP 12MBit/s |
| Product Family | SIMATIC DP |
| Product Type | PROFIBUS Bus Connector, RS 485 |
| Transmission Rate | 9.6 kbit/s to 12 Mbit/s |
| Cable Outlet Angle | 35 degrees |
| Electrical Connections (PROFIBUS Cables) | 2 |
| Connection for Network Components | 1 x 9-pin Sub-D connector |
| Terminating Resistor | Integrated, switchable via sliding switch, with isolating function |
| PG Interface | Without PG socket |
| Housing Material | Plastic |
| Dimensions (W x H x D) | 15.8 mm x 54 mm x 39.5 mm |
| Net Weight | 29 g |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Degree of Protection | IP20 |
| RoHS Compliance | Yes |
Key Features
35-Degree Cable Outlet
The inclined cable outlet facilitates wiring in control cabinets where space constraints affect connector routing.
Integrated Terminating Resistor
An integrated terminating resistor with isolating function is switchable via a sliding switch, supporting proper bus termination.
Compact Plastic Housing
The connector measures 15.8 mm in width, 54 mm in height, and 39.5 mm in depth, with a net weight of approximately 29 g.
Operating Temperature Range
Rated for operation from -25°C to +60°C, with storage and transport tolerance from -40°C to +70°C.
Applications
- PROFIBUS DP network wiring and termination
- Connection of PROFIBUS participants to bus cables
- SIMATIC DP system integration
- Industrial communication network maintenance
- Control cabinet PROFIBUS cabling with angled outlet requirements
- Bus segment termination in PROFIBUS DP installations
Purchase Information
We support online purchase of the SIEMENS 6ES7972-0BA42-0XA0 Bus Connector PROFIBUS DP 12MBit/s. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6ES7972-0BA42-0XA0? The 6ES7972-0BA42-0XA0 is a SIMATIC DP PROFIBUS bus connector with an RS 485 interface and a 35-degree cable outlet.
What is the maximum transmission rate? The connector supports PROFIBUS transmission rates from 9.6 kbit/s up to 12 Mbit/s.
Does it have a PG interface? No, the 6ES7972-0BA42-0XA0 does not have a PG socket.
Does it include a terminating resistor? Yes, it has an integrated terminating resistor with isolating function, switchable via a sliding switch.
What is the cable outlet angle? The cable outlet is at a 35-degree angle.
How many PROFIBUS cable connections does it provide? It provides two electrical connections for PROFIBUS cables and one 9-pin Sub-D connection for network components or terminal devices.
What are the dimensions and weight? The dimensions are 15.8 mm x 54 mm x 39.5 mm (W x H x D), and the net weight is 29 g.
What is the operating temperature range? The operating temperature range is -25°C to +60°C, with storage tolerance from -40°C to +70°C.
What is the degree of protection? The connector has an IP20 degree of protection.
What should be checked before ordering? Confirm the complete 6ES7972-0BA42-0XA0 catalog number, the required cable outlet orientation, the PROFIBUS DP network rate, and whether a PG interface is needed for the application.
