3-Phase Input
The SITOP Modular power supply accepts a three-phase AC input in the 400 VAC to 500 VAC nominal range.
SIEMENS

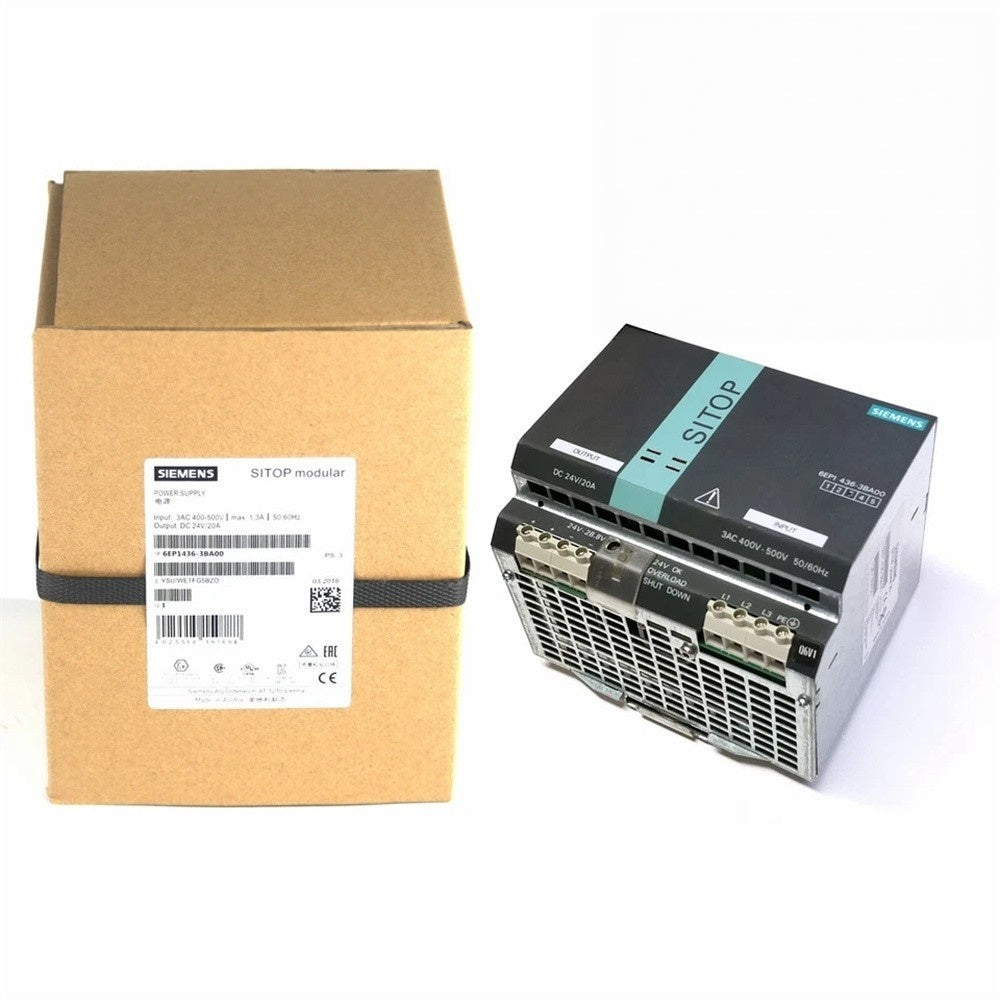

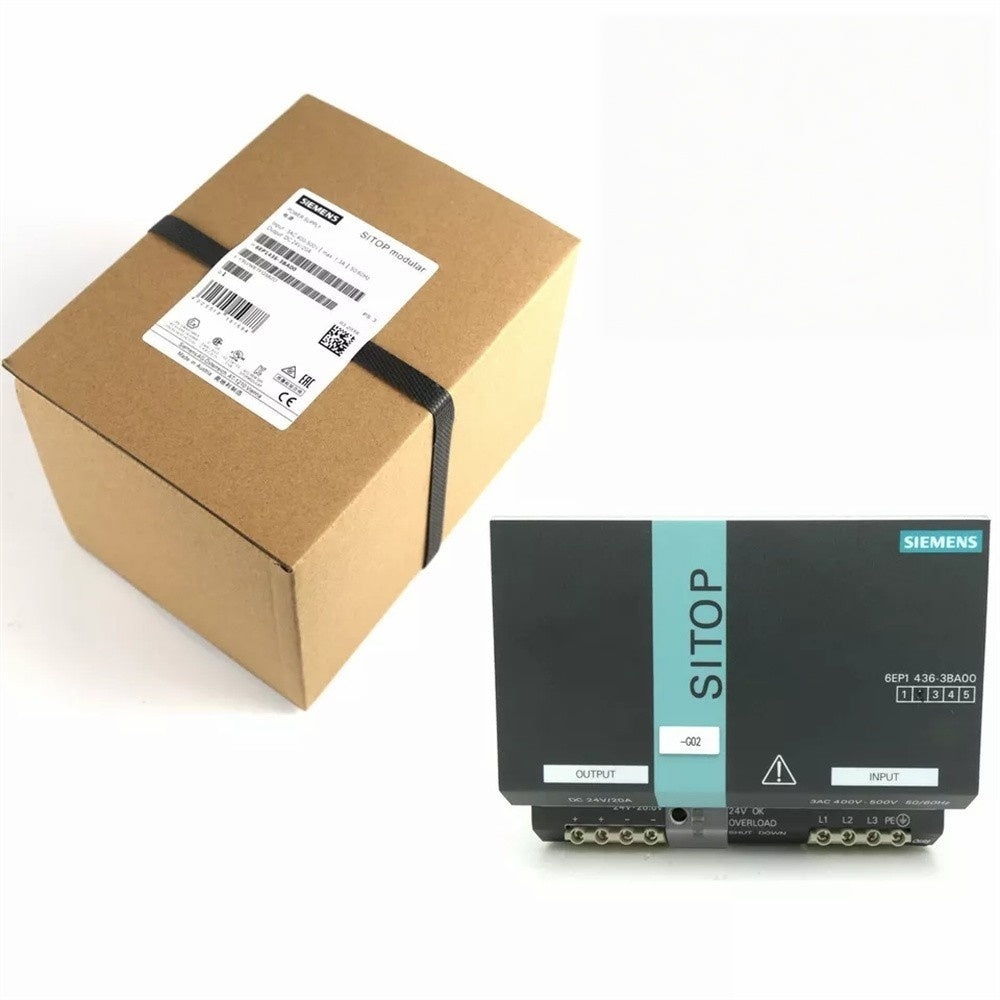

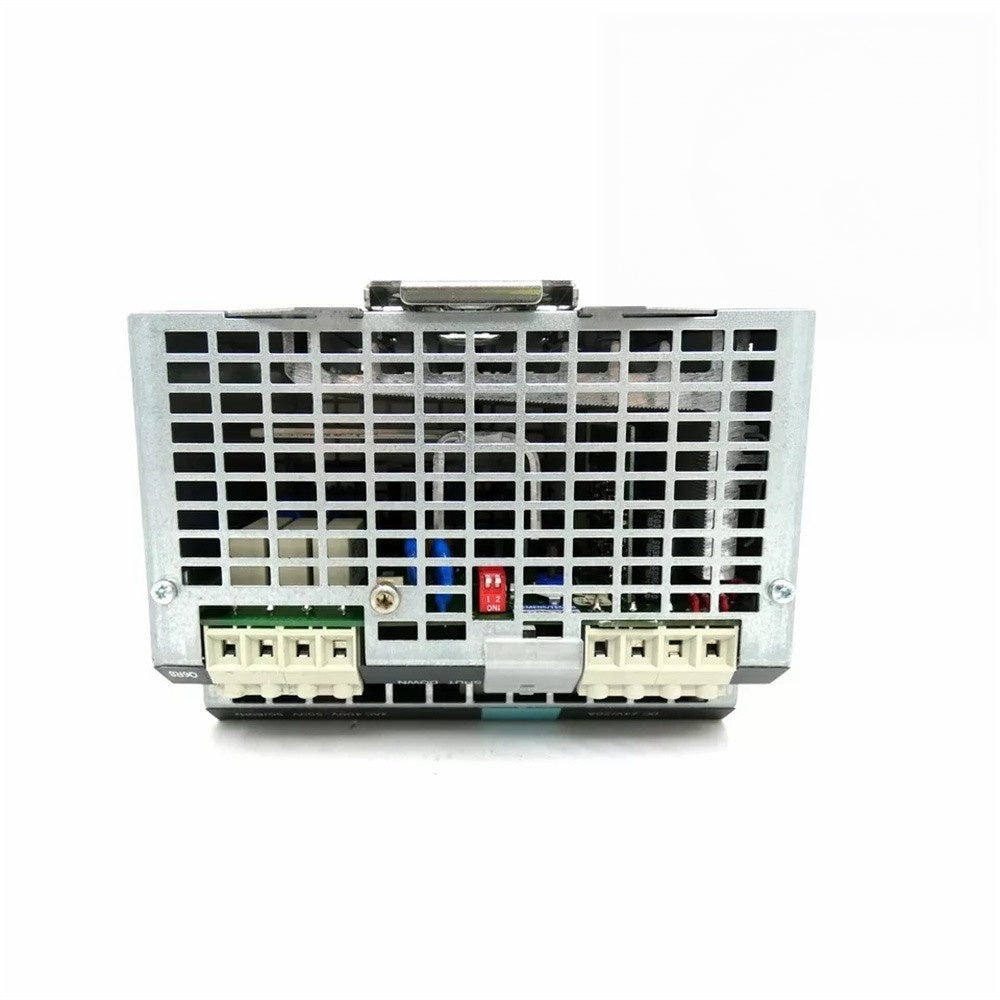

SIEMENS 6EP1436-3BA00 Power Supply 400-500VAC 24VDC 20A
$179.96
Available
PRODUCT GALLERY
01 / 4
Product images for part identification
SIEMENS
SIEMENS 6EP1436-3BA00 Power Supply 400-500VAC 24VDC 20A
PRODUCT PRICE
USD
$179.96
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6EP1436-3BA00 |
| Product Category | Power Supply |
| Product Family | SITOP Modular |
| Input Voltage | 400 VAC to 500 VAC, 3-phase |
| Input Voltage Range | 320 VAC to 550 VAC |
| Mains Frequency | 50/60 Hz |
| Output Voltage | 24 VDC |
| Output Voltage Adjustable | 24 VDC to 28.8 VDC |
| Output Current | 20 A |
| Output Power | 480 W |
| Input Current at 400 VAC | 1.1 A |
| Input Current at 500 VAC | 0.9 A |
| Efficiency | Approximately 91% |
Key Features
24 VDC / 20 A Output
It provides a stabilized 24 VDC output at 20 A, delivering up to 480 W of output power.
Adjustable Output Voltage
The output voltage is adjustable from 24 VDC to 28.8 VDC via potentiometer.
Wide Input Range
The input voltage range extends from 320 VAC to 550 VAC for tolerance to supply variations.
50/60 Hz Mains Frequency
The power supply operates on 50/60 Hz mains frequency with a specified range of 47 to 63 Hz.

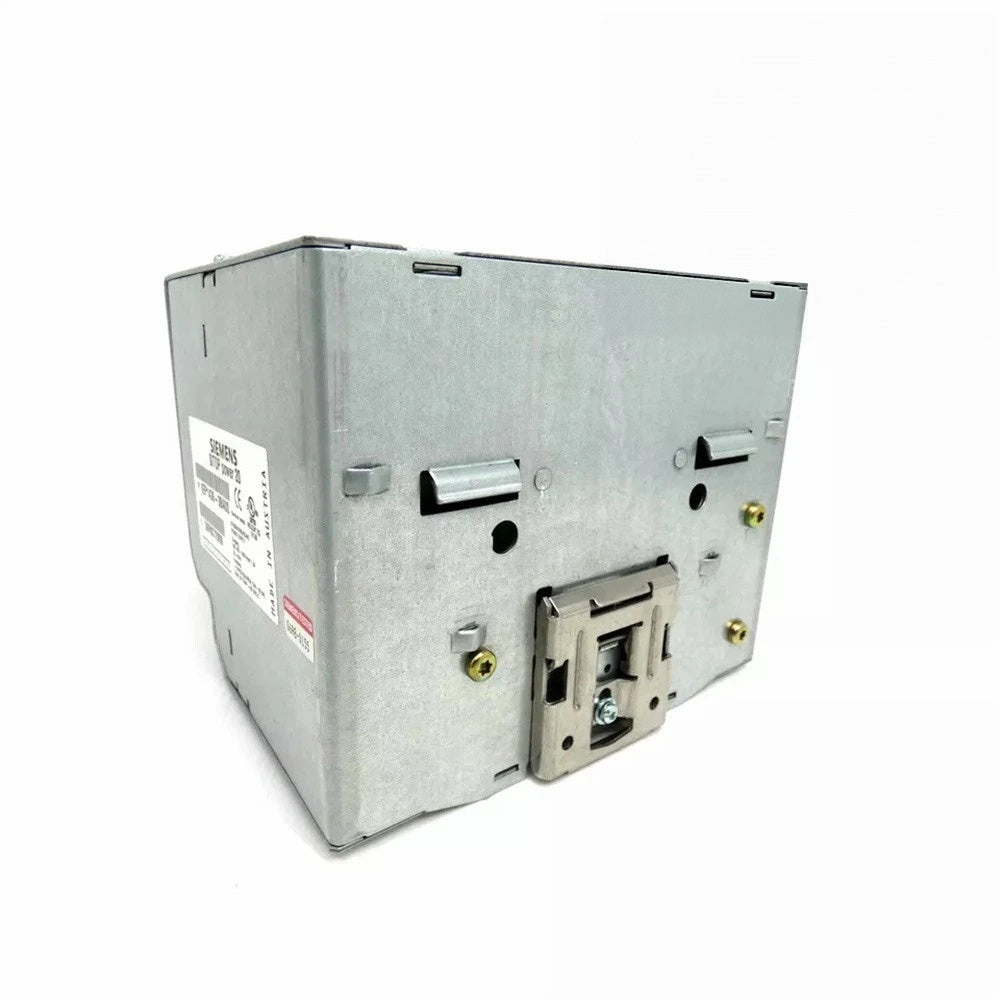

DIN Rail Mounting
The SITOP Modular format is designed for DIN rail installation in industrial control cabinets.
Applications
- Industrial control cabinet 24 VDC power distribution
- PLC and I/O system power supply
- Three-phase machine and panel power conversion
- Automation system 24 VDC rail generation
- Process control and instrumentation power
- Factory automation power infrastructure
- Control panel retrofit power supply replacement
- DIN rail power supply integration
Purchase Information
We support online purchase of the SIEMENS 6EP1436-3BA00 Power Supply. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6EP1436-3BA00? The 6EP1436-3BA00 is a SITOP Modular three-phase power supply with a 24 VDC / 20 A output.
What input voltage does the power supply accept? It accepts a 3-phase AC input with a nominal range of 400 VAC to 500 VAC and an extended range of 320 VAC to 550 VAC.
What is the output voltage and current? The output is 24 VDC at 20 A, providing up to 480 W.
Is the output voltage adjustable? Yes, the output voltage is adjustable from 24 VDC to 28.8 VDC via potentiometer.
What is the mains frequency range? The power supply operates on 50/60 Hz, with a specified range of 47 to 63 Hz.
What is the input current at 400 VAC? The input current at 400 VAC is 1.1 A.
What is the input current at 500 VAC? The input current at 500 VAC is 0.9 A.
What is the output power rating? The output power rating is 480 W.
Need help confirming a model?
Send us your part number and technical requirements.
