24 V DC / 40 A Output
Provides a regulated 24 V DC output with a rated output current of 40 A and an output power of 960 W.
SIEMENS
SIEMENS 6EP1337-3BA00 Power Supply 120-230VAC 24VDC 10A
$321.10
Available
PRODUCT GALLERY
01 / 4
Product images for part identification
SIEMENS
SIEMENS 6EP1337-3BA00 Power Supply 120-230VAC 24VDC 10A
PRODUCT PRICE
USD
$321.10
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6EP1337-3BA00 |
| Product Category | Power Supply |
| Product Family | SITOP PSU100M |
| Input Voltage | 120/230 V AC (85…132 V / 176…264 V) |
| Line Frequency | 47…63 Hz |
| Output Voltage | 24 V DC (adjustable 24…28.8 V) |
| Output Current | 40 A |
| Output Power | 960 W |
| Efficiency at Rated Load | Approx. 88 % |
| Power Loss at Rated Load | Approx. 131 W |
| Input Current at 120 V AC | 15 A |
| Input Current at 230 V AC | 8 A |
| Output Voltage Tolerance | Controlled, isolated DC voltage |
| Short-Circuit Proof | Yes |
| Mounting | DIN rail |
| Dimensions (W x H x D) | 240 x 125 x 121 mm |
| Weight | Approx. 2.9 kg |
Key Features
120/230 V AC Input
Accepts a single-phase AC input of 120 V or 230 V, with input ranges of 85…132 V and 176…264 V respectively.
Adjustable Output Voltage
The output voltage is adjustable from 24 V to 28.8 V via a potentiometer for application-specific voltage settings.
Short-Circuit Proof Output
The output is short-circuit proof and stable at no load, supporting reliable operation under fault conditions.
88 % Efficiency
Typical efficiency at rated load is approximately 88 %, with a rated-load power loss of approximately 131 W.

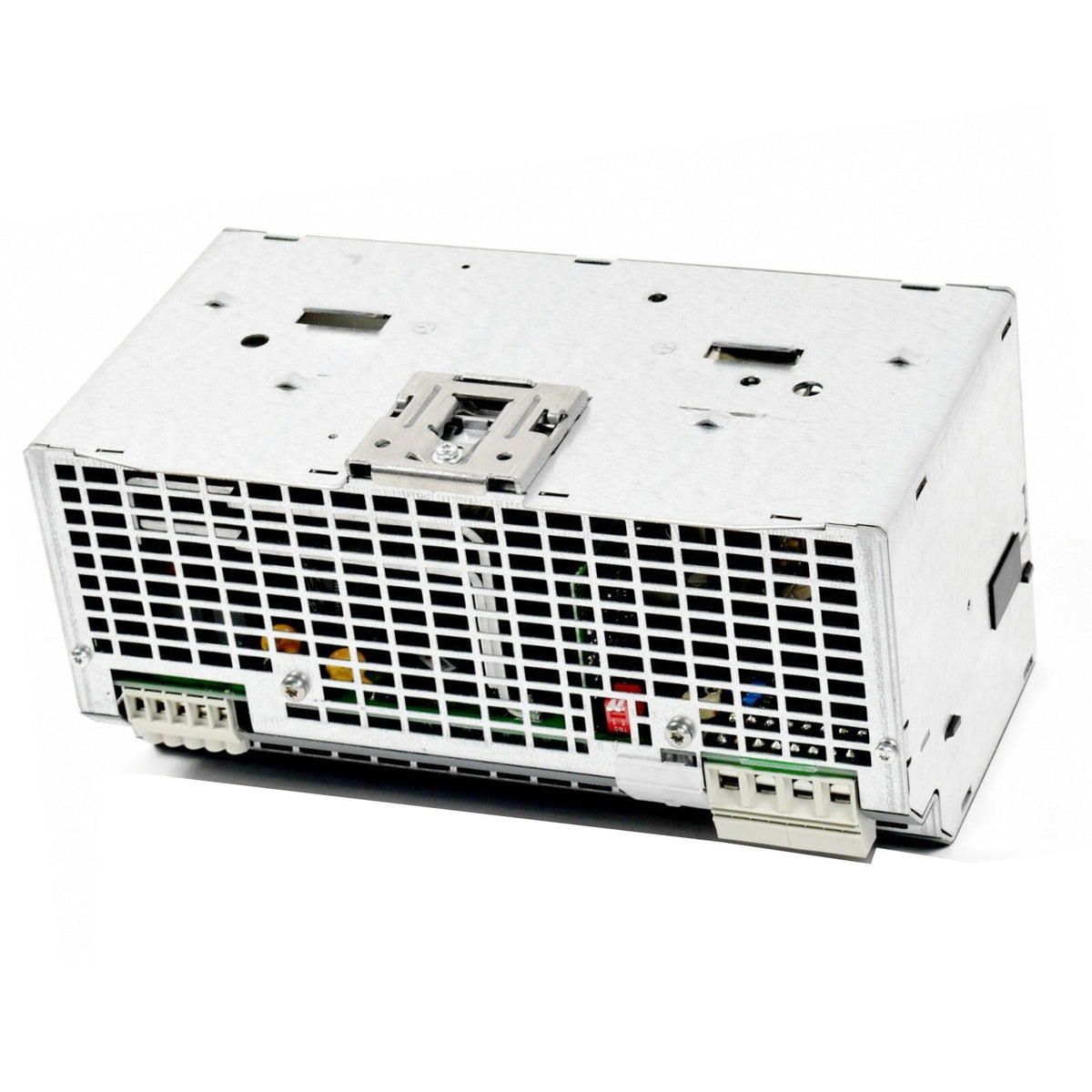

DIN Rail Mounting
Housed in a DIN rail mountable enclosure measuring 240 x 125 x 121 mm and weighing approximately 2.9 kg.
Applications
- Industrial control cabinet 24 V DC power distribution
- Power supply for PLC, I/O, and sensor systems
- Machine and plant automation power requirements
- DIN rail power systems in manufacturing environments
- Process control systems requiring regulated 24 V DC
- Building automation and infrastructure control panels
- Test benches and laboratory equipment power supplies
- Retrofit and maintenance of existing 24 V DC power architectures
Purchase Information
We support online purchase of the SIEMENS 6EP1337-3BA00 Power Supply. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6EP1337-3BA00? The 6EP1337-3BA00 is a SITOP PSU100M stabilized power supply with a 120/230 V AC input and a 24 V DC / 40 A output.
What is the output current of the 6EP1337-3BA00? The rated output current is 40 A, not 10 A. The corresponding output power is 960 W.
What input voltage does the power supply accept? It accepts a single-phase AC input of 120 V or 230 V, with input ranges of 85…132 V AC and 176…264 V AC.
Is the output voltage adjustable? Yes, the 24 V DC output voltage is adjustable from 24 V to 28.8 V via a potentiometer.
Is the output short-circuit proof? Yes, the output is short-circuit proof and stable at no load.
What is the efficiency of the power supply? The efficiency at rated output voltage and rated output current is approximately 88 %.
What is the input current at 230 V AC? The input current at rated 230 V AC input voltage is 8 A.
What are the dimensions and weight? The enclosure dimensions are 240 mm in width, 125 mm in height, and 121 mm in depth; the approximate weight is 2.9 kg.
How is the 6EP1337-3BA00 mounted? It is designed for DIN rail mounting.
What is the power loss at rated load? The power loss at rated output voltage and rated output current is approximately 131 W.
Can the 6EP1337-3BA00 be used for PLC and I/O power? Its 24 V DC regulated output is suitable for industrial control systems that require a 24 V DC power source, after verifying the total load current and wiring requirements.
What should be checked before ordering? Check the complete catalog number 6EP1337-3BA00, the required output current (40 A rated), the AC input voltage available at the installation, the adjustable output voltage range, and the DIN rail space and wiring requirements.
