8 Digital Inputs
The module provides eight 24 VDC digital inputs with sink/source configurability.
SIEMENS
SIEMENS 6ES7223-1PH22-0XA0 Module 24VDC 8 DI 8 Relay Outputs
$42.17
Available
PRODUCT GALLERY
01 / 1

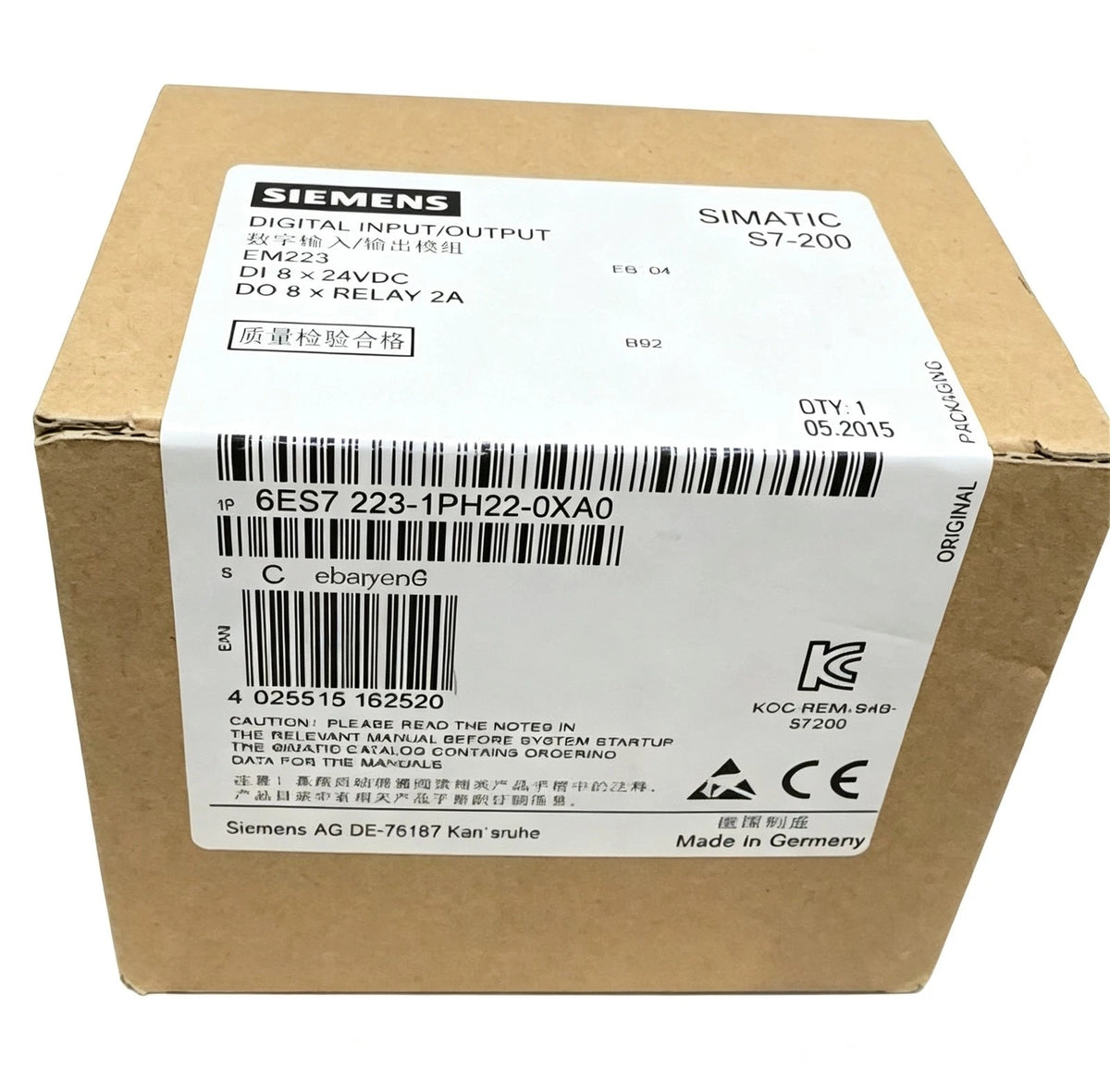

Product images for part identification
SIEMENS
SIEMENS 6ES7223-1PH22-0XA0 Module 24VDC 8 DI 8 Relay Outputs
PRODUCT PRICE
USD
$42.17
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7223-1PH22-0XA0 |
| Product Category | Digital I/O Module |
| Product Family | SIMATIC S7-200 |
| Module Type | EM 223 Digital I/O |
| Number of Digital Inputs | 8 |
| Input Voltage | 24 VDC |
| Input Type | Sink/Source |
| Number of Digital Outputs | 8 |
| Output Type | Relay |
| Output Current per Channel | 2 A |
| Load Voltage L+ | 24 VDC |
| Load Voltage L1 | 24 VAC to 230 VAC |
| Dimensions (W x H x D) | 71.2 x 80 x 62 mm |
| Weight | Approximately 300 g |
Key Features
8 Relay Outputs
Eight relay outputs are rated at 2 A per channel for switching a variety of industrial loads.
AC/DC Load Voltage
Outputs support a 24 VDC load voltage on L+ and a 24 VAC to 230 VAC load voltage on L1.
S7-200 System Compatibility
The EM 223 module is designed for use with SIMATIC S7-22X CPU systems.
Compact Dimensions
The module measures 71.2 mm in width, 80 mm in height, and 62 mm in depth for control cabinet integration.
Plug-in I/O Terminals
Plug-in I/O terminals support wiring and maintenance in S7-200 I/O expansion applications.
Applications
- SIMATIC S7-200 digital I/O expansion
- Relay-based switching of industrial loads
- Discrete input signal acquisition from sensors and switches
- Control of contactors, solenoids, and indicator lamps
- Small machine and panel automation
- Process control cabinet I/O integration
- Existing S7-200 system maintenance
- Industrial automation retrofit projects
Purchase Information
We support online purchase of the SIEMENS 6ES7223-1PH22-0XA0 Digital I/O Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6ES7223-1PH22-0XA0? The 6ES7223-1PH22-0XA0 is a SIMATIC S7-200 EM 223 digital I/O module with 8 digital inputs and 8 relay outputs.
How many digital inputs does the module have? It provides eight 24 VDC digital inputs with sink/source configuration.
How many relay outputs does the module have? It provides eight relay outputs, each rated at 2 A.
What load voltage is supported by the relay outputs? The outputs support 24 VDC on L+ and 24 VAC to 230 VAC on L1.
What is the input voltage rating? The digital inputs are rated for 24 VDC.
What are the module dimensions? The dimensions are 71.2 mm in width, 80 mm in height, and 62 mm in depth.
What is the approximate weight? The approximate weight is 300 g.
Which CPU systems is this module intended for? The module is intended for SIMATIC S7-22X CPU systems.
What is the maximum current per output channel? The rated output current is 2 A per channel.
Need help confirming a model?
Send us your part number and technical requirements.
