Compact CPU with Integrated I/O
The CPU 314C-2 DP combines central processing with 24 DI, 16 DO, 4 AI, 2 AO, and 1 Pt100 input in a compact S7-300 module.
SIEMENS
SIEMENS 6ES7314-6CG03-0AB0 PLC Module 24VDC 128KB
$241.96
Available
PRODUCT GALLERY
01 / 1

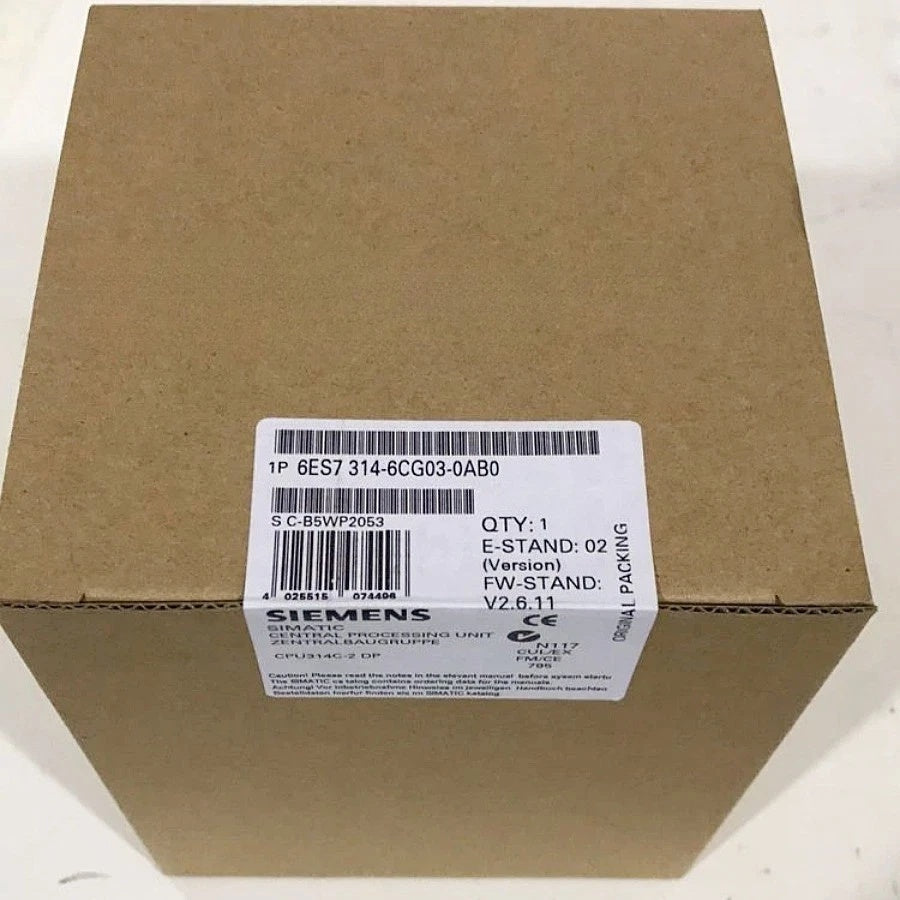

Product images for part identification
SIEMENS
SIEMENS 6ES7314-6CG03-0AB0 PLC Module 24VDC 128KB
PRODUCT PRICE
USD
$241.96
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7314-6CG03-0AB0 |
| Product Category | PLC Module |
| Product Family | SIMATIC S7-300 |
| CPU Type | CPU 314C-2 DP Compact CPU |
| Work Memory | 96 KB |
| Integrated Digital Inputs | 24 DI |
| Integrated Digital Outputs | 16 DO |
| Integrated Analog Inputs | 4 AI |
| Integrated Analog Outputs | 2 AO |
| Integrated Resistance Input | 1 Pt100 |
| High-Speed Counters | 4 counters, 60 kHz |
| Interface | MPI, integrated DP interface |
| Rated Supply Voltage | 24 VDC |
| Firmware Version | V2.6 |
| Processing Time | 0.1 ms per 1000 instructions |
| Max Configuration | Up to 31 modules |
Key Features
96 KB Work Memory
The integrated 96 KB work memory supports user programs for compact automation control tasks.
Integrated DP Interface
An integrated PROFIBUS DP interface supports master or slave communication in S7-300 architectures.
4 High-Speed Counters
Four counters operate at up to 60 kHz for fast counting and measuring applications.
24 VDC Integrated Power Supply
The CPU includes an integrated 24 VDC power supply for direct connection to standard industrial control power.
Multi-Tier Configuration
The CPU supports multi-tier configuration with up to 31 modules for system expansion.
Applications
- Compact S7-300 automation control
- Machinery control with integrated digital and analog I/O
- PROFIBUS DP networked control systems
- Counting and measuring applications with incremental encoders
- Positioning tasks in industrial automation
- Process control and sequence automation
- Control cabinet PLC integration
- S7-300 system maintenance and expansion
Purchase Information
We support online purchase of the SIEMENS 6ES7314-6CG03-0AB0 PLC Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6ES7314-6CG03-0AB0? The 6ES7314-6CG03-0AB0 is a SIMATIC S7-300 CPU 314C-2 DP compact CPU with integrated I/O and MPI/DP communication.
How much work memory does the CPU have? The CPU has 96 KB of work memory.
What integrated I/O does the CPU provide? It provides 24 digital inputs, 16 digital outputs, 4 analog inputs, 2 analog outputs, and 1 Pt100 input.
How many high-speed counters are integrated? Four high-speed counters are integrated, operating at up to 60 kHz.
What communication interface does the CPU have? The CPU has MPI and an integrated DP interface.
What is the rated supply voltage? The rated supply voltage is 24 VDC with an integrated power supply.
What is the processing time? The processing time is 0.1 ms per 1000 instructions.
How many modules can be configured? The CPU supports multi-tier configuration with up to 31 modules.
Does the CPU require a Micro Memory Card? Yes, a Micro Memory Card is required for operation.
