8 Digital Inputs with Analog Capability
Provides 8 digital inputs, of which 4 can be configured for analog use with a 0…10 V signal range.
SIEMENS
SIEMENS 6ED1052-1MD08-0BA0 Module 24VDC 8 DI 4 Relay Outputs
$120.45
Available
PRODUCT GALLERY
01 / 1

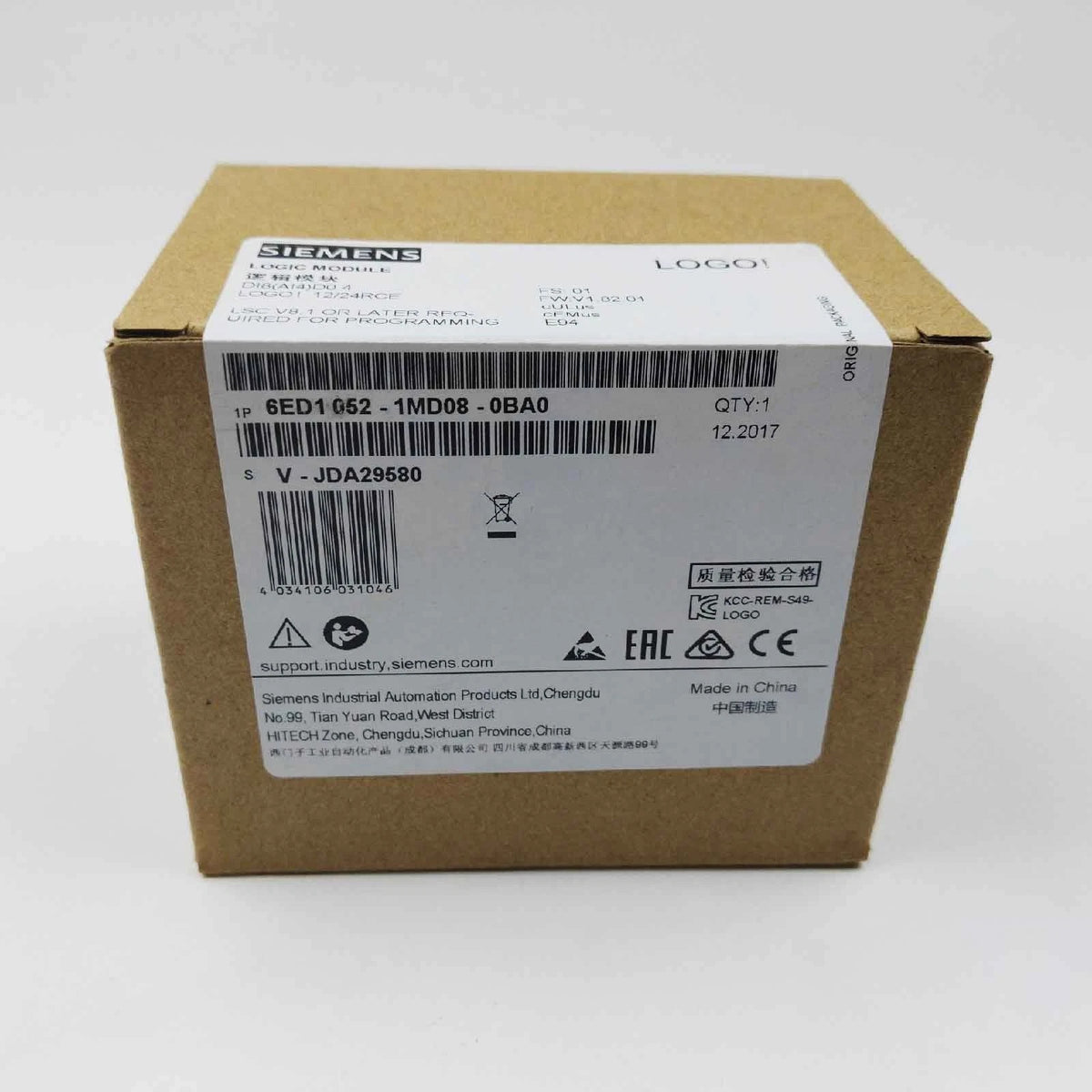

Product images for part identification
SIEMENS
SIEMENS 6ED1052-1MD08-0BA0 Module 24VDC 8 DI 4 Relay Outputs
PRODUCT PRICE
USD
$120.45
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ED1052-1MD08-0BA0 |
| Product Category | Module |
| Product Family | LOGO! 12/24RCE |
| Module Type | Logic module with display |
| Supply Voltage | 12/24 V DC |
| Permissible Supply Range | 10.8…28.8 V DC |
| Number of Digital Inputs | 8 (4 configurable as analog 0…10 V) |
| Number of Digital Outputs | 4 (Relay) |
| Output Current per Channel | 10 A (max., 0…55 °C) |
| Relay Contact Rating (Resistive) | 10 A |
| Relay Contact Rating (Inductive) | 3 A |
| Short-Circuit Protection | No; external fusing required |
| Memory | 400 blocks |
| Communication Interface | Ethernet, integrated web server |
| Data Logging | Datalog, standard microSD card |
| Degree of Protection | IP20 |
| Operating Temperature | -20…+55 °C |
| Dimensions (W x H x D) | 71.5 x 90 x 60 mm |
| Mounting | 35 mm DIN rail |
Key Features
4 Relay Outputs
Four relay outputs are available, with a maximum output current of 10 A per channel over the 0…55 °C range.
12/24 V DC Supply
Operates from a nominal 12 V or 24 V DC supply, with a permissible range from 10.8 V to 28.8 V DC.
Integrated Ethernet and Web Server
Includes an Ethernet interface and an integrated web server for programming, monitoring, and user-defined web pages.
400-Block Memory
The logic module supports up to 400 blocks for control program implementation.
microSD Data Logging
Supports a standard microSD card for Datalog data recording and project storage.
Applications
- Small-scale logic control and automation tasks
- Digital and analog signal acquisition in machine control
- Relay output control for pumps, valves, and contactors
- Distributed control panels with Ethernet connectivity
- Data logging for process monitoring and maintenance
- Building and HVAC control applications
- Expansion of I/O in LOGO! 8.2 systems
- Industrial control cabinets requiring DIN rail logic modules
Purchase Information
We support online purchase of the SIEMENS 6ED1052-1MD08-0BA0 Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6ED1052-1MD08-0BA0? The 6ED1052-1MD08-0BA0 is a LOGO! 12/24RCE logic module with display, 8 digital inputs (4 analog-capable), and 4 relay outputs.
How many digital inputs does the module have? It has 8 digital inputs, and 4 of these can be used in analog mode with a 0…10 V signal range.
How many relay outputs does the module provide? The module provides 4 relay outputs.
What is the maximum output current per relay channel? The maximum output current is 10 A over the 0…55 °C operating range.
What supply voltage does the 6ED1052-1MD08-0BA0 require? The module operates from a nominal 12/24 V DC supply, with a permissible range of 10.8 V to 28.8 V DC.
Does the module include an Ethernet interface? Yes, it has an integrated Ethernet interface and web server.
What is the program memory capacity? The module supports up to 400 blocks.
Does the module support data logging? Yes, it supports Datalog data logging via a standard microSD card.
What is the operating temperature range? The specified operating temperature range is -20 °C to +55 °C.
What are the dimensions of the module? The dimensions are 71.5 mm in width, 90 mm in height, and 60 mm in depth.
Is short-circuit protection integrated? No internal short-circuit protection is provided; external fusing is required.
What should be checked before ordering? Verify the complete catalog number 6ED1052-1MD08-0BA0, the required mix of digital and analog inputs, relay output load requirements, supply voltage, and the Ethernet/expansion architecture of the existing LOGO! system.
