CPU 315-2 PN/DP
The module is a SIMATIC S7-300 CPU 315-2 PN/DP central processing unit for industrial automation control.
SIEMENS
SIEMENS 6ES7315-2EH14-0AB0 CPU Module 24VDC 256KB
$829.96
Available
PRODUCT GALLERY
01 / 3

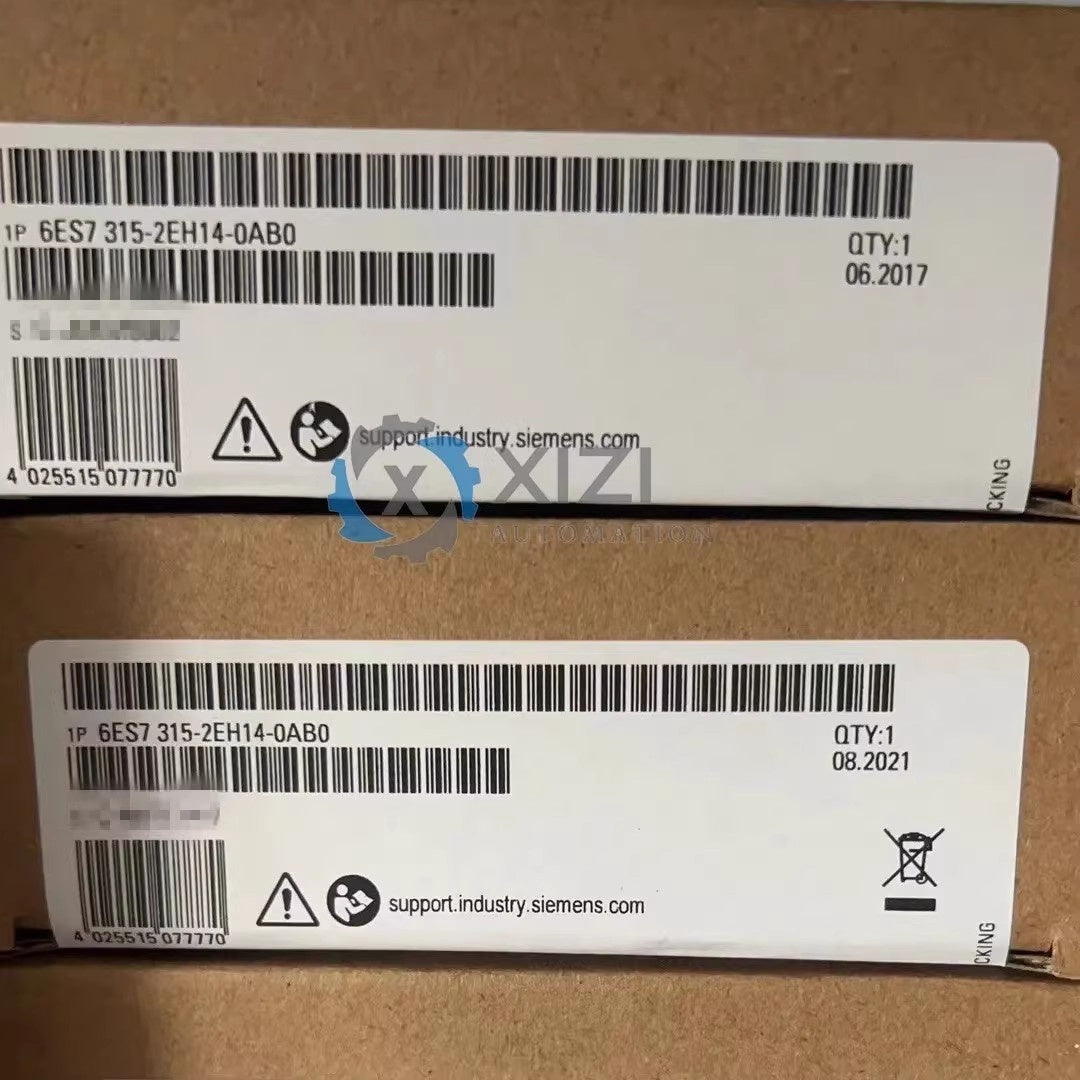

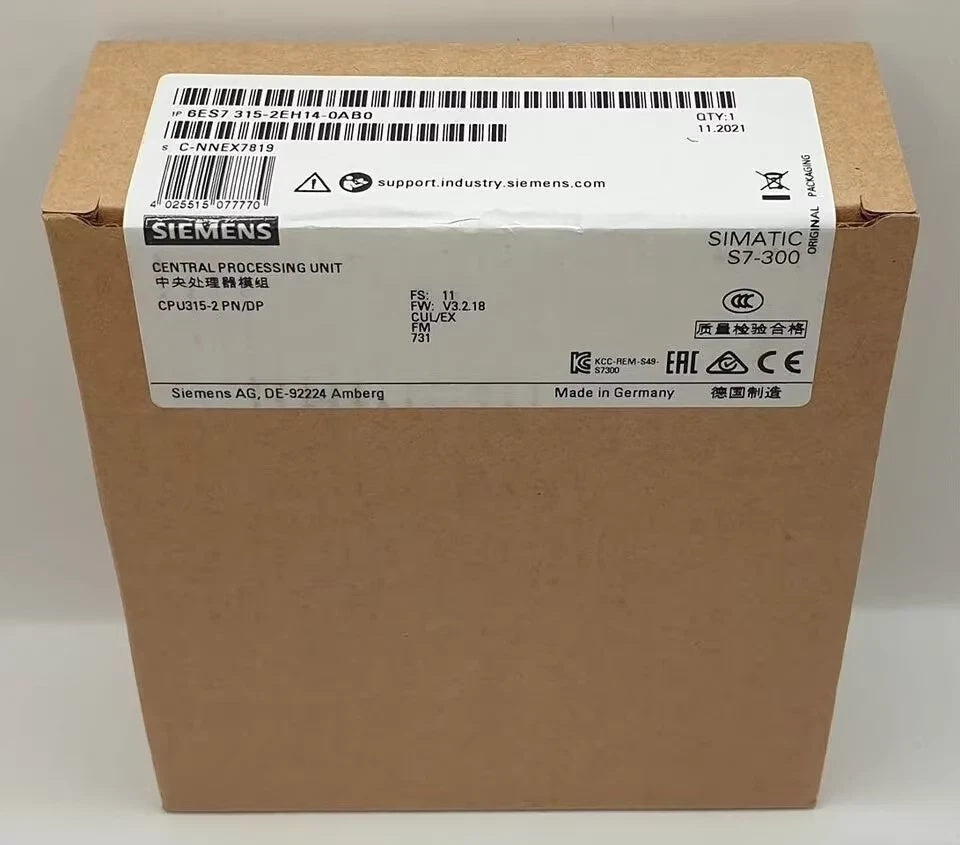

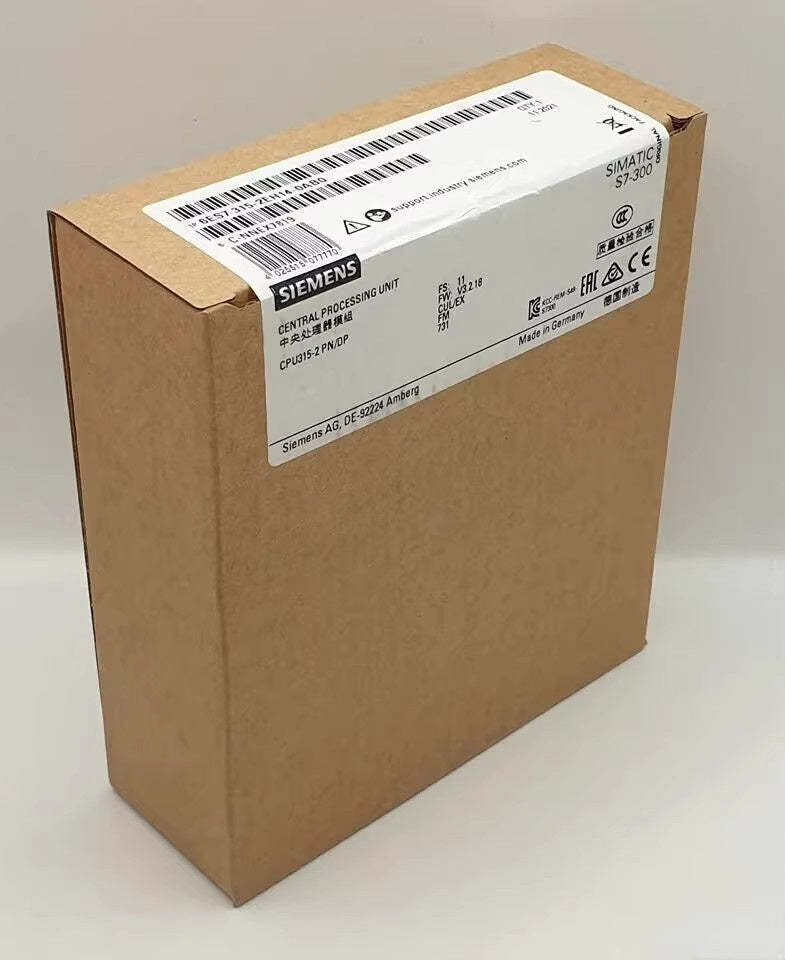

Product images for part identification
SIEMENS
SIEMENS 6ES7315-2EH14-0AB0 CPU Module 24VDC 256KB
PRODUCT PRICE
USD
$829.96
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | SIEMENS |
| Model Number | 6ES7315-2EH14-0AB0 |
| Product Category | CPU Module |
| Product Family | SIMATIC S7-300 |
| CPU Type | CPU 315-2 PN/DP |
| Work Memory | 384 KB |
| Interfaces | Ethernet PROFINET, MPI/DP |
| Rated Supply Voltage | 24 VDC |
| Input Current | 750 mA |
| Power Loss | 4.65 W |
| CPU Processing Time | 0.05 µs |
| Firmware Version | V3.2 |
| Programming Package | STEP 7 V5.5 or higher |
| Max Data Blocks | 1,024 (number range 1 to 16,000) |
| Memory Card | Micro Memory Card required |
| Weight | 0.09 kg |
Key Features
384 KB Work Memory
Integrated work memory of 384 KB supports user program and data storage for control tasks.
PROFINET and MPI/DP Interfaces
Communication interfaces include Ethernet PROFINET and MPI/DP for integration into S7-300 and networked automation architectures.
24 VDC Supply
The CPU operates on a 24 VDC rated supply voltage with an input current of 750 mA.
Fast Processing Time
The CPU processing time is specified at 0.05 µs for time-critical control operations.
STEP 7 Compatibility
The module is configured with STEP 7 V5.5 or higher and supports up to 1,024 data blocks.
Applications
- SIMATIC S7-300 automation system control
- Industrial machinery and production line control
- PROFINET and PROFIBUS networked control architectures
- Process automation and sequence control
- Manufacturing cell central processing
- Control cabinet PLC integration
- System expansion and upgrade projects
- Existing S7-300 maintenance and replacement planning
Purchase Information
We support online purchase of the SIEMENS 6ES7315-2EH14-0AB0 CPU Module. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the SIEMENS 6ES7315-2EH14-0AB0? The 6ES7315-2EH14-0AB0 is a SIMATIC S7-300 CPU 315-2 PN/DP central processing unit.
How much work memory does the CPU have? The CPU has 384 KB of integrated work memory.
What communication interfaces are available? It provides Ethernet PROFINET and MPI/DP interfaces.
What supply voltage does the CPU require? The rated supply voltage is 24 VDC, with an input current of 750 mA.
What is the CPU processing time? The CPU processing time is 0.05 µs.
What programming software is compatible? The CPU is configured with STEP 7 V5.5 or higher.
Does the CPU require a memory card? Yes, a Micro Memory Card is required.
What is the maximum number of data blocks? The maximum number of data blocks is 1,024, with a number range of 1 to 16,000.
What is the typical power loss? The typical power loss is 4.65 W.
