10 A SPDT Contact
Single-pole double-throw (1 Form C) contact rated 10 A for changeover switching applications.
1 / 1
Omron

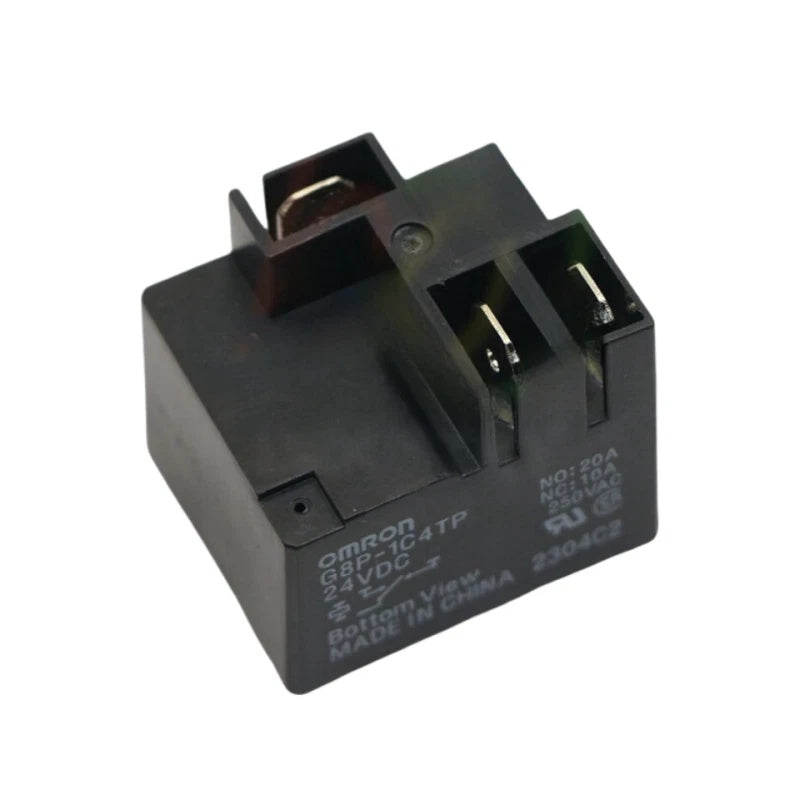

Omron G8P-1C4TP Relay
PRODUCT PRICE
USD
$8.84
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Omron |
| Model Number | G8P-1C4TP |
| Product Category | Power Relay |
| Coil Voltage | 12 VDC |
| Rated Contact Current | 10 A |
| Contact Configuration | SPDT (1 Form C) |
| Coil Current | 77 mA |
| Coil Resistance | 155 Ohms |
| Must Operate Voltage | 9 VDC Max |
| Must Release Voltage | 1.2 VDC Min |
| Switching Voltage | 250 VAC / 28 VDC Max |
| Operate Time | 15 ms |
| Operating Temperature | -55°C to +105°C |
Key Features
12 VDC Coil
Coil rated 12 VDC with 77 mA coil current and 155 Ohms coil resistance.
15 ms Operate Time
Published operate time of 15 ms supports responsive relay switching.
Wide Operating Temperature
Operating temperature range from -55°C to +105°C for use in diverse environments.
250 VAC / 28 VDC Switching
Maximum switching voltage of 250 VAC or 28 VDC covers common industrial load requirements.
Defined Pick-Up and Dropout
Maximum pick-up voltage of 9 VDC and minimum dropout voltage of 1.2 VDC for predictable control behavior.
Applications
- Industrial control panels
- Changeover load switching
- Motor control circuits
- HVAC equipment
- Lighting control
- Automation systems
- Power supply routing
- General purpose relay logic
Purchase Information
We support online purchase of the Omron G8P-1C4TP Power Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Omron G8P-1C4TP? The G8P-1C4TP is a power relay with a 12 VDC coil, 10 A rated contact current, and SPDT contact configuration.
What is the contact configuration? The relay has a single-pole double-throw (SPDT, 1 Form C) contact.
What is the rated contact current? The rated contact current is 10 A.
What is the coil voltage and current? The coil is rated 12 VDC with a coil current of 77 mA.
What is the coil resistance? The coil resistance is 155 Ohms.
What is the must-operate voltage? The maximum must-operate voltage is 9 VDC.
What is the must-release voltage? The minimum must-release voltage is 1.2 VDC.
What is the operating temperature range? The operating temperature range is -55°C to +105°C.
What is the operate time? The published operate time is 15 ms.
What is the maximum switching voltage? The maximum switching voltage is 250 VAC or 28 VDC.
