16 A Switching Capacity
Rated for contact currents up to 16 A, suitable for switching moderate power loads in industrial control panels.
1 / 1
Omron

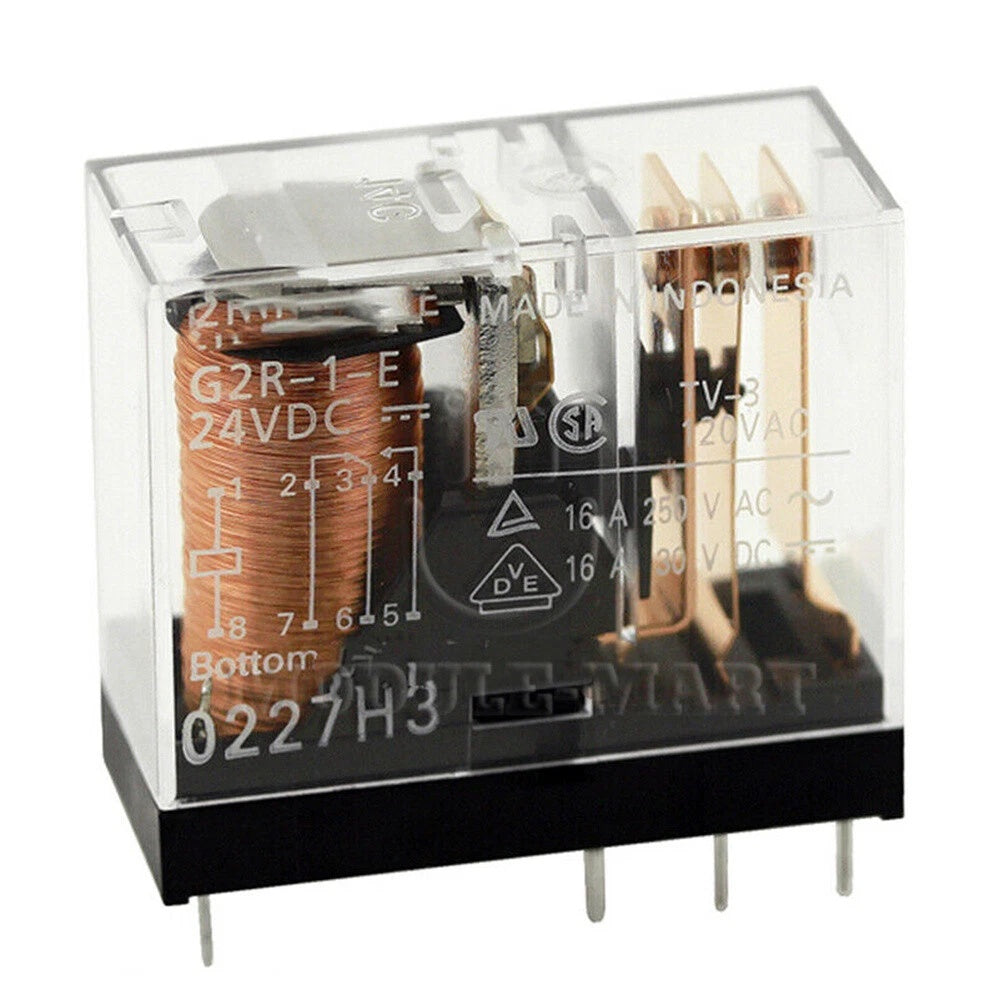

Omron G2R-1-E-24VDC Relay
PRODUCT PRICE
USD
$13.80
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Omron |
| Model Number | G2R-1-E-24VDC |
| Product Category | Relay |
| Coil Voltage | 24 VDC |
| Contact Configuration | SPDT |
| Contact Current Max. | 16 A |
| AC Contact Rating | 16 A / 250 VAC |
| DC Contact Rating | 16 A / 30 VDC |
| Coil Resistance | 1.1 kΩ |
| Coil Current | 21.8 mA |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C to 70°C |
| Mounting | PCB |
Key Features
SPDT Contact Form
Single-pole double-throw contacts provide both normally-open and normally-closed output options in one relay.
24 VDC Coil
Standard 24 VDC coil voltage aligns with common industrial control and PLC output circuits.
PCB Mounting
Through-hole PCB terminals enable direct integration onto printed circuit boards for compact control assemblies.
Wide Operating Temperature
Operates across a -40°C to 70°C ambient temperature range for reliable performance in varied environments.
Applications
- Industrial control panels
- PLC output interfacing
- Power switching in automation equipment
- HVAC control circuits
- Building automation systems
- General-purpose load switching
- Equipment maintenance and replacement
Purchase Information
We support online purchase of the Omron G2R-1-E-24VDC Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Omron G2R-1-E-24VDC? The G2R-1-E-24VDC is a general-purpose electromagnetic relay with a 24 VDC coil and SPDT contacts.
What is the contact current rating? The maximum contact current is 16 A, with AC ratings of 16 A at 250 VAC and DC ratings of 16 A at 30 VDC.
What is the coil voltage? The coil is rated for 24 VDC with a resistance of 1.1 kΩ and a current of 21.8 mA.
What is the operating temperature range? The relay operates within a temperature range of -40°C to 70°C.
How is the relay mounted? The G2R-1-E-24VDC is designed for PCB through-hole mounting.
What is the operate time? The operate time is 15 ms and the release time is 5 ms.
What should be checked before ordering? Confirm the coil voltage, contact configuration, current rating, and PCB footprint requirements.
