4PST-NO / DPST-NC Contacts
Four normally-open and two normally-closed forcibly-guided contacts support safety-related switching architectures.
1 / 1
Omron

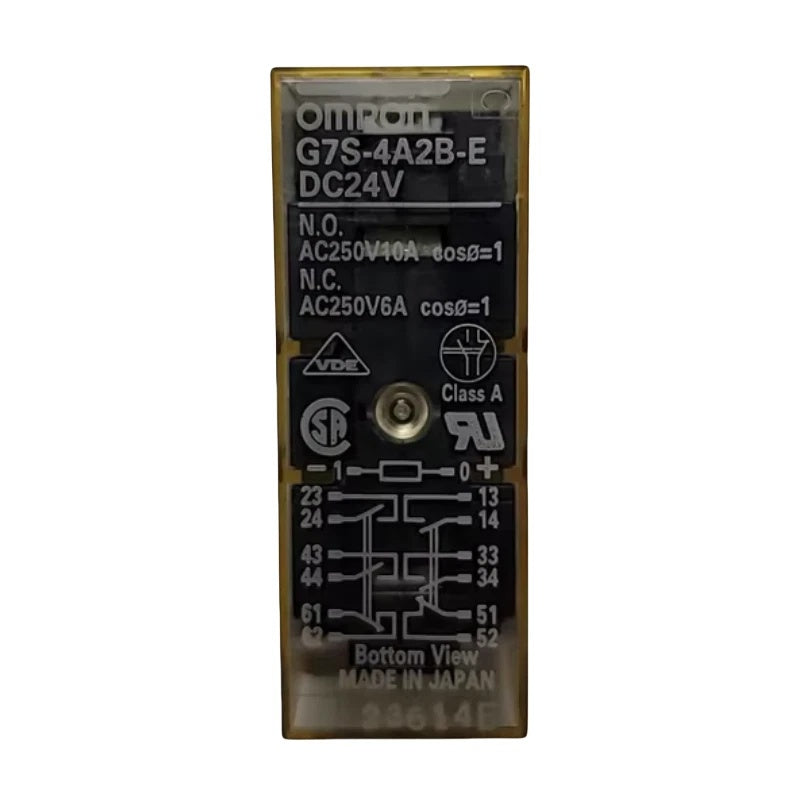

Omron G7S-4A2B-E Safety Relay
PRODUCT PRICE
USD
$22.62
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Omron |
| Model Number | G7S-4A2B-E |
| Product Category | Safety Relay |
| Coil Voltage | 24 VDC |
| Contact Form | 4PST-NO / DPST-NC |
| Rated Load (NO) | 250 VAC 10 A (resistive) |
| Rated Load (NC) | 250 VAC 6 A (resistive) |
| Operating Time | 50 ms max. |
| Release Time | 50 ms max. |
| Terminal Structure | PCB terminal |
| Degree of Protection | Closed type (cover) |
Key Features
10 A NO Contact Rating
Normally-open contacts are rated for 250 VAC 10 A resistive loads for direct control of higher-current safety circuits.
24 VDC Coil
24 VDC coil with approximately 0.8 W power consumption for standard safety control circuit compatibility.
50 ms Operating Time
Fast 50 ms maximum operating and release times support responsive safety system performance.
PCB Terminal Mounting
PCB terminals allow direct board mounting for integration into safety control boards and modules.
Applications
- Machine safety circuits
- Emergency stop systems
- Safety door monitoring
- Light curtain interfacing
- Press and stamping equipment
- Robotic cell safety control
- Packaging machinery safety
- Industrial automation safety relays
Purchase Information
We support online purchase of the Omron G7S-4A2B-E Safety Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Omron G7S-4A2B-E? The G7S-4A2B-E is a safety relay with a 24 VDC coil and a 4PST-NO / DPST-NC contact configuration.
What is the contact configuration? The contact form is 4PST-NO / DPST-NC (four normally-open and two normally-closed contacts).
What are the contact ratings? The NO contacts are rated for 250 VAC 10 A, and the NC contacts are rated for 250 VAC 6 A (resistive loads).
What is the operating time? The operating time is 50 ms maximum, and the release time is also 50 ms maximum.
What is the coil power consumption? The coil power consumption is approximately 0.8 W.
What are typical safety applications? It is used in emergency stop circuits, safety door monitoring, and machine safety control systems.
What should be checked before ordering? Verify the coil voltage, contact configuration, safety circuit requirements, and PCB terminal layout.
