DPDT Signal Switching
Double-pole double-throw contacts support two independent changeover circuits for signal routing and low-power switching.
1 / 1
Omron

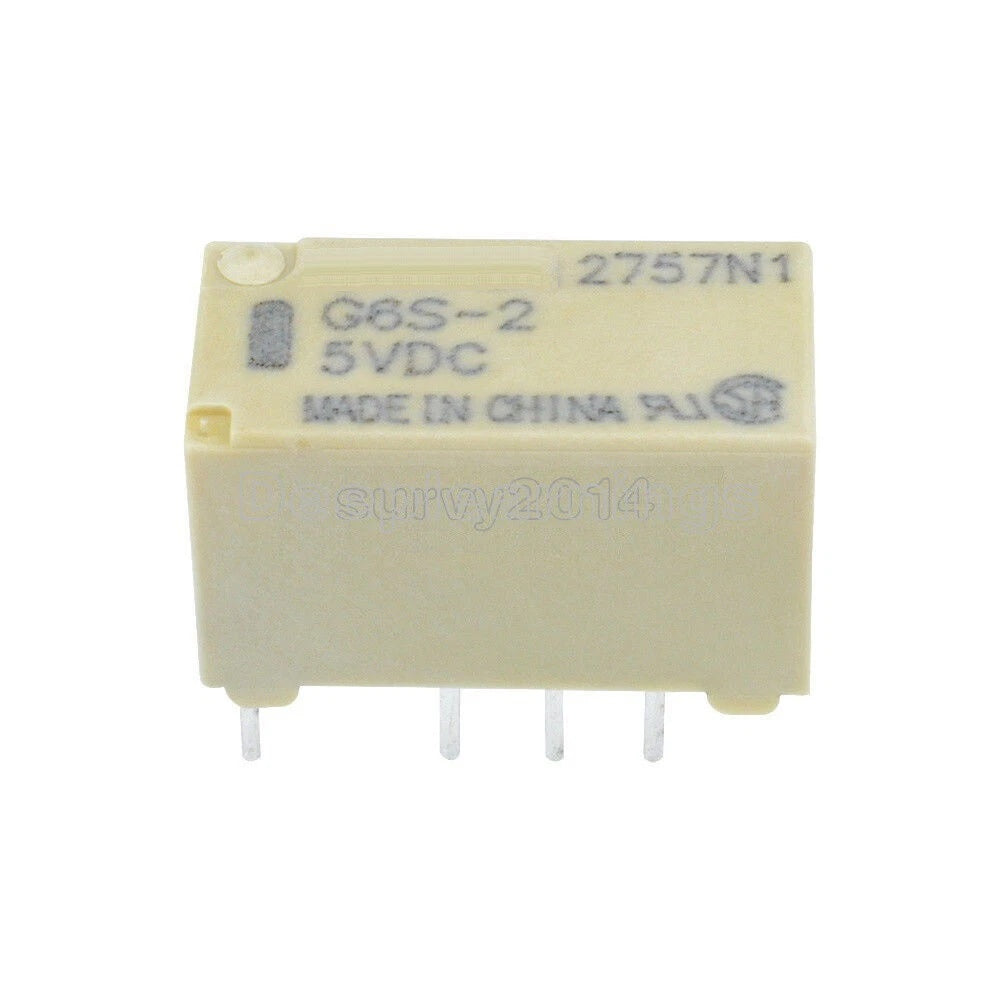

Omron G6S-2 Relay
PRODUCT PRICE
USD
$10.32
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Omron |
| Model Number | G6S-2 |
| Product Category | Relay |
| Coil Voltage | 12 VDC |
| Contact Form | DPDT (2 Form C) |
| Rated Load (AC) | 0.5 A at 125 VAC |
| Rated Load (DC) | 2 A at 30 VDC |
| Max. Contact Current | 2 A |
| Coil Power | Approx. 200 mW |
| Operate Time | 4 ms max. |
| Release Time | 4 ms max. |
| Operating Temperature | -40°C to 85°C |
Key Features
Compact Surface-Mount Package
Small surface-mount footprint enables dense PCB layouts in telecom and signal processing equipment.
12 VDC Coil
12 VDC coil with approximately 200 mW power consumption for low-power control circuit compatibility.
Gold-Alloy Contact Material
Gold alloy plus silver contacts provide reliable low-level signal switching performance.
Wide Temperature Range
Operates from -40°C to 85°C, suitable for use in varied environmental conditions.
Applications
- Telecommunications equipment
- Signal routing and switching
- Data communication systems
- Test and measurement instruments
- Industrial control signal interfaces
- Office automation equipment
- Security systems
- PCB-based signal relays
Purchase Information
We support online purchase of the Omron G6S-2 Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Omron G6S-2? The G6S-2 is a surface-mount signal relay with a 12 VDC coil and DPDT contacts.
What is the contact configuration? The contact configuration is DPDT (2 Form C).
What are the contact ratings? The rated load is 0.5 A at 125 VAC and 2 A at 30 VDC, with a maximum contact current of 2 A.
What is the coil power consumption? The coil power consumption is approximately 200 mW.
What is the operating temperature range? The relay operates from -40°C to 85°C.
What are typical applications? It is commonly used in telecommunications, signal switching, and measurement equipment.
What should be checked before ordering? Confirm coil voltage, contact ratings, and surface-mount PCB footprint compatibility.
