5 VDC Input
Designed for direct control by 5 VDC logic signals, compatible with microcontrollers and low-voltage control circuits.
1 / 1
Omron

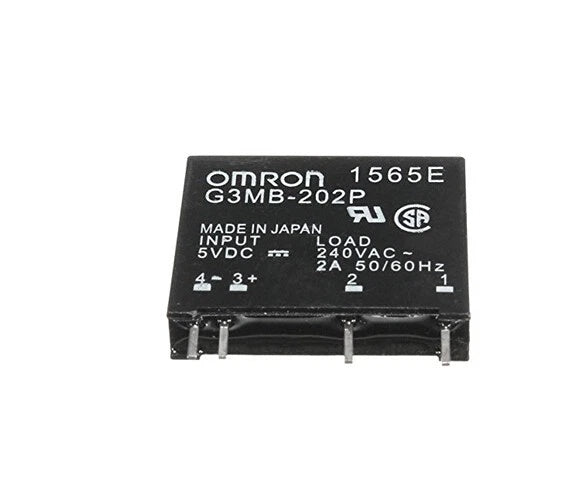

Omron G3MB-202P-5VDC Solid State Relay
PRODUCT PRICE
USD
$14.40
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Omron |
| Model Number | G3MB-202P-5VDC |
| Product Category | Solid State Relay |
| Input Voltage | 5 VDC |
| Rated Load Voltage | 100 to 240 VAC |
| Rated Load Current | 2 A |
| Contact Form | 1 Form A |
| Isolation Method | Phototriac |
| Zero Cross Function | Equipped |
| Input Current | Approx. 160 mA |
Key Features
2 A at 240 VAC Output
Switches resistive AC loads up to 2 A at 100 to 240 VAC for small heater, lamp, and motor control applications.
Phototriac Isolation
Provides electrical isolation between input and output circuits through a phototriac coupling element.
Zero Cross Switching
Built-in zero cross function helps reduce inrush current and electrical noise when switching AC loads.
Compact PCB-Mount Package
Compact solid-state construction allows direct PCB mounting for space-constrained control boards.
Applications
- Microcontroller-based load switching
- Small heater control
- Lamp and indicator switching
- AC motor control for low-power applications
- Industrial automation signal interfaces
- PCB-mounted relay assemblies
- Temperature control systems
- Test and measurement equipment
Purchase Information
We support online purchase of the Omron G3MB-202P-5VDC Solid State Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Omron G3MB-202P-5VDC? It is a PCB-mount solid state relay with a 5 VDC input and a 2 A, 100 to 240 VAC output.
What is the input voltage? The rated input voltage is 5 VDC with an input current of approximately 160 mA.
What load can it switch? It can switch resistive loads up to 2 A at 100 to 240 VAC.
Does it have zero cross switching? Yes, the G3MB-202P-5VDC includes a zero cross function.
What is the isolation method? The relay uses phototriac isolation between the input and output.
What is the contact form? The contact form is 1 Form A (normally open).
What should be checked before ordering? Verify the control signal voltage, load voltage and current, and PCB mounting dimensions.
