16 A Switching Power
Handles rated loads of 16 A at 250 VAC, suitable for switching heating elements and other moderate-power AC loads.
1 / 1
Omron

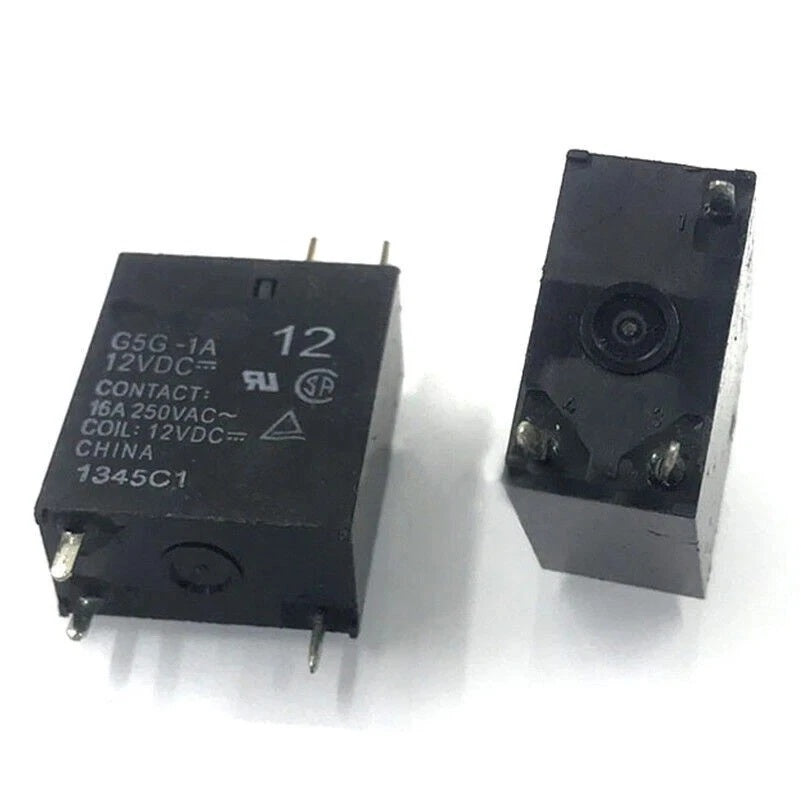

Omron G5G-1A-DT Relay
PRODUCT PRICE
USD
$31.72
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Omron |
| Model Number | G5G-1A-DT |
| Product Category | Relay |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO |
| Rated Load | 16 A at 250 VAC |
| Rated Carry Current | 16 A |
| Coil Power | Approx. 500 mW |
| Operate Time | 20 ms max. |
| Release Time | 5 ms max. |
| Operating Temperature | -40°C to 70°C |
Key Features
SPST-NO Contact Form
Single-pole normally-open contact configuration for simple on/off control of a single load circuit.
12 VDC Coil
12 VDC coil voltage for compatibility with low-voltage DC control systems and battery-powered equipment.
Slim PCB Relay Design
Compact slim profile with dual #187 tab/PCB terminals enables space-efficient board mounting.
10 kV Impulse Withstand
Designed with a 10 kV impulse withstand voltage for enhanced insulation performance in switching circuits.
Applications
- Microwave oven magnetron switching
- Heater control in appliances
- Industrial heating equipment
- PCB-mounted power switching
- Appliance control boards
- Power supply switching circuits
- Equipment requiring SPST-NO relays
Purchase Information
We support online purchase of the Omron G5G-1A-DT Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Omron G5G-1A-DT? The G5G-1A-DT is a PCB relay with a 12 VDC coil and an SPST-NO contact rated for 16 A at 250 VAC.
What is the contact form? The contact form is SPST-NO (1 Form A).
What is the rated load? The rated load is 16 A at 250 VAC, with a rated carry current of 16 A.
What is the coil voltage? The coil is rated for 12 VDC with a power consumption of approximately 500 mW.
What is the operating temperature range? The relay operates from -40°C to 70°C.
What are the typical applications? It is commonly used for microwave oven magnetron switching and heater control in appliances.
What should be checked before ordering? Verify coil voltage, load current and voltage, and PCB terminal layout.
