30 A Switching Capacity
Rated contact current of 30 A supports high-power switching in a compact relay package.
1 / 1
Omron

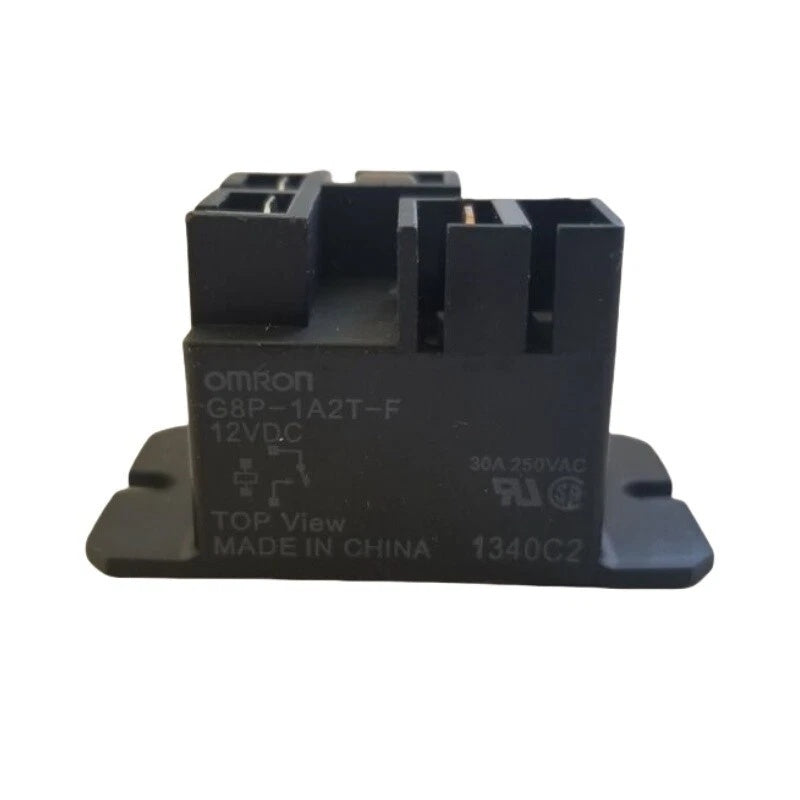

Omron G8P-1A2T-F Relay
PRODUCT PRICE
USD
$17.68
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Omron |
| Model Number | G8P-1A2T-F |
| Product Category | Power Relay |
| Coil Voltage | 12 VDC |
| Rated Contact Current | 30 A |
| Contact Configuration | SPST-NO |
| Coil Type | Non-Latching |
| Switching Voltage | 250 VAC / 28 VDC Max |
| Terminal Type | 0.250 inch Quick Connect (Load); 0.187 inch Quick Connect (Coil, Flange Mount) |
| Impulse Surge Withstand | 6 kV |
| Operate Time | 15 ms |
Key Features
SPST-NO Contact
Single-pole single-throw normally-open contact configuration for load control applications.
12 VDC Coil
Non-latching 12 VDC coil suitable for low-voltage DC control circuits.
Quick Connect Terminals
Load terminals use 0.250 inch quick connect; coil terminals use 0.187 inch quick connect on flange mount versions.
6 kV Impulse Surge Withstand
Minimum impulse surge withstand of 6 kV supports use in electrically demanding environments.
15 ms Operate Time
Published operate time of 15 ms for responsive switching performance.
Applications
- Industrial control panels
- Power switching circuits
- Motor control equipment
- HVAC systems
- Lighting control panels
- Automation equipment
- Power supply switching
- General purpose load control
Purchase Information
We support online purchase of the Omron G8P-1A2T-F Power Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Omron G8P-1A2T-F? The G8P-1A2T-F is a power relay with a 12 VDC coil, 30 A rated contact current, and SPST-NO contact configuration.
What is the contact configuration of G8P-1A2T-F? It has a single-pole single-throw normally-open (SPST-NO) contact.
What is the rated contact current? The rated contact current is 30 A.
What is the coil voltage? The coil voltage is 12 VDC.
Is the coil latching? No, the coil type is non-latching.
What is the maximum switching voltage? The maximum switching voltage is 250 VAC or 28 VDC.
What terminal type does the relay use? Load terminals are 0.250 inch quick connect. Coil terminals on flange mount versions are 0.187 inch quick connect.
What is the impulse surge withstand? The minimum impulse surge withstand is 6 kV.
What is the operate time? The published operate time is 15 ms.
What applications is this relay suitable for? It is commonly used in industrial control panels, power switching circuits, motor control equipment, HVAC systems, and general purpose load control.
