20 A Contact Rating
Rated for 20 A contact current, suitable for switching compressors, fans, and other automotive electrical loads.
1 / 1
Omron

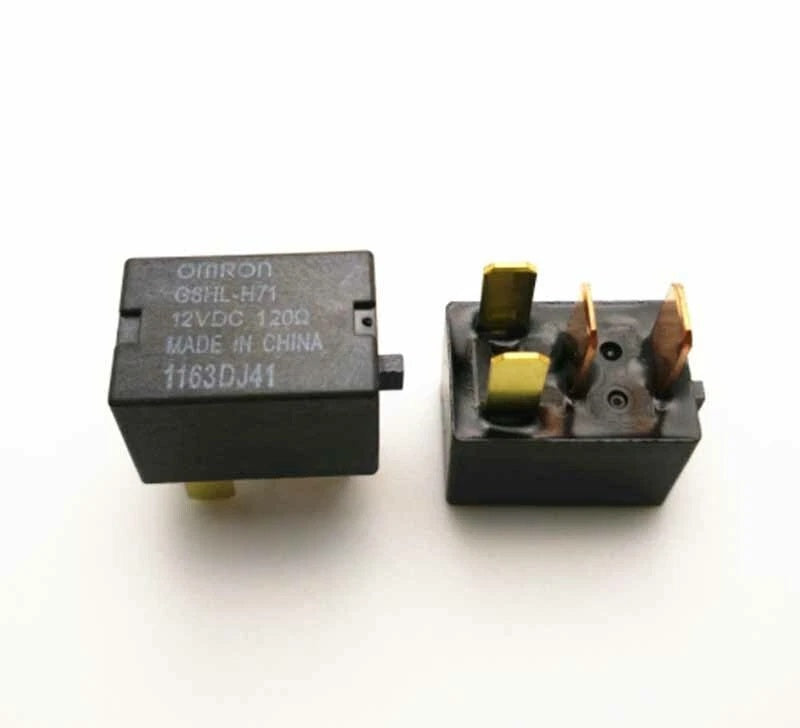

Omron G8HL-H71 Relay
PRODUCT PRICE
USD
$10.33
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Omron |
| Model Number | G8HL-H71 |
| Product Category | Relay |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Current Rating | 20 A |
| Allowable Carrying Current | 30 A at DC 14 V (30 min.) |
| Coil Resistance | 120 Ω |
| Mounting | Plug-in |
Key Features
SPDT Contact Form
Single-pole double-throw contacts provide changeover switching for normally-open and normally-closed circuits.
12 VDC Coil
12 VDC coil with 120 Ω resistance for direct compatibility with automotive 12 V electrical systems.
30 A Carry Current
Allowable carrying current of 30 A at DC 14 V for 30 minutes supports higher-current load requirements.
Low-Profile Micro ISO Design
Low-profile package format for space-constrained automotive relay boxes and control panels.
Applications
- Automotive air conditioning compressor control
- Cooling fan switching
- Starter relay circuits
- Driving light control
- Automotive power distribution
- Vehicle electrical accessory control
- 12 VDC load switching
- Under-hood and interior relay applications
Purchase Information
We support online purchase of the Omron G8HL-H71 Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Omron G8HL-H71? The G8HL-H71 is a low-profile micro ISO relay with a 12 VDC coil and SPDT contacts rated for 20 A.
What is the contact current rating? The contact current rating is 20 A, with an allowable carrying current of 30 A at DC 14 V for 30 minutes.
What is the contact form? The contact form is SPDT (1 Form C).
What is the coil resistance? The coil resistance is 120 Ω.
What are typical applications? It is commonly used for automotive A/C compressor, fan, and starter relay circuits.
What should be checked before ordering? Verify the coil voltage, contact rating, and relay socket or terminal compatibility for the vehicle or equipment.
