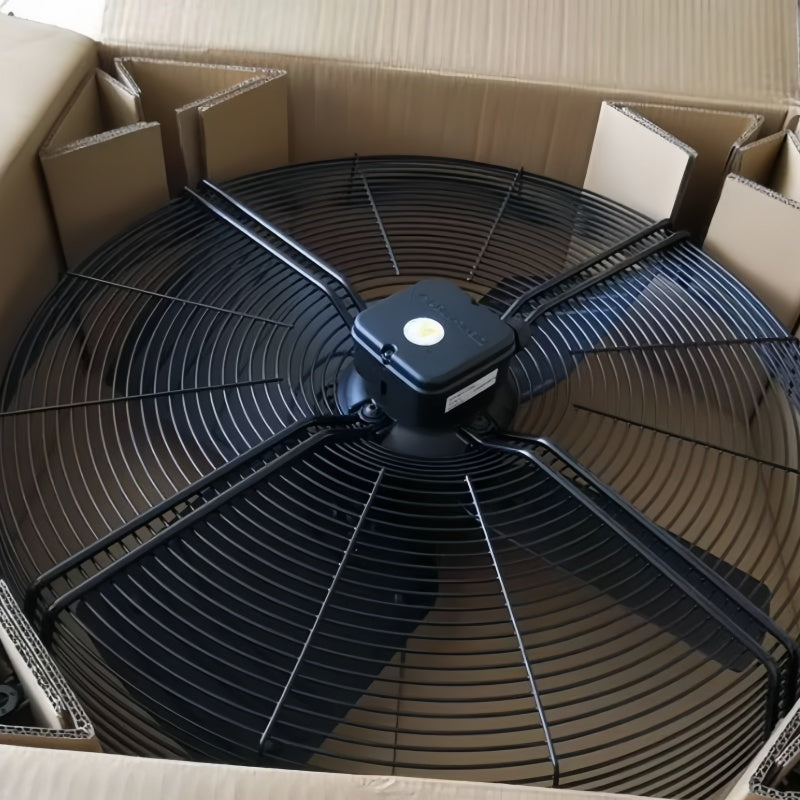

630 mm Axial Fan
The FB063-6EQ.4I.V4L is a 630 mm axial fan with sheet-metal blades and a square wall ring plate.
ZIEHL-ABEGG FB063-6EQ.4I.V4L Axial Fan 630mm 230VAC 470W
Available in stock (200)
Regular price
$522.31
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FB063-6EQ.4I.V4L |
| Product Category | Axial Fan |
| Article Number | 169988 |
| Fan Design | Axial Fan with Sheet-Metal Blades and Square Wall Ring Plate |
| Fan Diameter | 630 mm |
| Motor Technology | AC |
| Phase | Single-Phase |
| Rated Voltage | 1~ 230 VAC ±10% |
| Frequency | 50/60 Hz |
| Input Power | 0.47 kW at 50 Hz / 0.64 kW at 60 Hz |
| Rated Current | 2.3 A at 50 Hz / 2.9 A at 60 Hz |
| Rated Speed | 920 RPM at 50 Hz / 1050 RPM at 60 Hz |
| Capacitor | 10 µF / 400 V |
| Maximum Static Pressure | 80 Pa at 60 Hz |
| Degree of Protection | IP54 |
| Thermal Class | 155 |
| Motor Protection | Thermal Contact |
| Bearing Type | Ball Bearing with Long-Life Lubrication |
| Blade Material | Aluminium |
| Electrical Connection | Terminal Box K62 |
| Installation Position | H / Vu / Vo |
| Connection Diagram | 1360-104XA |
Key Features
230 VAC Single-Phase Supply
The documented electrical configuration uses a single-phase 230 VAC ±10% supply for 50 and 60 Hz operation.
50/60 Hz Operating Data
Documented input power is 0.47 kW at 50 Hz and 0.64 kW at 60 Hz, with corresponding current values of 2.3 and 2.9 A.
920 / 1050 RPM
The documented rotational speed is 920 RPM at 50 Hz and 1050 RPM at 60 Hz.
Aluminium Blades
The documented fan configuration uses aluminium blades and a ball-bearing motor arrangement.
IP54 Motor Protection
The documented configuration includes IP54 protection, thermal class 155 and a thermal contact for motor protection.
Applications
- Industrial refrigeration systems
- Cold storage equipment
- Condenser and evaporator airflow
- Industrial ventilation systems
- Heat exchanger airflow
- Industrial machinery cooling
- Equipment heat removal
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FB063-6EQ.4I.V4L Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FB063-6EQ.4I.V4L?
ZIEHL-ABEGG FB063-6EQ.4I.V4L is a 630 mm AC axial fan with sheet-metal blades and a square wall ring plate.
What article number is associated with FB063-6EQ.4I.V4L?
The documented article number for this configuration is 169988.
What voltage does FB063-6EQ.4I.V4L use?
The documented rated voltage is single-phase 230 VAC ±10%.
Does FB063-6EQ.4I.V4L support 50 and 60 Hz?
Yes. Model-specific technical data provides operating values for both 50 Hz and 60 Hz.
What is the input power?
The documented input power is 0.47 kW at 50 Hz and 0.64 kW at 60 Hz.
What is the rated current?
The documented current is 2.3 A at 50 Hz and 2.9 A at 60 Hz.
What is the rated speed?
The documented rotational speed is 920 RPM at 50 Hz and 1050 RPM at 60 Hz.
What capacitor is specified?
The documented capacitor specification is 10 µF / 400 V.
What is the degree of protection?
The documented degree of protection is IP54.
What type of motor protection is used?
The documented motor protection is a thermal contact.
Can FB063-6EQ.4I.V4L be considered for an existing system?
It can be considered after the complete model designation and the required voltage, frequency, power, current, speed, airflow, pressure, dimensions and mechanical installation requirements have been checked against the existing system.
What should be checked before ordering FB063-6EQ.4I.V4L?
Check the complete model and article number together with the required voltage, frequency, power, current, speed, capacitor, airflow requirements, dimensions and installation position before ordering.
