12 VDC Operation
Operates from a nominal 12 VDC power source with a documented operating voltage range of 10.8-13.2 VDC.
ADDA
ADDA AD0412MX-G70 DC Axial Fan 12VDC 40x40x10mm 5.7CFM
$12.28
Available
PRODUCT GALLERY
01 / 3

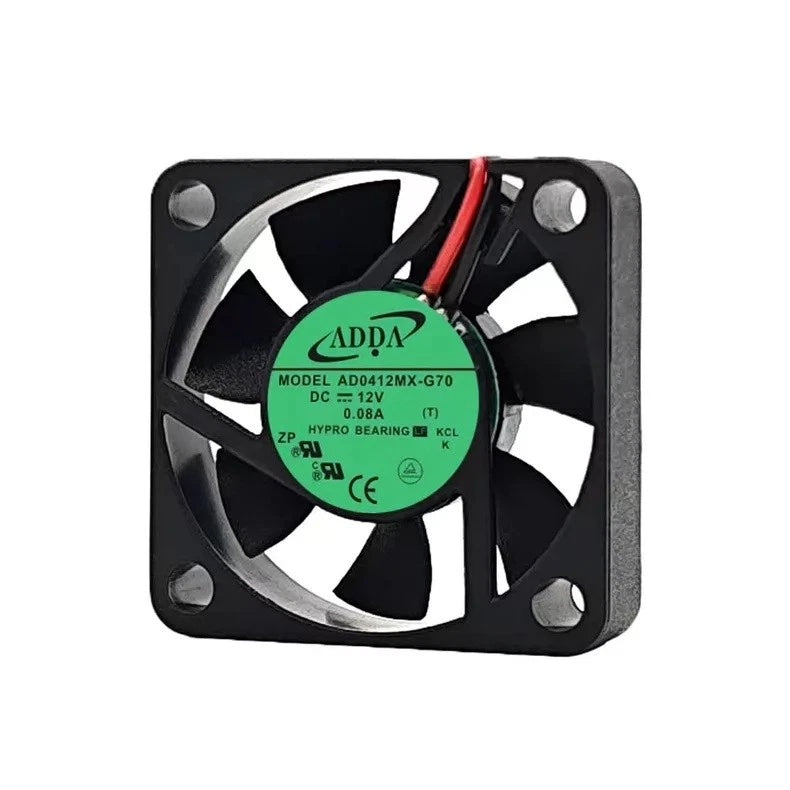

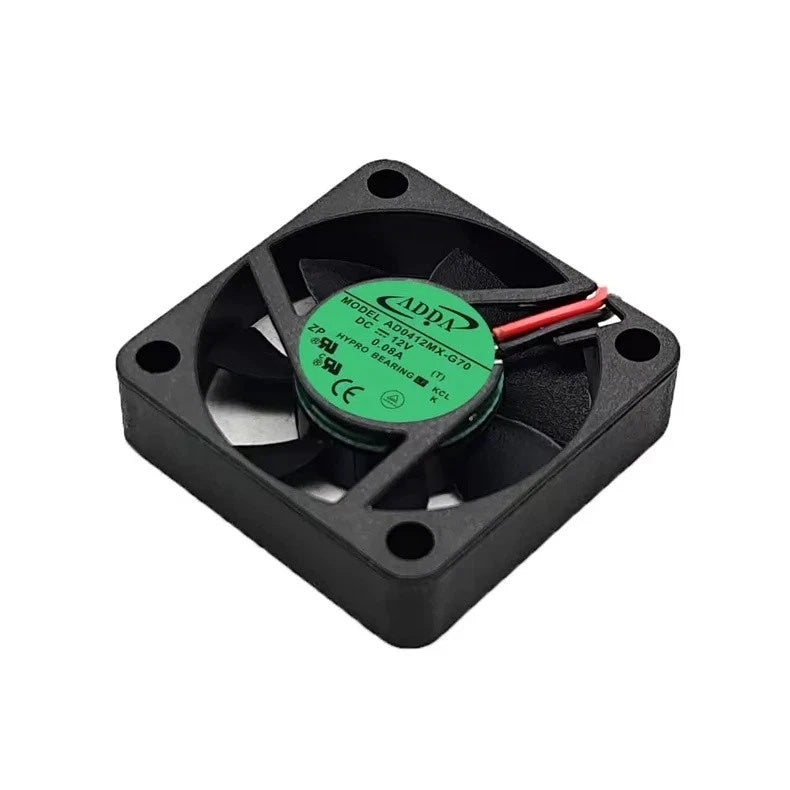

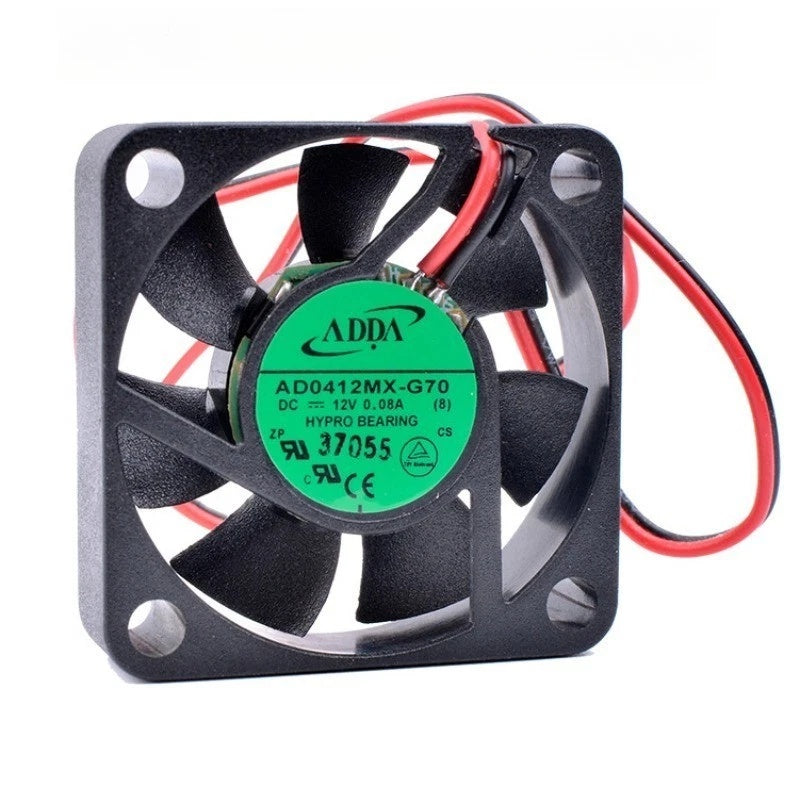

Product images for part identification
ADDA
ADDA AD0412MX-G70 DC Axial Fan 12VDC 40x40x10mm 5.7CFM
PRODUCT PRICE
USD
$12.28
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ADDA |
| Model Number | AD0412MX-G70 |
| Product Category | DC Axial Fan |
| Fan Type | DC Brushless Axial Fan |
| Dimensions | 40 x 40 x 10 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 10.8-13.2 VDC |
| Start-Up Voltage | 9 VDC |
| Rated Current | 0.08 A |
| Rated Power | 0.96 W |
| Rated Speed | 4800 RPM |
| Air Flow | 5.7 CFM |
| Static Pressure | 0.078 inH2O |
| Noise Level | 19 dB(A) |
| Bearing Type | Hypro Bearing |
| Safety Approvals | UL, cUL, TÜV, CE |
Key Features
40 x 40 x 10 mm Frame
Features a 40 mm square housing with a 10 mm depth for compact electronic equipment ventilation.
4800 RPM Rated Speed
The manufacturer specifies a rated rotational speed of 4800 RPM for the AD0412MX-G70 configuration.
5.7 CFM Airflow
The manufacturer fan specification table identifies a free-air flow rating of 5.7 CFM.
Hypro Bearing Design
Uses the Hypro bearing configuration identified in the manufacturer product specifications.
0.96 W Rated Power
The published electrical specifications identify a rated current of 0.08 A and rated power of 0.96 W.
Applications
- Compact electronic equipment ventilation
- Embedded controller cooling
- Small power supply enclosure cooling
- Industrial instrument ventilation
- Network equipment airflow management
- Electronic control board cooling
- Compact communication equipment ventilation
- Forced-air cooling for small electronic assemblies
Purchase Information
We support online purchase of the ADDA AD0412MX-G70 DC Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ADDA AD0412MX-G70?
ADDA AD0412MX-G70 is a 12 VDC brushless axial cooling fan with a 40 x 40 x 10 mm frame and Hypro bearing construction.
What is the rated voltage of AD0412MX-G70?
The manufacturer specifies a nominal operating voltage of 12 VDC.
What is the operating voltage range?
The documented operating voltage range is 10.8-13.2 VDC, with a normal start-up voltage of 9 VDC.
What are the dimensions of AD0412MX-G70?
The fan measures 40 x 40 x 10 mm. Mounting clearances and installation requirements should be verified against the equipment.
What is the rated current and power consumption?
The manufacturer specifies a rated current of 0.08 A and rated power of 0.96 W.
What is the rated fan speed?
The published rated speed is 4800 RPM under the specified operating conditions.
What is the airflow rating of AD0412MX-G70?
The manufacturer product specification table identifies a free-air flow rating of 5.7 CFM. Installed airflow depends on the airflow resistance of the equipment.
What bearing type does this fan use?
The AD0412MX-G70 uses a Hypro bearing configuration.
What is the published static pressure rating?
The manufacturer product specification table identifies a static pressure rating of 0.078 inH2O.
What is the specified noise level?
The manufacturer series specification table lists 19 dB(A) for the standard AD0412MX-G70 configuration. Variant-specific noise ratings should be checked separately.
Can AD0412MX-G70 be considered for compact electronic equipment cooling?
It can be considered after verifying the electrical supply, airflow requirements, mounting dimensions, connection arrangement and operating environment.
What should be checked before ordering ADDA AD0412MX-G70?
Verify the complete model number and any additional suffix, 12 VDC supply, 0.08 A current rating, 40 x 40 x 10 mm dimensions, airflow requirements and electrical connection configuration against the existing equipment specifications.
Need help confirming a model?
Send us your part number and technical requirements.
