230 VAC Supply
Operates on a 230 VAC supply for industrial AC power systems.
1 / 2
Ebmpapst

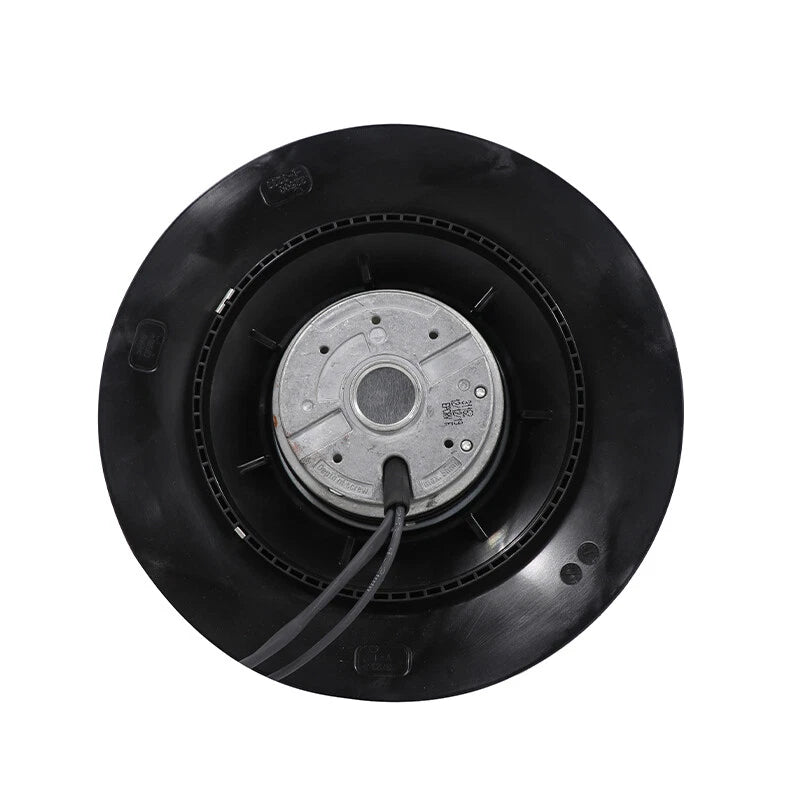

Ebmpapst R2E225-RA92-23 Centrifugal Fan 230VAC 225mm 135W
PRODUCT PRICE
USD
$183.63
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | R2E225-RA92-23 |
| Product Category | Centrifugal Fan |
| Fan Type | Backward-Curved Centrifugal Fan |
| Rated Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Input Power | 155 W (50 Hz) / 210 W (60 Hz) |
| Speed | 2500 RPM (50 Hz) / 2600 RPM (60 Hz) |
| Airflow | 1195 m³/h |
| Max Static Pressure | 425 Pa |
| Noise Level | 58 dB(A) |
| Protection Rating | IP44 |
| Bearing Type | Ball Bearing |
| Impeller Material | PA Plastic, Glass-Fiber Reinforced |
| Number of Blades | 7 |
| Weight | 2.4 kg |
| Operating Temperature | -40°C to +80°C |
Key Features
1195 m³/h Airflow
Delivers up to 1195 m³/h airflow for cooling and ventilation requirements.

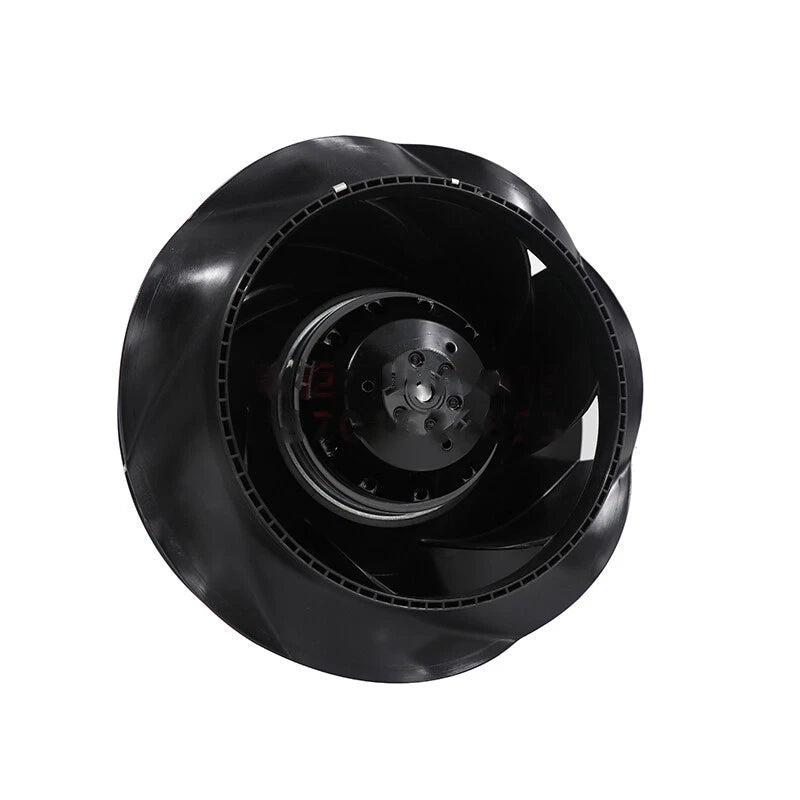

Backward-Curved Impeller
Features a 7-blade backward-curved impeller made of glass-fiber reinforced PA plastic.
IP44 Protection
IP44 protection rating supports use in environments exposed to dust and water splashes.
Ball Bearing Construction
Equipped with ball bearings for the rotating assembly.
Applications
- Industrial control panel cooling
- HVAC equipment ventilation
- Power electronics thermal management
- Machine automation cooling
- Process control enclosure ventilation
- Production line air movement
- Drive cabinet cooling
- Industrial air intake systems
Purchase Information
We support online purchase of the Ebmpapst R2E225-RA92-23 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst R2E225-RA92-23? The R2E225-RA92-23 is a backward-curved centrifugal fan from Ebmpapst with a 225 mm impeller.
What voltage does the R2E225-RA92-23 require? It operates on a 230 VAC supply.
What is the maximum airflow of the R2E225-RA92-23? The published maximum airflow is 1195 m³/h.
What is the speed of the R2E225-RA92-23? Speed is rated at 2500 RPM at 50 Hz and 2600 RPM at 60 Hz.
What is the protection rating of the R2E225-RA92-23? The fan carries an IP44 protection rating.
What bearing type does the R2E225-RA92-23 use? It uses ball bearings.
What is the weight of the R2E225-RA92-23? The fan weighs approximately 2.4 kg.
What is the operating temperature range? The published operating temperature range is -40°C to +80°C.
How many blades does the impeller have? The backward-curved impeller has 7 blades.
What should be checked before ordering? Check the complete model number, voltage supply, airflow requirement, IP rating, and mounting dimensions against the installation.
Need help confirming a model?
Send us your part number and technical requirements.
