3000 Pa Static Pressure
High static pressure of 3000 Pa supports airflow through restrictive heating and cooling paths.
1 / 4
Ebmpapst

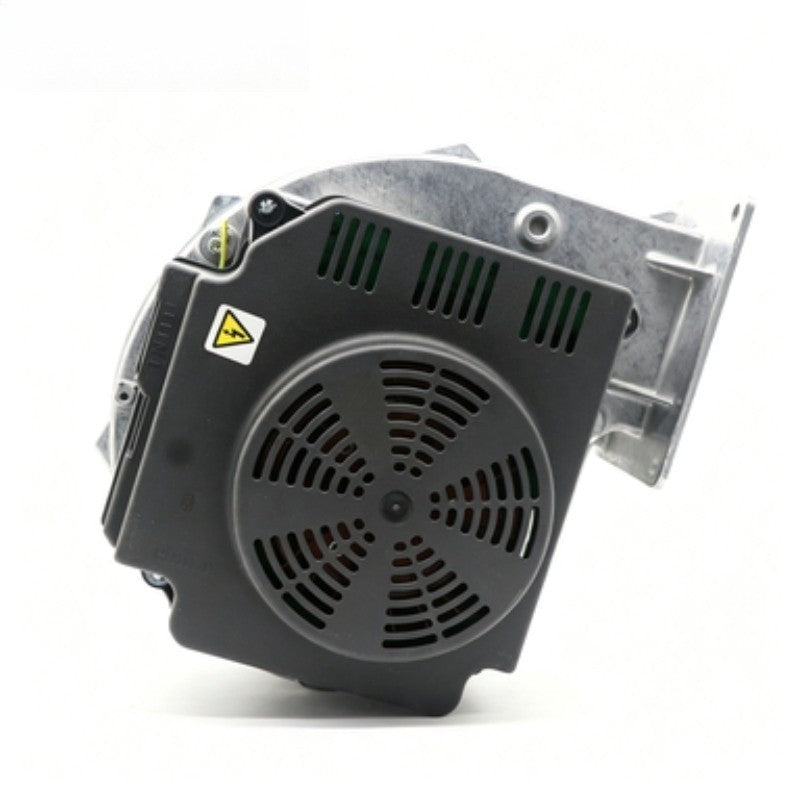

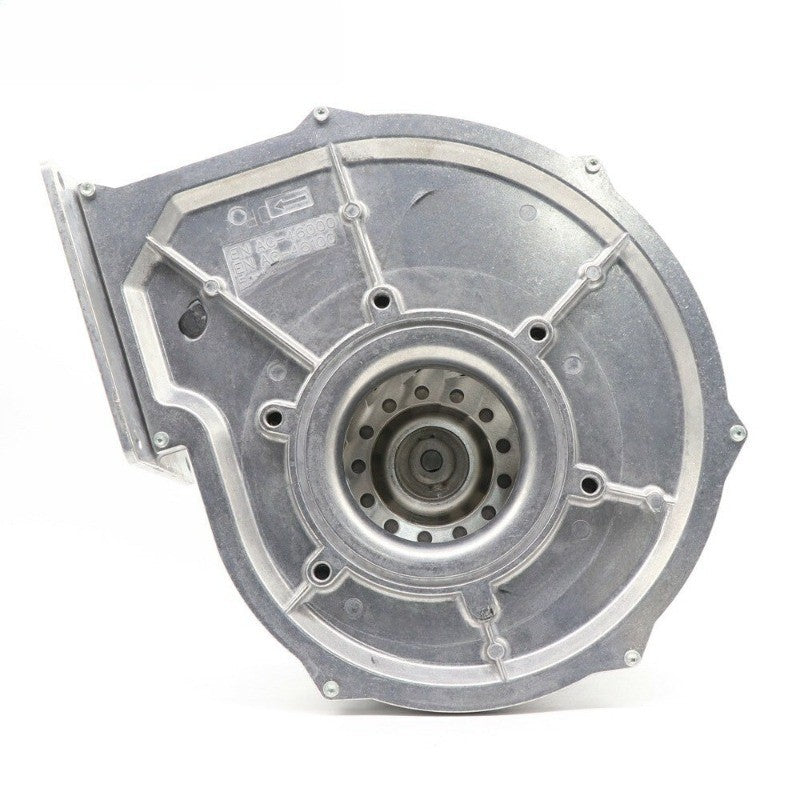

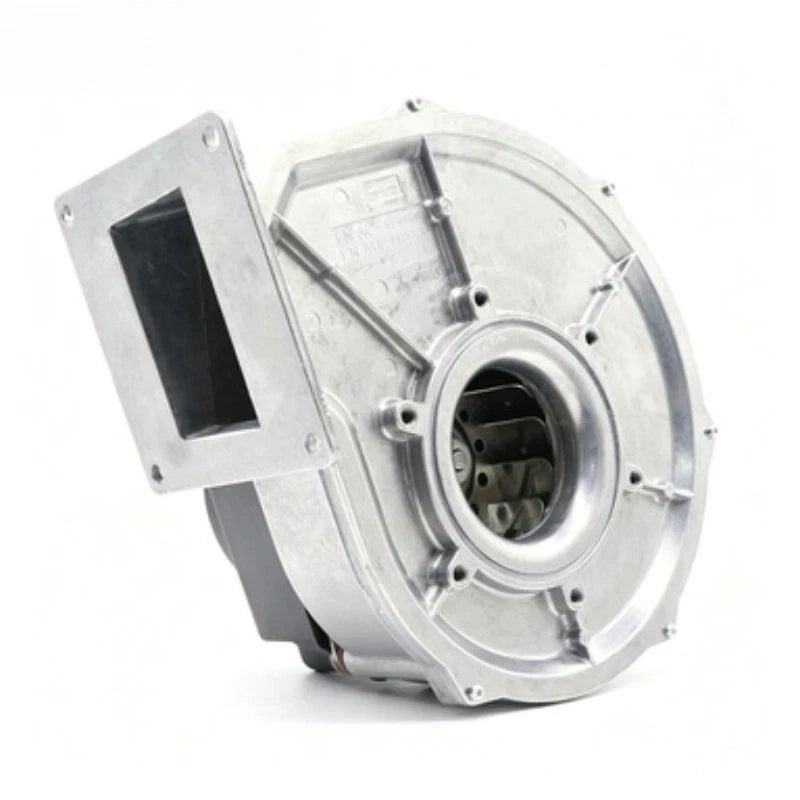

Ebmpapst G1G170-AB31-03 Centrifugal Fan 24VDC 170mm 40W
PRODUCT PRICE
USD
$830.70
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | G1G170-AB31-03 |
| Product Category | Centrifugal Fan |
| Fan Type | EC Centrifugal Fan |
| Rated Voltage | 230 V |
| Frequency | 50 Hz |
| Current Draw | 2.15 A |
| Power Consumption | 315 W |
| Impeller Diameter | 170 mm |
| Airflow | 645 m³/h |
| Static Pressure | 3000 Pa |
| Speed | 5650 RPM |
| Protection Rating | IP20 |
| Bearing Type | Ball Bearing |
| Operating Temperature | -25 to +55 °C |
Key Features
645 m³/h Airflow
Delivers 645 m³/h airflow from a 170 mm centrifugal impeller.
EC Motor
Electronically commutated motor with integrated electronics for speed control and efficiency.
IP20 / Ball Bearing
IP20 protection and ball bearing construction for industrial blower applications.
Wide Temperature Range
Operating temperature range of -25 to +55 °C for varied installation environments.
Applications
- Gas condensing boiler blowers
- Premix burner air supply
- Industrial heating systems
- Centrifugal air movement in HVAC
- High-static-pressure cooling
- Combustion air delivery
- Process air systems
Purchase Information
We support online purchase of the Ebmpapst G1G170-AB31-03 Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Ebmpapst G1G170-AB31-03? It is an EC centrifugal fan with a 170 mm impeller and 230 V rated voltage.
What is the static pressure of the G1G170-AB31-03? The static pressure is 3000 Pa.
What airflow does it deliver? The airflow is 645 m³/h at 5650 RPM.
What is the power consumption? The power consumption is 315 W at 2.15 A.
What is the IP rating? The protection rating is IP20.
What is the operating temperature range? The range is -25 to +55 °C.
Need help confirming a model?
Send us your part number and technical requirements.
