60 mm DC Axial Fan
The Ebmpapst TYP612 is a compact tubeaxial fan with 60 x 60 x 25 mm dimensions for electronic and industrial equipment cooling.

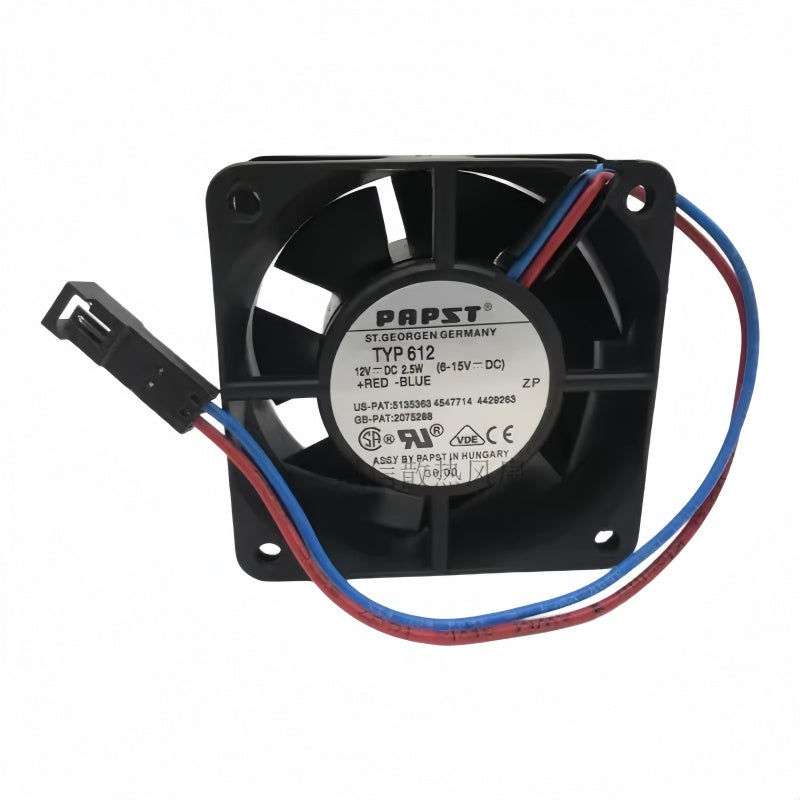

Ebmpapst TYP612 Axial Fan 12 VDC 60 x 60 x 25.4 mm
Available in stock (199)
Regular price
$13.91
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | Ebmpapst |
| Model Number | TYP612 |
| Product Category | Axial Fan |
| Series | 600 |
| Fan Type | DC Tubeaxial Fan |
| Rated Voltage | 12 VDC |
| Voltage Range | 6-15 VDC |
| Power Input | 2.5 W |
| Dimensions | 60 x 60 x 25 mm |
| Air Flow | 24 CFM |
| Noise Level | 40 dBA |
| Bearing Type | Ball Bearing |
| Electrical Connection | 2 Wire Leads |
| Frame Material | Fiberglass-Reinforced PBT |
| Blade Material | Polyamide |
Key Features
12 VDC Operation
The fan has a nominal 12 VDC rating and a documented operating voltage range of 6-15 VDC.
2.5 W Power Input
The TYP612 is specified with a 2.5 W power input for compact DC cooling applications.
24 CFM Airflow
Published exact-model technical data specifies an airflow rating of 24 CFM under free-air conditions.
Ball Bearing
The documented configuration uses a ball-bearing system for the fan motor assembly.
Two-Wire Connection
The TYP612 uses two wire leads for connection to the compatible DC power supply in the host equipment.
Applications
- Electronic equipment cooling
- Control equipment ventilation
- Industrial electronics cooling
- Power supply cooling
- Compact equipment ventilation
- Control panel air circulation
- Automation equipment cooling
- DC fan system maintenance
Purchase Information
We support online purchase of the Ebmpapst TYP612 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Ebmpapst TYP612?
It is a compact DC tubeaxial fan designed for equipment cooling and ventilation applications.
What voltage does TYP612 use?
The documented nominal voltage is 12 VDC.
What is the operating voltage range?
Published exact-model technical data specifies a voltage range of 6-15 VDC.
What is the power input?
The documented power input is 2.5 W.
What are the dimensions?
The TYP612 measures approximately 60 x 60 x 25 mm.
What is the airflow?
Published exact-model technical data specifies 24 CFM under free-air conditions.
What bearing type is used?
The TYP612 uses a ball-bearing configuration.
How is the fan electrically connected?
The documented configuration uses two wire leads.
What is the documented noise level?
Published exact-model data lists a noise level of 40 dBA.
What materials are used?
Published technical data identifies a fiberglass-reinforced PBT frame and polyamide fan blades.
Where can TYP612 be used?
Typical applications include electronic equipment, industrial electronics, control equipment, power supplies and compact ventilation systems.
What should be checked before ordering TYP612?
Check the complete model number, 12 VDC nominal supply, 6-15 VDC operating range, 60 x 60 x 25 mm dimensions, airflow requirement and electrical connection before purchasing.
