800 mm Axial Fan
The ZN080-ZIL.GL.V7P3 is an 800 mm ZAplus axial fan configuration documented for transformer cooling applications.

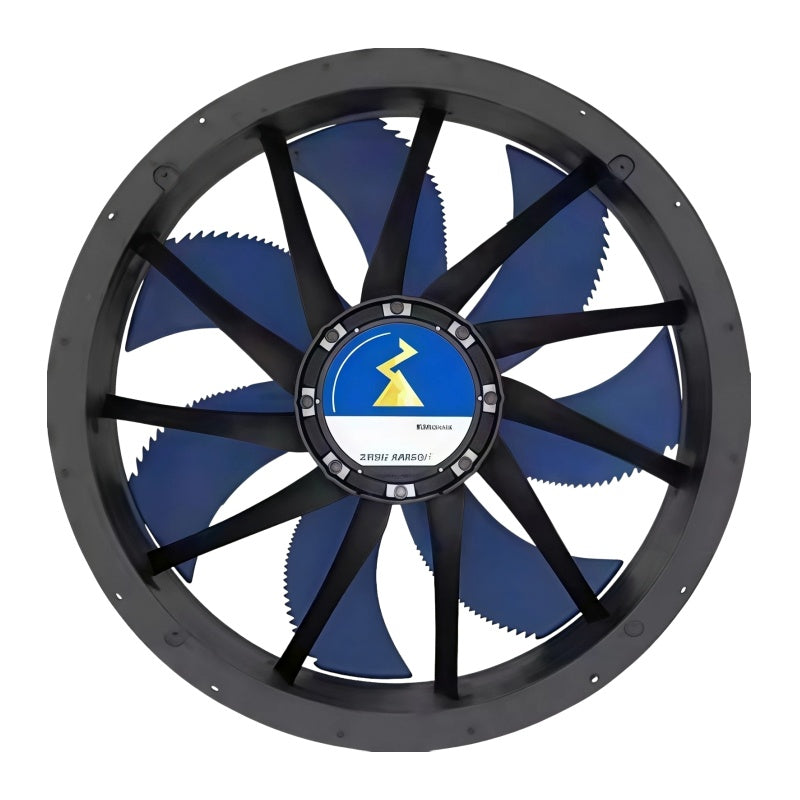

ZIEHL-ABEGG ZN080-ZIL.GL.V7P3 Axial Fan 800mm 400VAC 2.9kW
Available in stock (200)
Regular price
$2,786.93
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | ZN080-ZIL.GL.V7P3 |
| Product Category | Axial Fan |
| Series | ZAplus |
| Fan Size | 800 mm |
| Phase | 3-Phase |
| Rated Voltage | 400 VAC |
| Input Power | 2900 W |
| Current | 4.40 A |
| Speed | 1110 RPM |
| Suction-Side Sound Power Level | 88 dB(A) |
| Airflow Direction | L |
| Article Number | 180767/10C4 or 180767/10C6 |
| Weight | 45.2 kg / 46.7 kg |
Key Features
400 VAC 3-Phase Supply
The documented performance data uses a three-phase 400 VAC electrical supply.
2900 W Operating Point
At the documented characteristic operating point, input power is 2900 W with a current value of 4.40 A.
1110 RPM Speed
The documented maximum characteristic speed is 1110 RPM with a suction-side sound power level of 88 dB(A).
ZAplus Configuration
The ZN080-ZIL.GL.V7P3 uses the ZAplus fan system and is available with different guard grille arrangements under corresponding article numbers.
Transformer Cooling
This model is documented in ZIEHL-ABEGG technical literature for oil transformer cooling applications.
Applications
- Oil transformer cooling
- Transformer ventilation systems
- Industrial electrical equipment cooling
- Large equipment ventilation
- Industrial heat removal
- Industrial air circulation
- Power equipment ventilation
- Industrial cooling systems
Purchase Information
We support online purchase of the ZIEHL-ABEGG ZN080-ZIL.GL.V7P3 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG ZN080-ZIL.GL.V7P3?
ZIEHL-ABEGG ZN080-ZIL.GL.V7P3 is an 800 mm ZAplus axial fan documented for transformer cooling applications.
What is the fan size of ZN080-ZIL.GL.V7P3?
The documented fan size is 800 mm.
What voltage is documented for ZN080-ZIL.GL.V7P3?
The documented performance values are determined at 400 VAC with a three-phase electrical supply.
What is the documented input power?
At the 1110 RPM characteristic operating point, the documented input power is 2900 W.
What is the documented current?
At the 1110 RPM and 2900 W operating point, the documented current is 4.40 A.
What is the documented speed?
The documented characteristic performance range includes a maximum listed speed of 1110 RPM.
What is the documented sound power level?
At the 1110 RPM and 2900 W operating point, the documented suction-side sound power level is 88 dB(A).
What maximum ambient temperature is documented?
At the 1110 RPM characteristic, the documented maximum ambient temperature is 50°C.
What article numbers are documented?
Article 180767/10C4 is documented for the suction-side guard grille configuration, while 180767/10C6 is documented for the two-sided guard grille configuration.
What are the documented weights?
The suction-side guard grille configuration is documented at 45.2 kg, while the two-sided guard grille configuration is documented at 46.7 kg.
Can ZN080-ZIL.GL.V7P3 be considered for an existing system?
It can be considered after the complete model designation, guard grille configuration, electrical data, airflow requirements, dimensions and installation requirements have been checked against the existing system.
What should be checked before ordering ZN080-ZIL.GL.V7P3?
Check the complete model and article number together with the required voltage, operating point, airflow, pressure, dimensions, guard grille arrangement and installation requirements before ordering.
