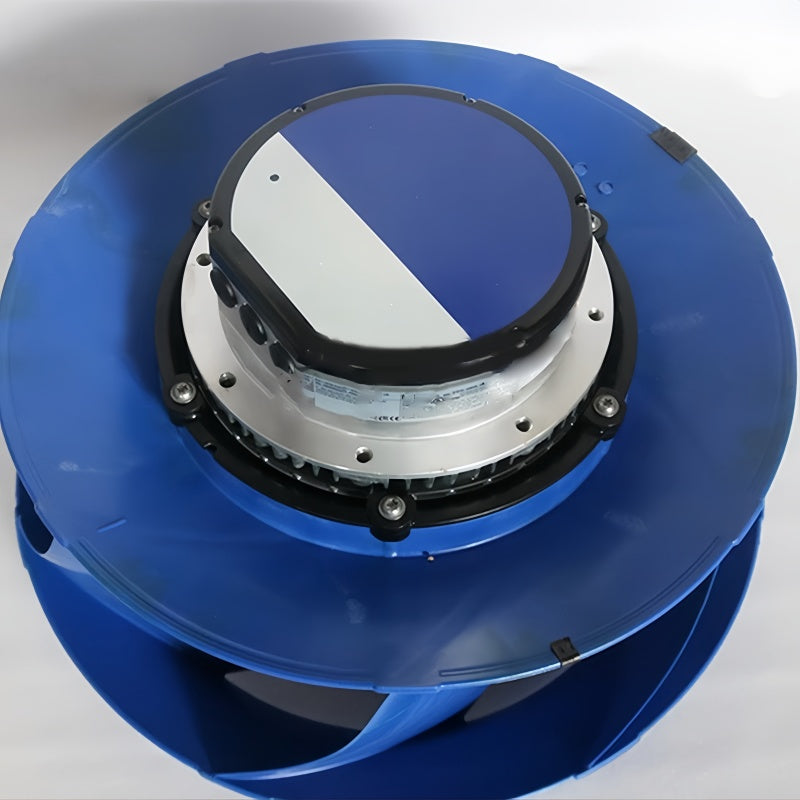

560 mm Centrifugal Fan
The RH56V-ZIK.GL.VR is a 560 mm centrifugal fan from the ZIEHL-ABEGG ZAvblue range with a backward-curved impeller.
ZIEHL-ABEGG RH56V-ZIK.GL.VR Centrifugal Fan 380-480 VAC 560 mm 3.50 kW
Available in stock (200)
Regular price
$2,185.43
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH56V-ZIK.GL.VR |
| Product Category | Centrifugal Fan |
| Series | ZAvblue |
| Fan Type | EC Centrifugal Fan |
| Fan Diameter | 560 mm |
| Motor Technology | EC |
| Power Supply | 3-Phase |
| Rated Voltage | 380-480 VAC |
| Frequency | 50/60 Hz |
| Power Input | 3.50 kW |
| Rated Current | 5.60-4.40 A |
| Rated Speed | 1550 RPM |
| Impeller Type | Backward-Curved |
| Impeller Material | High Performance Composite Material |
| Weight | 26.00 kg |
Key Features
EC Motor Technology
The fan combines an electronically commutated motor with an integrated centrifugal impeller for industrial air-moving applications.
380-480 VAC Supply
The documented electrical configuration operates from a three-phase 380-480 VAC supply at 50/60 Hz.
3.50 kW Input Power
Manufacturer catalogue data specifies 3.50 kW input power with a rated current range of 5.60-4.40 A.
1550 RPM Speed
The documented rated rotational speed for the RH56V-ZIK.GL.VR configuration is 1550 RPM.
Composite Impeller
The backward-curved impeller uses high performance composite material and has a nominal diameter of 560 mm.
Applications
- Air handling units
- HVAC systems
- Precision cooling equipment
- Data center cooling systems
- Industrial ventilation systems
- Industrial machinery cooling
- Process air systems
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH56V-ZIK.GL.VR Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH56V-ZIK.GL.VR?
It is a 560 mm EC centrifugal fan from the ZIEHL-ABEGG ZAvblue product range.
What voltage does RH56V-ZIK.GL.VR use?
Manufacturer catalogue data specifies a three-phase 380-480 VAC supply.
What frequency does the fan support?
The documented operating frequency is 50/60 Hz.
What is the power input?
The manufacturer catalogue specifies an input power of 3.50 kW.
What is the rated current?
The documented rated current range is 5.60-4.40 A.
What is the rated speed?
The documented rated speed is 1550 RPM.
What is the fan diameter?
The RH56V-ZIK.GL.VR has a nominal impeller diameter of 560 mm.
What type of impeller does the fan use?
The fan uses a backward-curved impeller made from high performance composite material.
What is the documented weight?
ZIEHL-ABEGG ordering information lists the RH design at 26.00 kg.
Where can RH56V-ZIK.GL.VR be used?
Typical applications include air handling units, HVAC systems, precision cooling equipment, data center cooling and industrial ventilation systems.
Is RH56V-ZIK.GL.VR the same as GR56V-ZIK.GL.VR?
No. RH and GR are separate installation designs and have different ordering information, so the complete model designation should be retained.
What should be checked before ordering RH56V-ZIK.GL.VR?
Check the complete model number, three-phase 380-480 VAC supply, 50/60 Hz frequency, 3.50 kW input power, 560 mm fan size, mounting arrangement and equipment requirements before purchasing.
