560 mm Centrifugal Impeller

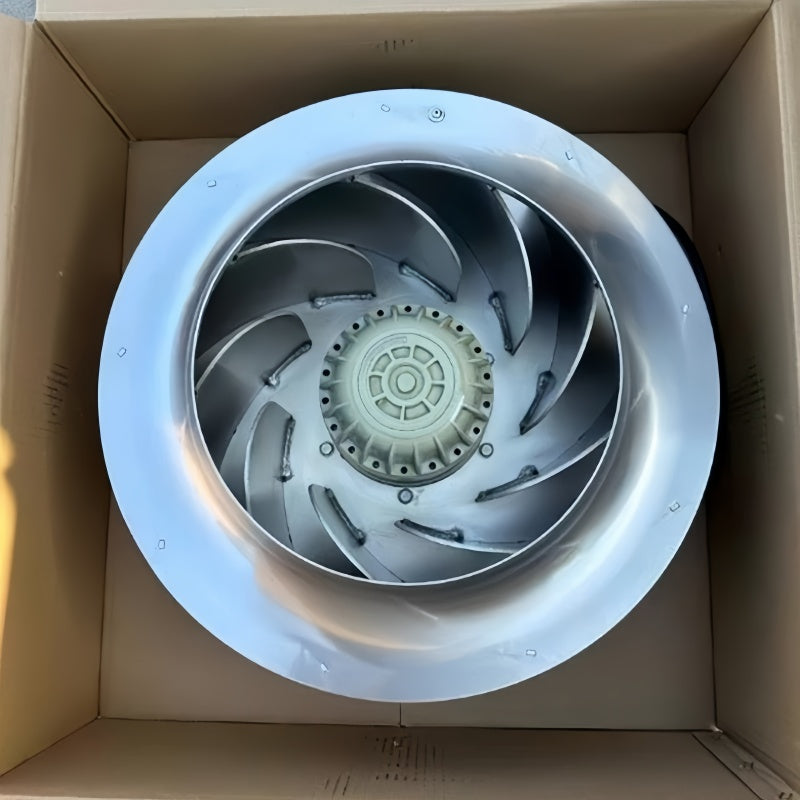

The RH56M-4DK.6K.1R is a 560 mm single-inlet motorized impeller with backward-curved blades for centrifugal airflow applications.
1 / 7
ZIEHL-ABEGG
ZIEHL-ABEGG RH56M-4DK.6K.1R Centrifugal Fan 560mm 400VAC 1.8kW
PRODUCT PRICE
USD
$1,699.37
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH56M-4DK.6K.1R |
| Product Category | Centrifugal Fan |
| Fan Design | Single-Inlet Motorized Impeller |
| Impeller Type | Backward-Curved |
| Impeller Diameter | 560 mm |
| Motor Type | Asynchronous External-Rotor Motor |
| Phase | 3-Phase |
| Rated Voltage | 3~ 400 VAC ±10% |
| Frequency | 50 Hz |
| Input Power | 1.8 kW |
| Rated Current | 3.4 A |
| Rated Speed | 1230 RPM |
| Starting Current | 10 A |
| Degree of Protection | IP54 |
| Connection Diagram | 106XA |
| Article Number with Side Cable | 120747 |
| Article Number with Terminal Box | 200864 |
| Weight | 23 kg |
Key Features
400 VAC 3-Phase Supply
The documented rated operating point uses a three-phase 400 VAC ±10% electrical supply at 50 Hz.
1.8 kW Input Power
The documented rated input power is 1.8 kW with a rated current of 3.4 A.
1230 RPM Rated Speed
The documented rated speed is 1230 RPM at the specified 400 VAC and 50 Hz operating point.
External-Rotor Motor
The RH Series configuration combines a backward-curved centrifugal impeller with an asynchronous external-rotor motor.
IP54 Protection
The documented degree of protection is IP54, with connection diagram 106XA specified for this model.
Applications
- Industrial ventilation systems
- Air handling equipment
- HVAC equipment
- Industrial machinery cooling
- Heat exchanger airflow
- Equipment heat removal
- Industrial air circulation
- Process ventilation systems
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH56M-4DK.6K.1R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH56M-4DK.6K.1R?
ZIEHL-ABEGG RH56M-4DK.6K.1R is a single-inlet centrifugal motorized impeller with backward-curved blades and an asynchronous external-rotor motor.
What is the impeller diameter of RH56M-4DK.6K.1R?
The documented impeller diameter is 560 mm.
What voltage does RH56M-4DK.6K.1R use?
The documented rated operating point uses a three-phase 400 VAC ±10% supply.
What is the rated frequency?
The documented rated operating frequency is 50 Hz.
What is the input power of RH56M-4DK.6K.1R?
The documented input power is 1.8 kW.
What is the rated current?
The documented rated current is 3.4 A.
What is the rated speed?
The documented rated speed is 1230 RPM.
What is the starting current?
The documented starting current is 10 A.
What is the degree of protection?
The documented degree of protection is IP54.
What article numbers are documented for RH56M-4DK.6K.1R?
Article 120747 is documented for the side-cable configuration, while article 200864 is documented for the terminal-box configuration.
Can RH56M-4DK.6K.1R be considered for an existing system?
It can be considered after the complete model designation, electrical data, airflow requirements, dimensions and mechanical installation requirements have been checked against the existing system.
What should be checked before ordering RH56M-4DK.6K.1R?
Check the complete model designation and article configuration together with the required voltage, frequency, power, current, speed, dimensions and installation requirements before ordering.
