560 mm Centrifugal Fan

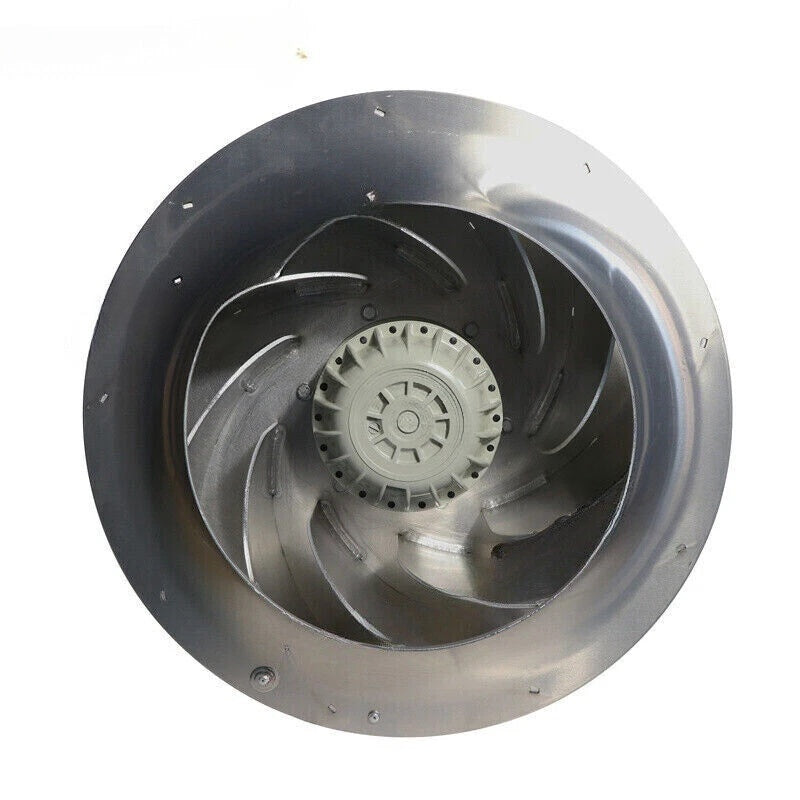

The RH56E-4DK.6N.1R is a single-inlet centrifugal motorized impeller with a nominal size of 560 mm.
ZIEHL-ABEGG RH56E-4DK.6N.1R Centrifugal Fan 400 VAC 2.5 kW 1320 RPM
Available in stock (200)
Regular price
$861.26
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH56E-4DK.6N.1R |
| Product Category | Centrifugal Fan |
| Article Number | 129263 |
| Fan Type | Single-Inlet Centrifugal Fan |
| Motor Technology | Asynchronous External Rotor Motor |
| Power Supply | 3-Phase |
| Rated Voltage | 400 VAC ±10% |
| Frequency | 50 Hz |
| Power Input | 2.5 kW |
| Rated Current | 4.5 A |
| Rated Speed | 1320 RPM |
| Nominal Size | 560 mm |
| Degree of Protection | IP54 |
| Weight | 29 kg |
| Electrical Connection | Side Connection Cable |
| Connection Diagram | 106XA |
Key Features
400 VAC Three-Phase Supply
The documented configuration operates from a three-phase 400 VAC ±10% supply at 50 Hz.
2.5 kW Power Input
The documented operating data specifies 2.5 kW power input with a rated current of 4.5 A.
1320 RPM Speed
The manufacturer catalogue specifies a nominal rotational speed of 1320 RPM for RH56E-4DK.6N.1R.
External Rotor Motor
The centrifugal impeller is combined with an asynchronous external rotor motor for industrial air-moving applications.
IP54 Protection
The documented configuration has an IP54 degree of protection and a maximum specified air temperature of 50°C.
Applications
- High-voltage variable frequency drive cabinets
- Industrial ventilation systems
- Air-conditioning equipment
- Industrial electrical cabinet cooling
- Air handling equipment
- Process ventilation systems
- Industrial machinery cooling
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH56E-4DK.6N.1R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH56E-4DK.6N.1R?
It is a single-inlet centrifugal motorized impeller with an asynchronous external rotor motor.
What is the article number?
The documented article number for the side connection cable configuration is 129263.
What voltage does RH56E-4DK.6N.1R use?
The manufacturer catalogue specifies a three-phase 400 VAC ±10% supply at 50 Hz.
What is the power input?
The documented power input is 2.5 kW.
What is the rated current?
The documented rated current at 400 VAC and 50 Hz is 4.5 A.
What is the rated speed?
The documented nominal rotational speed is 1320 RPM.
What is the nominal fan size?
The RH56E-4DK.6N.1R is identified as a 560 mm centrifugal fan.
What is the protection rating?
The documented degree of protection is IP54.
What is the maximum specified air temperature?
The documented maximum air temperature is 50°C.
What is the documented weight?
The manufacturer catalogue lists a weight of 29 kg.
Where can RH56E-4DK.6N.1R be used?
Applications include industrial ventilation, air handling, equipment cooling and ventilation of high-voltage variable frequency drive cabinets.
What should be checked before ordering RH56E-4DK.6N.1R?
Check the complete model number, article number 129263, 400 VAC three-phase supply, 50 Hz frequency, 2.5 kW power input, mounting arrangement and existing system requirements before purchasing.
