560 mm Cpro Impeller

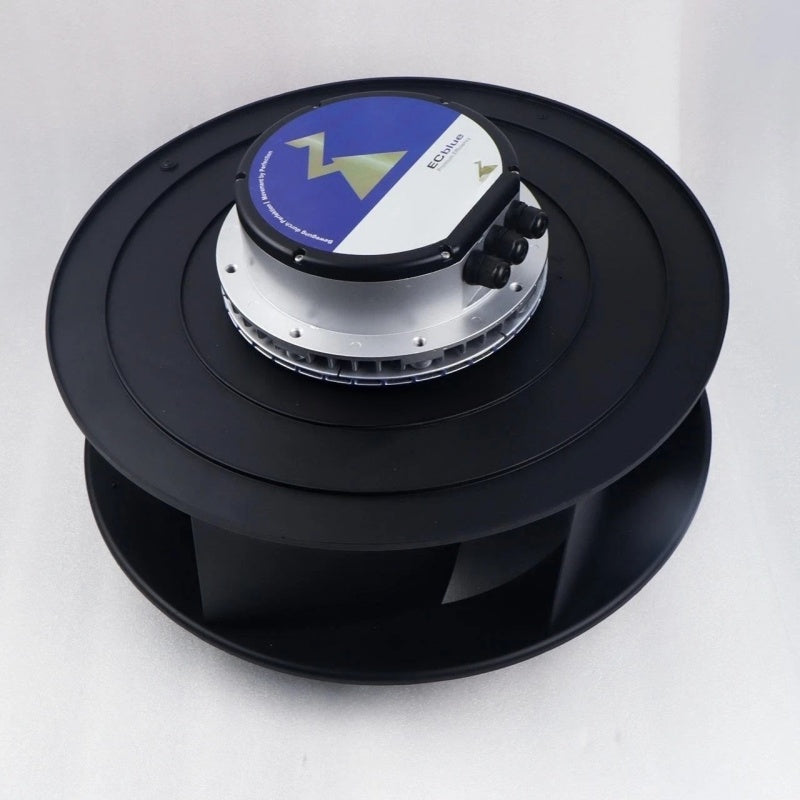

The RH56C-ZID.GL.CR is a 560 mm Cpro centrifugal motorized impeller designed with backward-curved blades.
ZIEHL-ABEGG RH56C-ZID.GL.CR Centrifugal Fan 560mm 380-480VAC 5kW
Available in stock (200)
Regular price
$2,039.34
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH56C-ZID.GL.CR |
| Product Category | Centrifugal Fan |
| Article Number | 116161 |
| Series | Cpro |
| Fan Design | Single-Inlet Motorized Impeller |
| Impeller Type | Backward-Curved |
| Nominal Size | 560 mm |
| Motor Technology | EC |
| Rated Voltage | 3~ 380-480 VAC |
| Frequency | 50/60 Hz |
| Rated Input Power | 5.0 kW |
| Rated Current | 8.0-6.4 A |
| Rated Speed | 1750 RPM |
| Maximum Airflow | Approx. 17,900 m³/h |
| Maximum Pressure | Approx. 1350 Pa |
| Degree of Protection | IP54 |
| Motor Protection | Integrated with Alarm Contact |
| Control Signal | 0-10 V |
| Communication | Modbus |
Key Features
EC Motor Technology
The documented configuration uses electronically commutated motor technology with integrated motor control.
380-480 VAC Supply
The documented rated electrical range is three-phase 380-480 VAC with 50/60 Hz operation.
5 kW Rated Input
Article 116161 is documented with 5.0 kW rated input power, 8.0-6.4 A rated current and 1750 RPM rated speed.
0-10 V Control
The documented motor control interface supports a 0-10 V control signal for speed control within the system configuration.
Modbus Communication
The documented configuration supports Modbus communication and incorporates motor protection with an alarm contact.
Applications
- Industrial ventilation systems
- Air handling units
- HVAC equipment
- Process air systems
- Industrial machinery cooling
- Heat exchanger airflow
- Equipment heat removal
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH56C-ZID.GL.CR Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH56C-ZID.GL.CR?
It is a 560 mm Cpro EC centrifugal motorized impeller with backward-curved blades.
What is the article number of RH56C-ZID.GL.CR?
The documented article number for this configuration is 116161.
What voltage does RH56C-ZID.GL.CR use?
The documented rated voltage range is three-phase 380-480 VAC.
What is the rated input power?
The documented rated input power is 5.0 kW.
What is the rated current?
The documented rated current range is 8.0-6.4 A across the specified voltage range.
What is the rated speed?
The documented rated speed is 1750 RPM.
What airflow can RH56C-ZID.GL.CR provide?
Published data for article 116161 lists maximum airflow of approximately 17,900 m³/h, subject to the system operating point.
What pressure is documented?
Published data lists maximum pressure of approximately 1350 Pa, subject to the fan operating point and system resistance.
What control signal is supported?
The documented motor control signal is 0-10 V.
Does RH56C-ZID.GL.CR support communication?
Yes. The documented configuration supports Modbus communication.
Can RH56C-ZID.GL.CR be considered for an existing system?
It can be considered after the complete model and article number, voltage, power, current, speed, airflow, pressure, control interface, communication requirements, dimensions and installation arrangement have been checked against the existing system.
What should be checked before ordering RH56C-ZID.GL.CR?
Check the complete model and article number together with the required voltage, power, current, speed, airflow, pressure, 0-10 V control, Modbus requirements, dimensions and mechanical installation before ordering.
