315 mm Centrifugal Impeller

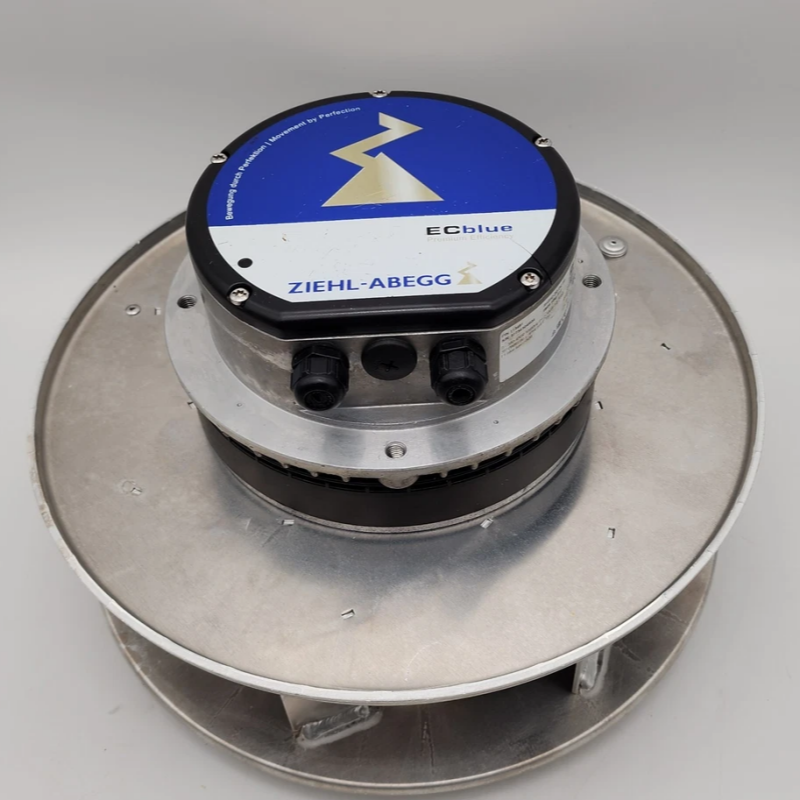

The RH31C-ZID.DC.1R is a 315 mm single-inlet centrifugal motorized impeller with backward-curved blades.
ZIEHL-ABEGG RH31C-ZID.DC.1R Centrifugal Fan 315mm 380-480VAC 2.2kW
Available in stock (200)
Regular price
$3,049.64
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH31C-ZID.DC.1R |
| Product Category | Centrifugal Fan |
| Series | C Series |
| Fan Design | Single-Inlet Motorized Impeller |
| Impeller Type | Backward-Curved |
| Nominal Size | 315 mm |
| Motor Technology | EC |
| Phase | 3-Phase |
| Rated Voltage | 3~ 380-480 VAC |
| Frequency | 50/60 Hz |
| Input Power | 2.20 kW |
| Rated Current | 3.60-2.85 A |
| Rated Speed | 3550 RPM |
| Degree of Protection | IP54 |
| Electrical Connection | Integrated Controller |
| Motor Protection | Integrated Active Temperature Management |
| Installation Position | H / Vu / Vo |
| Weight | 10.00 kg |
Key Features
EC Motor Technology
The documented configuration uses electronically commutated motor technology with an integrated controller.
380-480 VAC Supply
The three-phase configuration operates across a documented rated voltage range of 380-480 VAC at 50/60 Hz.
2.20 kW Input Power
The documented 380-480 VAC configuration has 2.20 kW input power and a rated current range of 3.60-2.85 A.
3550 RPM Speed
The documented rated speed for the 380-480 VAC, 2.20 kW configuration is 3550 RPM.
Integrated Motor Control
The EC motor incorporates an integrated controller and active temperature management for system operation and motor protection.
Applications
- Industrial ventilation systems
- Air handling equipment
- HVAC equipment
- Industrial refrigeration systems
- Process air systems
- Industrial machinery cooling
- Equipment heat removal
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH31C-ZID.DC.1R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH31C-ZID.DC.1R?
It is a 315 mm single-inlet centrifugal motorized impeller with backward-curved blades and EC motor technology.
What voltage does RH31C-ZID.DC.1R use?
The documented three-phase configuration used on this page has a rated voltage range of 380-480 VAC.
What is the input power?
The documented input power for the 380-480 VAC configuration is 2.20 kW.
What is the rated current?
The documented rated current range is 3.60-2.85 A across the specified voltage range.
What is the rated speed?
The documented rated speed is 3550 RPM.
What motor technology does RH31C-ZID.DC.1R use?
The fan uses EC motor technology with an integrated controller.
What is the degree of protection?
The documented degree of protection for this configuration is IP54.
What installation positions are specified?
The documented installation positions are H, Vu and Vo.
Are there different electrical configurations of RH31C-ZID.DC.1R?
Yes. Manufacturer documentation lists RH31C-ZID.DC.1R in more than one electrical configuration, including a single-phase 200-277 VAC version. The electrical ratings and article number should therefore be checked before ordering.
What is the documented weight?
Manufacturer ordering information lists a fan weight of approximately 10.00 kg.
Can RH31C-ZID.DC.1R be considered for an existing system?
It can be considered after the complete model designation, electrical configuration, voltage, power, current, speed, controller, airflow requirements, dimensions and installation arrangement have been checked against the existing system.
What should be checked before ordering RH31C-ZID.DC.1R?
Check the complete model designation and applicable article number together with the required voltage, phase, power, current, speed, controller, dimensions, airflow requirements and installation arrangement before ordering.
