250 mm Centrifugal Impeller
The RH25V-6IK.BA.VR is a 250 mm free-running motorized centrifugal impeller with backward-curved blades.

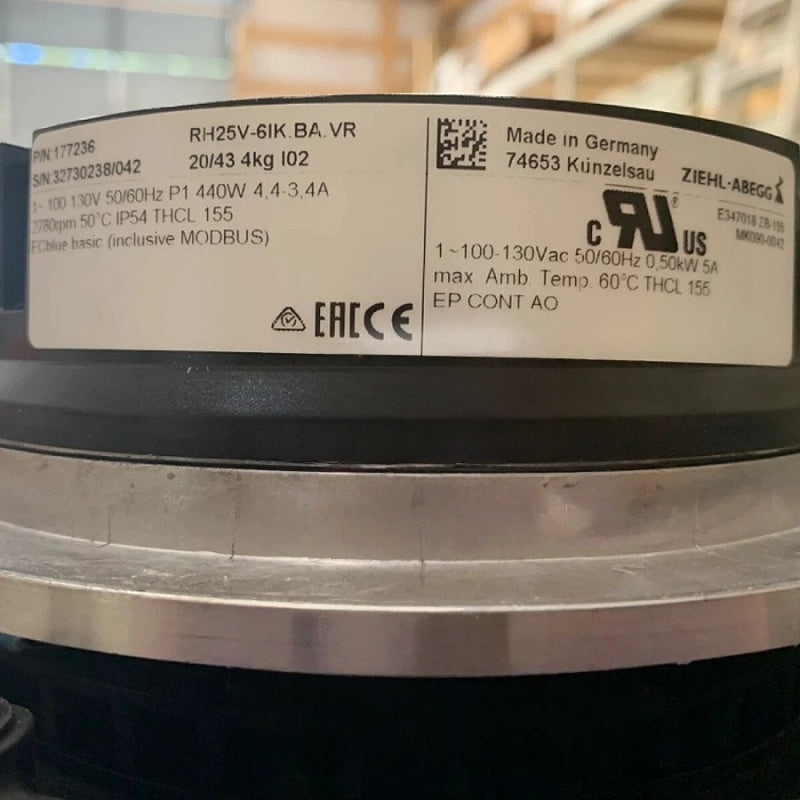

ZIEHL-ABEGG RH25V-6IK.BA.VR Centrifugal Fan 250mm 200-277VAC 660W
Available in stock (200)
Regular price
$1,488.31
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH25V-6IK.BA.VR |
| Product Category | Centrifugal Fan |
| Series | ZAvblue |
| Fan Design | Free-Running Motorized Impeller |
| Impeller Type | Backward-Curved |
| Nominal Size | 250 mm |
| Motor Technology | EC |
| Motor | BA |
| Article Number | 115775 |
| Rated Voltage | 1~ 200-277 VAC |
| Rated Frequency | 50/60 Hz |
| Input Power | 660 W |
| Rated Current | 3.30-2.40 A |
| Rated Speed | 3250 RPM |
| Degree of Protection | IP54 |
| Thermal Class | 155 |
| Motor Protection | Integrated Active Temperature Management |
| Electrical Connection | Integrated Controller |
| Impeller Material | High-Performance Composite Material |
| Balancing Quality | G 6.3 |
| Installation Position | H / Vu / Vo |
| Connection Diagram | 1360-384 |
| Weight | 4.30 kg |
Key Features
EC Motor Technology
The BA motor configuration uses electronically commutated technology with an integrated controller and active temperature management.
200-277 VAC Supply
The documented rated electrical range is single-phase 200-277 VAC with 50/60 Hz operation.
660 W Rated Input
Article 115775 is documented with 660 W input power, 3.30-2.40 A rated current and a rated speed of 3250 RPM.
Composite Impeller
The backward-curved impeller is documented as high-performance composite material.
IP54 Protection
The documented configuration has IP54 protection, thermal class 155 and balancing quality G 6.3.
Applications
- Industrial ventilation systems
- Air handling equipment
- HVAC equipment
- Industrial refrigeration systems
- Heat exchanger airflow
- Industrial machinery cooling
- Equipment heat removal
- Process air systems
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH25V-6IK.BA.VR Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH25V-6IK.BA.VR?
It is a 250 mm ZAvblue EC centrifugal motorized impeller with backward-curved blades.
What article number corresponds to the 660 W configuration?
The documented article number for the 660 W configuration is 115775.
What voltage does RH25V-6IK.BA.VR use?
The documented rated voltage range is single-phase 200-277 VAC.
What is the rated input power?
Article 115775 is documented with 660 W input power.
What is the rated current?
The documented rated current range is 3.30-2.40 A across the specified voltage range.
What is the rated speed?
The documented rated speed for article 115775 is 3250 RPM.
What motor technology is used?
The fan uses EC motor technology with an integrated controller.
What is the degree of protection?
The documented degree of protection is IP54.
What material is used for the impeller?
The impeller is documented as high-performance composite material.
Are there different configurations under the same RH25V-6IK.BA.VR type?
Yes. Manufacturer catalogue data also lists article 115774 under the same type designation with 440 W input power and 2860 RPM, so the article number and rated data should be checked before ordering.
Can RH25V-6IK.BA.VR be considered for an existing system?
It can be considered after the complete model designation, article number, electrical ratings, control requirements, airflow performance, dimensions and installation arrangement have been checked against the existing system.
What should be checked before ordering RH25V-6IK.BA.VR?
Check the complete model and article number together with the required voltage, power, current, speed, control interface, dimensions and airflow requirements before ordering.
