225 mm L Series Fan
The RH22L-2EP.WC.4R is a ZIEHL-ABEGG L series centrifugal motorized impeller in the 225 mm size class.
1 / 7
ZIEHL-ABEGG

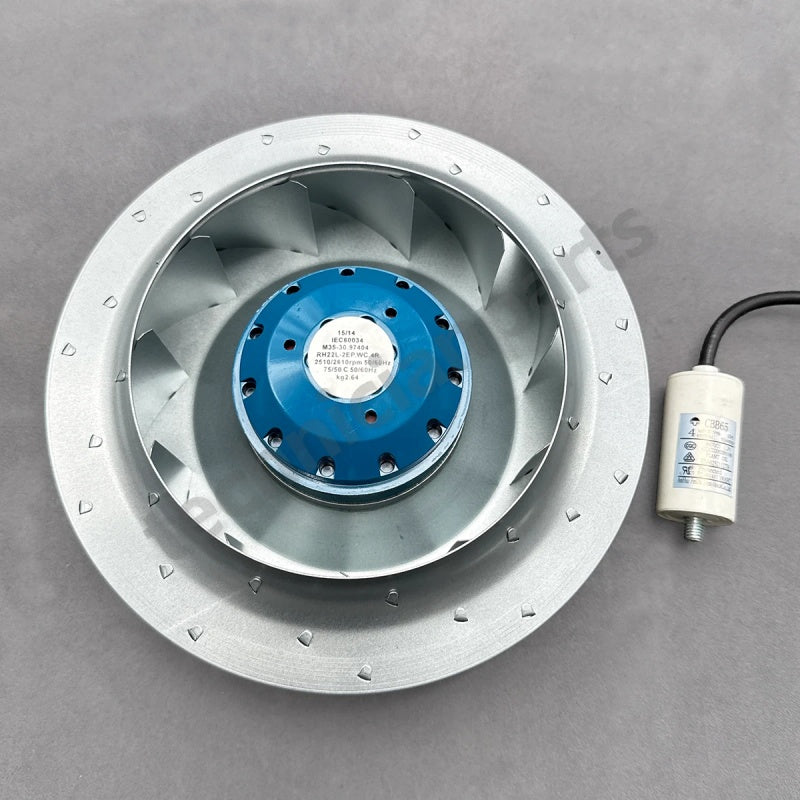

ZIEHL-ABEGG RH22L-2EP.WC.4R Centrifugal Fan 225mm 230VAC 120W
PRODUCT PRICE
USD
$638.41
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RH22L-2EP.WC.4R |
| Product Category | Centrifugal Fan |
| Article Number | 161615 |
| Series | L Series |
| Fan Design | Single-Inlet Motorized Impeller |
| Nominal Size | 225 mm |
| Phase | Single-Phase |
| Rated Voltage | 1~ 230 VAC |
| Rated Current | 0.52 A |
| Motor Input Power | 120 W |
| Rated Speed | 2180 RPM |
| Suction-Side Sound Power Level | 64 dB |
| Installation Position | H / Vu / Vo |
| Electrical Connection | Variable Supply Cable, 45 cm |
| Weight | 2.64 kg |
Key Features
230 VAC Single-Phase Supply
The documented rated operating point uses a single-phase 230 VAC electrical supply.
120 W Rated Input
At the catalogue rated operating point, motor input power is 120 W with a current of 0.52 A.
2180 RPM Rated Speed
The documented rated operating point specifies a rotational speed of 2180 RPM.
Multiple Operating Points
The manufacturer catalogue provides characteristic data across several voltage and operating points for system selection and control.
Flexible Installation
The documented installation positions are H, Vu and Vo, with electrical connection through a variable 45 cm supply cable.
Applications
- Industrial ventilation systems
- Air handling equipment
- HVAC equipment
- Industrial refrigeration equipment
- Industrial machinery cooling
- Equipment heat removal
- Process air systems
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG RH22L-2EP.WC.4R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RH22L-2EP.WC.4R?
It is an L series centrifugal motorized impeller in the 225 mm size class.
What is the article number of RH22L-2EP.WC.4R?
The manufacturer L series catalogue lists article number 161615 for this configuration.
What voltage is specified at the rated operating point?
The documented rated operating point uses 230 VAC single-phase power.
What is the rated motor input power?
The manufacturer catalogue specifies 120 W at the rated operating point.
What is the rated current?
The documented rated current is 0.52 A.
What is the rated speed?
The documented rated speed is 2180 RPM.
What sound power level is specified at the rated point?
The suction-side sound power level is documented as 64 dB at the rated operating point.
What installation positions are specified?
The documented installation positions are H, Vu and Vo.
What electrical connection is specified?
The catalogue specifies a variable supply cable with a length of 45 cm.
What is the documented fan weight?
The manufacturer ordering information lists a weight of 2.64 kg.
Can RH22L-2EP.WC.4R be considered for an existing system?
It can be considered after the complete model, article number, voltage, current, power, speed, dimensions, airflow requirements and installation arrangement have been checked against the existing system.
What should be checked before ordering RH22L-2EP.WC.4R?
Check the complete model and article number together with the required electrical operating point, dimensions, airflow performance, installation position and connection requirements before ordering.
