Single-Inlet Centrifugal Fan
The RG28P-4EK.4l.1R is identified as a single-inlet centrifugal fan for industrial airflow applications.

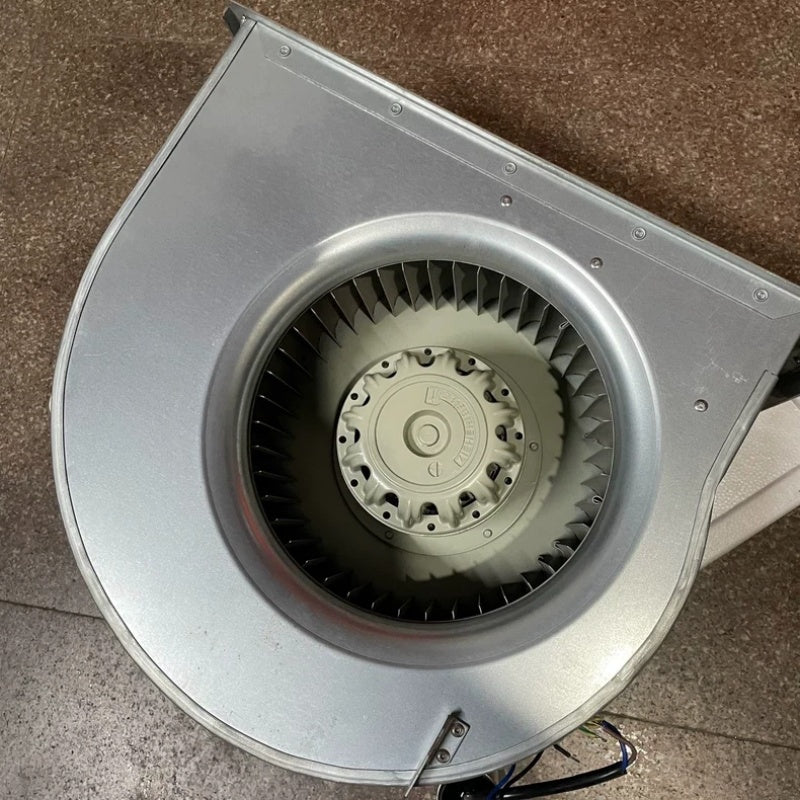

ZIEHL-ABEGG RG28P-4EK.4l.1R Centrifugal Fan 230VAC 0.69kW 1360RPM
Available in stock (200)
Regular price
$667.83
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | RG28P-4EK.4l.1R |
| Product Category | Centrifugal Fan |
| Fan Type | Single-Inlet Centrifugal Fan |
| Rated Voltage | 1~ 230 VAC ±15% |
| Rated Frequency | 50/60 Hz |
| Power Input | 0.69 kW at 50 Hz / 1.05 kW at 60 Hz |
| Rated Current | 3.0 A at 50 Hz / 4.5 A at 60 Hz |
| Speed | 1360 RPM at 50 Hz / 1440 RPM at 60 Hz |
| Capacitor | 14 µF / 400 V |
| Minimum Pressure | 250 Pa at 50 Hz / 450 Pa at 60 Hz |
| Protection Rating | IP10 |
| Thermal Class | THCL155 |
Key Features
230 VAC Operation
The documented electrical data specifies single-phase 230 VAC operation.
50/60 Hz Operation
Electrical operating data is documented for both 50 Hz and 60 Hz supply frequencies.
0.69/1.05 kW Power Input
The documented power input is 0.69 kW at 50 Hz and 1.05 kW at 60 Hz.
1360/1440 RPM Speed
The documented rotational speed is 1360 RPM at 50 Hz and 1440 RPM at 60 Hz.
3.0/4.5 A Rated Current
The documented current is 3.0 A at 50 Hz and 4.5 A at 60 Hz.
Applications
- Industrial equipment ventilation
- Industrial machinery cooling
- Electrical equipment cooling
- Industrial air circulation
- Equipment heat removal
- Industrial ventilation systems
- Air handling applications
- Industrial airflow systems
Purchase Information
We support online purchase of the ZIEHL-ABEGG RG28P-4EK.4l.1R Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG RG28P-4EK.4l.1R?
ZIEHL-ABEGG RG28P-4EK.4l.1R is a single-inlet centrifugal fan for industrial airflow applications.
Is the character in .4l. of RG28P-4EK.4l.1R the letter l?
Yes. The specified model designation is RG28P-4EK.4l.1R, with the letter l in the .4l. section.
What voltage does RG28P-4EK.4l.1R use?
The documented electrical data specifies single-phase 230 VAC operation.
What frequencies does RG28P-4EK.4l.1R support?
The documented operating data covers 50 Hz and 60 Hz.
What is the power input of RG28P-4EK.4l.1R?
The documented power input is 0.69 kW at 50 Hz and 1.05 kW at 60 Hz.
What is the rated current of RG28P-4EK.4l.1R?
The documented current is 3.0 A at 50 Hz and 4.5 A at 60 Hz.
What is the speed of RG28P-4EK.4l.1R?
The documented speed is 1360 RPM at 50 Hz and 1440 RPM at 60 Hz.
What capacitor specification is documented for RG28P-4EK.4l.1R?
The documented capacitor specification is 14 µF / 400 V.
What is the protection rating of RG28P-4EK.4l.1R?
The documented protection rating is IP10.
What applications can RG28P-4EK.4l.1R be considered for?
It can be considered for industrial equipment ventilation, machinery cooling and industrial airflow applications after system requirements have been checked.
What should be verified before using RG28P-4EK.4l.1R in an existing system?
The complete model number, supply voltage, frequency, power, current, speed and mechanical installation requirements should be checked against the existing system.
What should be checked before ordering RG28P-4EK.4l.1R?
Check the complete RG28P-4EK.4l.1R designation, including the letter l, together with the required electrical and mechanical specifications before ordering.
