Cross-Flow Fan Design
The QK08B-2EM.50.CH is a tangential cross-flow fan designed to generate airflow across an extended discharge width.

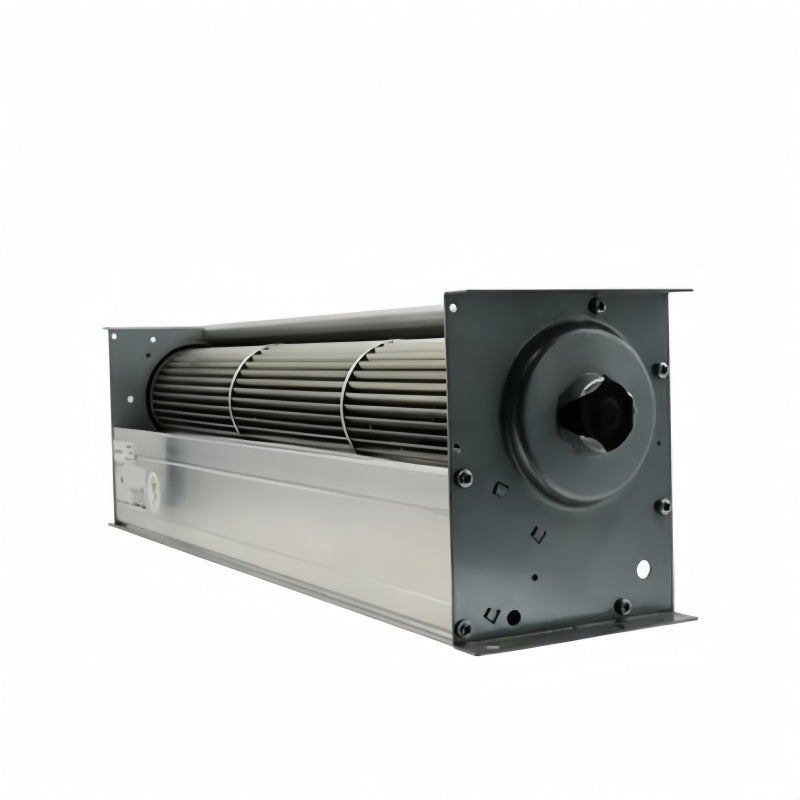

ZIEHL-ABEGG QK08B-2EM.50.CH Cross-Flow Fan 230V 270W 2470rpm
Available in stock (200)
Regular price
$674.80
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | QK08B-2EM.50.CH |
| Product Category | Cross-Flow Fan |
| Fan Type | Tangential Blower |
| Phase | Single Phase |
| Rated Voltage | 230 V AC |
| Voltage Range | 220-240 V AC |
| Rated Frequency | 50/60 Hz |
| Power Input at 50 Hz | 0.27 kW |
| Power Input at 60 Hz | 0.28 kW |
| Rated Speed at 50 Hz | 2470 rpm |
| Rated Current | 1.2 A |
| Dimensions | 628 x 160 x 130 mm |
| Weight | 5 kg |
| Degree of Protection | IP10 |
Key Features
230 V AC Supply
The documented electrical configuration uses a single-phase 230 V AC supply with a specified 220-240 V operating range.
270 W at 50 Hz
The documented 50 Hz operating point specifies 0.27 kW input power.
2470 rpm Speed
The documented nominal speed at 50 Hz is 2470 rpm.
50/60 Hz Operation
The model is documented for both 50 Hz and 60 Hz operation, with 0.28 kW input power specified at 60 Hz.
Extended Fan Geometry
The documented overall dimensions are approximately 628 x 160 x 130 mm for integration into elongated airflow systems.
Applications
- Industrial ventilation equipment
- Air curtain systems
- Electrical equipment cooling
- Industrial machinery airflow
- Heating and cooling equipment
- Air distribution systems
- Cabinet ventilation systems
- Process equipment cooling
Purchase Information
We support online purchase of the ZIEHL-ABEGG QK08B-2EM.50.CH Cross-Flow Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG QK08B-2EM.50.CH?
It is a single-phase AC cross-flow fan, also described as a tangential blower.
What voltage does QK08B-2EM.50.CH use?
The documented nominal voltage is 230 V AC with a specified 220-240 V AC range.
What frequency is supported?
The documented rated frequency is 50/60 Hz.
What is the power input at 50 Hz?
The documented power input is 0.27 kW at 50 Hz.
What is the power input at 60 Hz?
The documented power input is 0.28 kW at 60 Hz.
What is the nominal speed at 50 Hz?
The documented nominal speed is 2470 rpm.
What is the rated current?
Available product data identify a rated current of 1.2 A.
What are the dimensions of QK08B-2EM.50.CH?
The documented dimensions are approximately 628 x 160 x 130 mm.
What is the documented weight?
The documented weight is approximately 5 kg.
What degree of protection is specified?
Available product data specify IP10.
What temperature limit is documented?
Available product data specify a maximum ambient temperature of 70 °C.
What should be checked before ordering QK08B-2EM.50.CH?
Check the complete model designation, voltage, frequency, power, current, dimensions, mounting requirements and required airflow characteristics against the equipment documentation.
