560 mm Centrifugal Fan

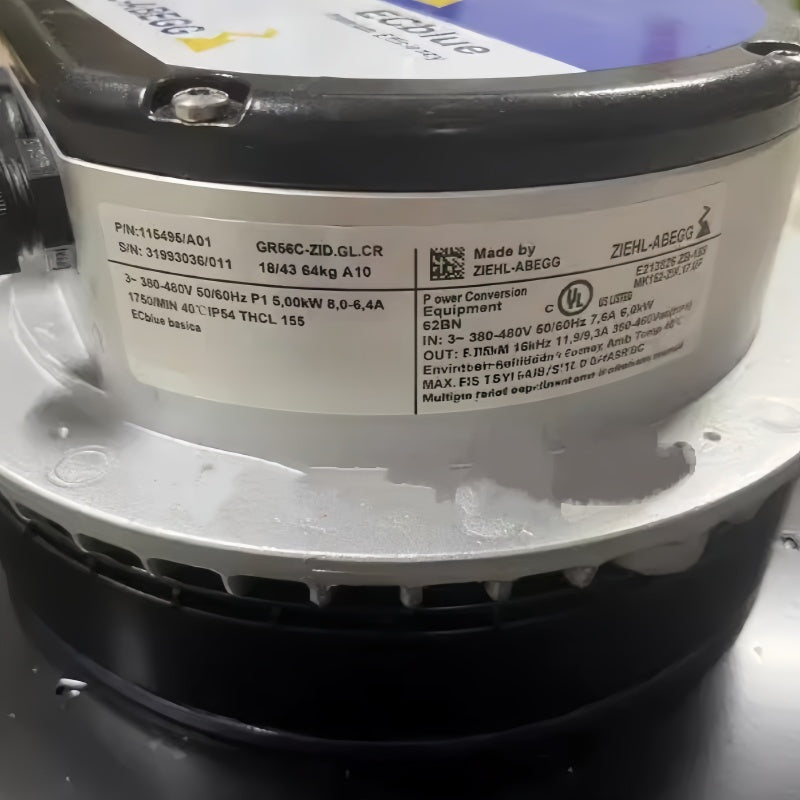

The GR56C-ZID.GL.CR is a 560 mm Cpro-ECblue ventilation module with a backward-curved centrifugal impeller.
ZIEHL-ABEGG GR56C-ZID.GL.CR Centrifugal Fan 560mm 380-480VAC 5kW
Available in stock (200)
Regular price
$1,843.75
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | GR56C-ZID.GL.CR |
| Product Category | Centrifugal Fan |
| Article Number | 116181/A01 |
| Series | Cpro-ECblue |
| Fan Design | Ventilation Module with Backward-Curved Impeller |
| Nominal Size | 560 mm |
| Motor Technology | ECblue |
| Phase | 3-Phase |
| Rated Voltage | 3~ 380-480 VAC |
| Frequency | 50/60 Hz |
| Rated Input Power | 5.00 kW |
| Rated Current | 8.00-6.40 A |
| Rated Speed | 1750 RPM |
| Degree of Protection | IP55 |
| Thermal Class | 155 |
| Efficiency Class | IE5 |
| Electrical Connection | Integrated Controller |
| Controller | ECblue BASIC-MODBUS |
| Motor Protection | Integrated Active Temperature Management |
| Balancing Quality | G 2.5 |
| Bearing Type | Ball Bearing with Long-Time Lubrication |
| Installation Position | H / Vu / Vo |
| Weight | 63.00 kg |
Key Features
ECblue Motor Technology
The documented configuration combines an ECblue motor with an integrated electronic controller.
380-480 VAC Supply
The documented electrical configuration uses a three-phase 380-480 VAC supply and supports 50/60 Hz operation.
5 kW Rated Input
Article 116181/A01 is documented with 5.00 kW rated input power, 8.00-6.40 A rated current and 1750 RPM rated speed.
ECblue BASIC-MODBUS
The documented configuration uses an integrated ECblue BASIC-MODBUS controller for system control and communication.
IP55 Protection
The documented configuration has IP55 protection, thermal class 155, IE5 efficiency class and integrated active temperature management.
Applications
- Air handling units
- Industrial ventilation systems
- HVAC equipment
- Process air systems
- Industrial machinery cooling
- Heat exchanger airflow
- Equipment heat removal
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG GR56C-ZID.GL.CR Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG GR56C-ZID.GL.CR?
It is a Cpro-ECblue ventilation module with a 560 mm backward-curved centrifugal impeller.
What article number is documented for GR56C-ZID.GL.CR?
The documented configuration used on this page is article 116181/A01.
What voltage does GR56C-ZID.GL.CR use?
The documented rated voltage range is three-phase 380-480 VAC.
Does GR56C-ZID.GL.CR support 50 and 60 Hz?
Yes. The documented nominal data specifies 50/60 Hz operation.
What is the rated input power?
The documented rated input power is 5.00 kW.
What is the rated current?
The documented rated current range is 8.00-6.40 A across the specified voltage range.
What is the rated speed?
The documented rated speed is 1750 RPM.
What is the degree of protection?
The documented degree of protection for article 116181/A01 is IP55.
What controller is used?
The documented configuration uses an integrated ECblue BASIC-MODBUS controller.
What motor protection is provided?
The documented configuration uses integrated active temperature management.
Can GR56C-ZID.GL.CR be considered for an existing system?
It can be considered after the complete model and article number, voltage, power, current, speed, controller, communication requirements, airflow performance, dimensions and installation arrangement have been checked against the existing system.
What should be checked before ordering GR56C-ZID.GL.CR?
Check the complete model and article number together with the required voltage, frequency, power, current, speed, controller, communication interface, dimensions, airflow requirements and installation arrangement before ordering.
