ZApilot Centrifugal Fan
The GR22V-4IP.ZC.BR is a ZIEHL-ABEGG ZApilot centrifugal fan identified by article number 178089.
1 / 7
ZIEHL-ABEGG

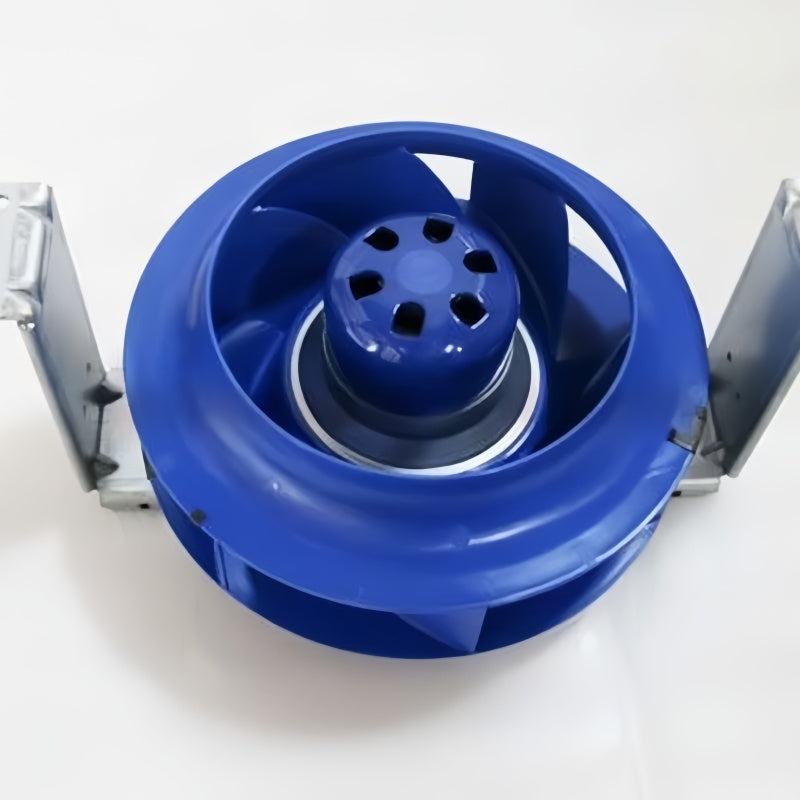

ZIEHL-ABEGG GR22V-4IP.ZC.BR Centrifugal Fan 230 VAC 220 mm 170 W
PRODUCT PRICE
USD
$491.87
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | GR22V-4IP.ZC.BR |
| Product Category | Centrifugal Fan |
| Article Number | 178089 |
| Series | ZApilot |
| Fan Type | EC Centrifugal Fan |
| Nominal Size | 220 mm |
| Supply Voltage | 200-240 VAC |
| Nominal Voltage | 230 VAC |
| Frequency | 50/60 Hz |
| Power Input | 170 W |
| Speed | 2810 RPM |
| Maximum Air Flow | 1480 m³/h |
| Maximum Pressure | 810 Pa |
| Degree of Protection | IP54 |
| Dimensions | 270 x 270 x 132 mm |
| Rotation Direction | Clockwise |
Key Features
230 VAC EC Configuration
The fan uses EC motor technology with a documented 200-240 VAC supply range and 50/60 Hz operation.
170 W Power Input
The documented electrical data specifies 170 W power input for the GR22V-4IP.ZC.BR configuration.
2810 RPM Speed
Exact-model technical data specifies a rotational speed of 2810 RPM.
1480 m³/h Air Flow
The documented fan performance data lists maximum airflow of 1480 m³/h and maximum pressure of 810 Pa.
IP54 Protection
The documented configuration has an IP54 degree of protection and an operating temperature range from -30°C to +60°C.
Applications
- Industrial ventilation systems
- Air handling equipment
- HVAC equipment
- Industrial machinery cooling
- Electrical equipment cooling
- Process air systems
- Industrial air circulation
- Centrifugal fan system maintenance
Purchase Information
We support online purchase of the ZIEHL-ABEGG GR22V-4IP.ZC.BR Centrifugal Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG GR22V-4IP.ZC.BR?
It is a ZApilot EC centrifugal fan identified by ZIEHL-ABEGG article number 178089.
What is the article number?
The manufacturer identifies GR22V-4IP.ZC.BR as article number 178089.
What voltage does GR22V-4IP.ZC.BR use?
The documented supply range is 200-240 VAC with a nominal voltage of 230 VAC.
What is the power input?
Exact-model technical data specifies a power input of 170 W.
What is the fan speed?
The documented rotational speed is 2810 RPM.
What is the maximum airflow?
The documented maximum airflow is 1480 m³/h.
What is the maximum pressure?
Exact-model technical data lists a maximum pressure of 810 Pa.
What is the nominal fan size?
The GR22V-4IP.ZC.BR has a nominal fan size of 220 mm.
What is the protection rating?
The documented degree of protection is IP54.
What is the working temperature range?
The documented working temperature range is -30°C to +60°C.
What are the fan dimensions?
Exact-model product data lists overall dimensions of 270 x 270 x 132 mm.
What should be checked before ordering GR22V-4IP.ZC.BR?
Check the complete model number, article number 178089, 200-240 VAC supply, 220 mm nominal size, airflow requirements, dimensions and installation requirements before purchasing.
Need help confirming a model?
Send us your part number and technical requirements.
