800 mm Axial Fan
The FN080-SDK.6N.V7P5 is an 800 mm ZIEHL-ABEGG axial fan configured for large-volume industrial airflow applications.

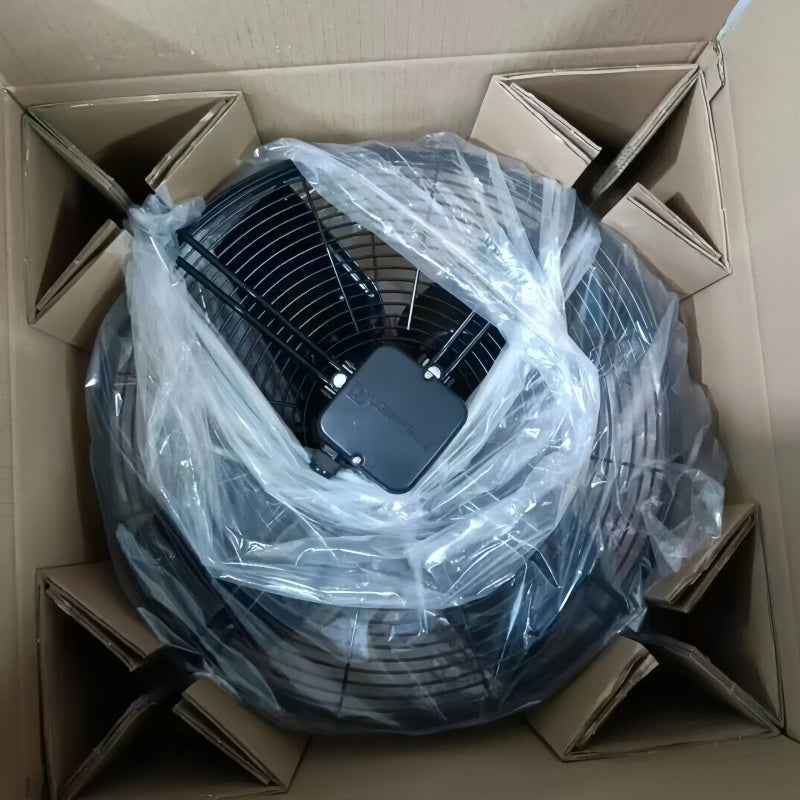

ZIEHL-ABEGG FN080-SDK.6N.V7P5 Axial Fan 800mm 400VAC 1.9kW
Available in stock (200)
Regular price
$829.46
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN080-SDK.6N.V7P5 |
| Product Category | Axial Fan |
| Article Number | 168893 |
| Fan Design | Axial Fan |
| Fan Diameter | 800 mm |
| Motor Technology | AC |
| Phase | 3-Phase |
| Rated Voltage | 3~ 400 VAC |
| Frequency | 50 Hz |
| Input Power | 1.90 / 1.10 kW |
| Rated Current | 3.90 / 2.00 A |
| Rated Speed | 870 / 630 RPM |
| Airflow | 16200 / 12000 m³/h |
| Static Pressure | 150 / 80 Pa |
| Number of Blades | 7 |
| Impeller Material | Aluminium |
| Motor Protection | Integrated Thermal Contact |
| Thermal Class | 155 |
| Degree of Protection | IP55 |
Key Features
400 VAC 3-Phase Supply
The documented electrical configuration uses a three-phase 400 VAC supply at 50 Hz.
Delta / Star Operation
The documented delta and star operating points provide input power values of 1.90 and 1.10 kW respectively.
870 / 630 RPM
The documented rated speeds are 870 RPM and 630 RPM according to the selected delta or star connection.
Axial Airflow
The documented operating points provide airflow values of 16200 and 12000 m³/h with corresponding static pressures of 150 and 80 Pa.
Motor Protection
The documented configuration includes an integrated thermal contact, thermal class 155 and IP55 degree of protection.
Applications
- Industrial ventilation systems
- Air handling equipment
- Large condenser systems
- Industrial machinery cooling
- Heat exchanger airflow
- Frequency converter cooling
- Equipment heat removal
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN080-SDK.6N.V7P5 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN080-SDK.6N.V7P5?
ZIEHL-ABEGG FN080-SDK.6N.V7P5 is an 800 mm three-phase AC axial fan for industrial airflow and cooling applications.
What article number is associated with FN080-SDK.6N.V7P5?
ZIEHL-ABEGG catalogue information lists article number 168893 for the SDK design configuration.
What is the fan diameter?
The documented fan diameter is 800 mm.
What voltage does FN080-SDK.6N.V7P5 use?
The documented electrical configuration uses a three-phase 400 VAC supply.
What is the input power?
The documented delta and star input power values are 1.90 kW and 1.10 kW.
What is the rated current?
The documented current values are 3.90 A and 2.00 A for the corresponding operating points.
What is the rated speed?
The documented rated speeds are 870 RPM and 630 RPM.
What airflow is documented?
The documented airflow values are 16200 and 12000 m³/h at the corresponding operating points.
What is the degree of protection?
The documented degree of protection is IP55.
What motor protection is used?
The documented motor configuration includes an integrated thermal contact.
Can FN080-SDK.6N.V7P5 be considered for an existing system?
It can be considered after the complete model designation and the required electrical, airflow, pressure, dimensional and mechanical installation specifications have been checked against the existing system.
What should be checked before ordering FN080-SDK.6N.V7P5?
Check the complete model designation and article configuration together with the required voltage, connection, power, current, speed, airflow, pressure, dimensions and installation requirements before ordering.
