630 mm Axial Fan

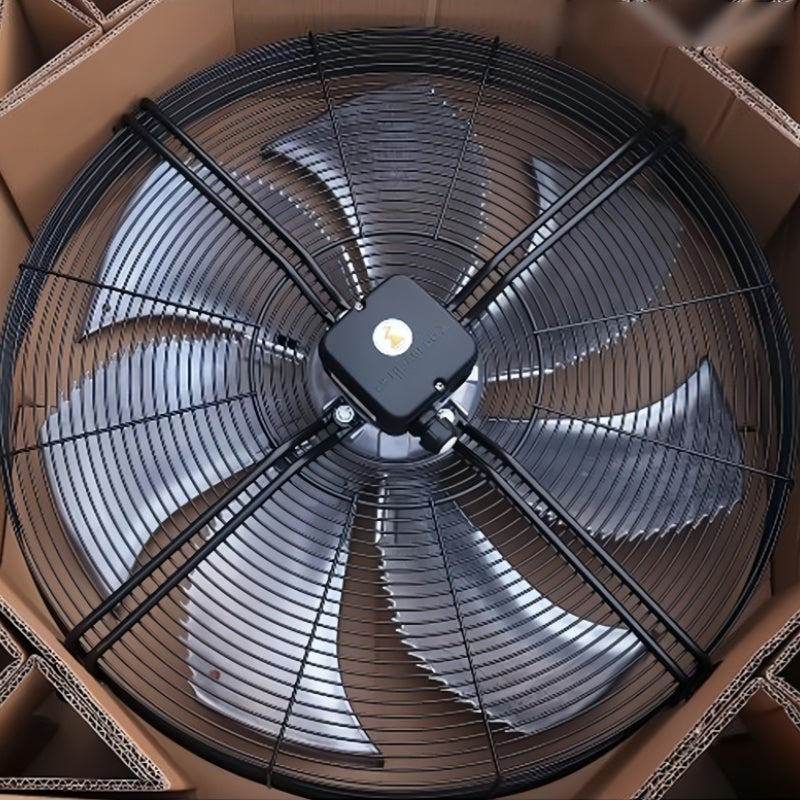

The FN063-SDK.4I.V7P1 is a 630 mm axial fan with sickle-shaped blades and suction airflow direction.
ZIEHL-ABEGG FN063-SDK.4I.V7P1 Axial Fan 630mm 400VAC 620W
Available in stock (200)
Regular price
$1,059.64
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN063-SDK.4I.V7P1 |
| Product Category | Axial Fan |
| Article Number | 141384 |
| Fan Series | FN |
| Fan Design | Axial Fan with Sickle-Shaped Blades |
| Fan Diameter | 630 mm |
| Motor Technology | AC |
| Phase | 3-Phase |
| Rated Voltage | 3~ 400 VAC ±10% |
| Frequency | 50 Hz |
| Input Power | 620 / 440 W |
| Rated Current | 1.25 / 0.72 A |
| Rated Speed | 900 / 720 RPM |
| Airflow | 11100 / 9600 m³/h at Δp = 0 Pa |
| Airflow Direction | V / Suction |
| Degree of Protection | IP54 |
| Thermal Class | 155 |
| Motor Protection | Thermal Contact |
| Bearing Type | Ball Bearing with Long-Life Lubrication |
| Weight | 15.4 kg |
Key Features
400 VAC 3-Phase Supply
The documented 50 Hz electrical configuration uses a three-phase 400 VAC ±10% supply with delta and star operating points.
620 / 440 W Input Power
The documented input power is 620 W in delta connection and 440 W in star connection.
900 / 720 RPM
The corresponding documented rotational speeds are 900 RPM in delta and 720 RPM in star connection.
Axial Airflow
Documented airflow at zero static pressure is 11100 m³/h in delta connection and 9600 m³/h in star connection.
IP54 Motor Protection
The documented configuration includes IP54 protection, thermal class 155, a thermal contact and ball bearings with long-life lubrication.
Applications
- Industrial refrigeration systems
- Condenser and evaporator airflow
- Heat exchanger cooling
- Industrial ventilation systems
- Air handling equipment
- Industrial machinery cooling
- Equipment heat removal
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN063-SDK.4I.V7P1 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN063-SDK.4I.V7P1?
ZIEHL-ABEGG FN063-SDK.4I.V7P1 is a 630 mm three-phase AC axial fan with sickle-shaped blades.
What is the article number of FN063-SDK.4I.V7P1?
The documented article number is 141384.
What voltage does FN063-SDK.4I.V7P1 use?
The documented 50 Hz electrical configuration uses a three-phase 400 VAC ±10% supply.
What is the input power?
The documented input power is 620 W in delta connection and 440 W in star connection.
What is the rated current?
The documented current is 1.25 A in delta connection and 0.72 A in star connection.
What is the rated speed?
The documented rotational speed is 900 RPM in delta connection and 720 RPM in star connection.
What airflow is documented?
At zero static pressure, documented airflow is 11100 m³/h in delta connection and 9600 m³/h in star connection.
What is the airflow direction?
The documented airflow direction is V, corresponding to the suction configuration.
What is the degree of protection?
The documented degree of protection is IP54.
What motor protection is used?
The documented motor configuration incorporates a thermal contact and thermal class 155.
Can FN063-SDK.4I.V7P1 be considered for an existing system?
It can be considered after the complete model designation and the required voltage, connection, power, current, speed, airflow, dimensions and mechanical installation requirements have been checked against the existing system.
What should be checked before ordering FN063-SDK.4I.V7P1?
Check the complete model and article number together with the required voltage, delta or star connection, power, current, speed, airflow, dimensions and installation requirements before ordering.
