450 mm Axial Fan

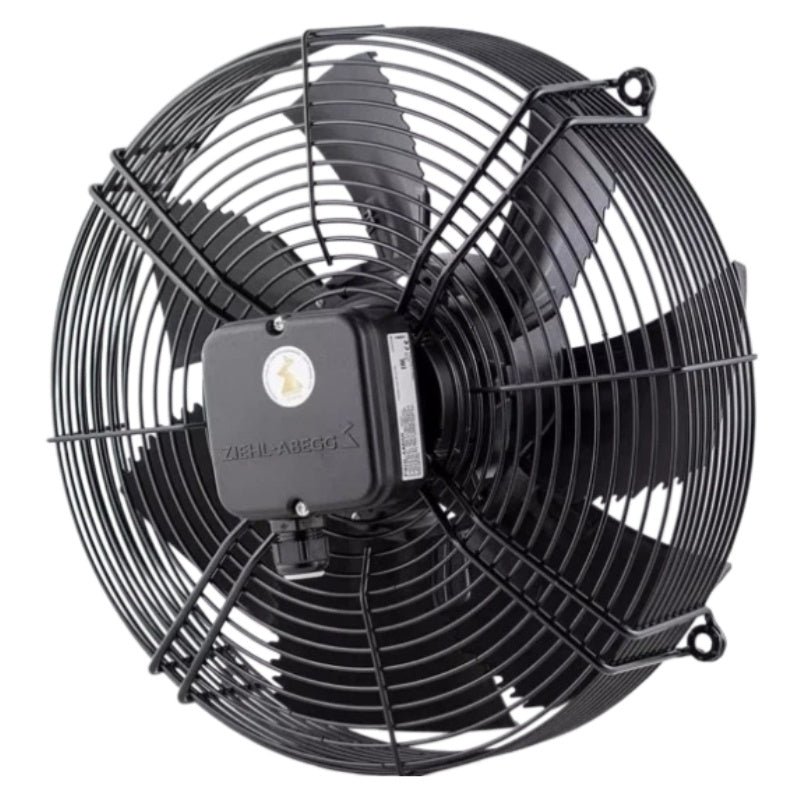

The FN045-VDK.4I-V7P1 is a 450 mm axial fan equipped with seven profiled die-cast aluminum blades.
ZIEHL-ABEGG FN045-VDK.4I-V7P1 Axial Fan 400 VAC 450 mm 540 W
Available in stock (200)
Regular price
$783.48
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN045-VDK.4I-V7P1 |
| Product Category | Axial Fan |
| Fan Type | Axial Fan with 7 Profiled Blades |
| Fan Diameter | 450 mm |
| Motor Type | External Rotor Motor |
| Power Supply | 3-Phase |
| Rated Voltage | 400 VAC |
| Frequency | 50/60 Hz |
| Power Input | 540/340 W |
| Rated Current | 1.2/0.6 A |
| Speed | 1320/1070 RPM |
| Air Flow | 5550 m³/h |
| Airflow Direction | Impeller to Mounting |
| Degree of Protection | IP54 |
| Insulation Class | Class F |
| Electrical Connection | Terminal Box |
| Blade Material | Die-Cast Aluminum |
| Weight | 11 kg |
Key Features
400 VAC Supply
The documented electrical configuration uses a three-phase 400 VAC supply with 50/60 Hz operation.
5550 m³/h Air Flow
Exact-model technical documentation lists an airflow value of 5550 m³/h for the fan configuration.
540/340 W Power Input
The documented operating data specifies power input values of 540/340 W and current values of 1.2/0.6 A.
External Rotor Motor
The axial impeller is combined with an external rotor motor and ball-bearing arrangement for industrial air-moving applications.
IP54 Protection
The documented configuration has an IP54 degree of protection, Class F insulation and terminal-box electrical connection.
Applications
- Industrial ventilation systems
- Refrigerated cabinets
- Generator cooling systems
- Air-conditioning equipment
- Heat exchanger airflow systems
- Industrial machinery cooling
- Air handling equipment
- Axial fan system maintenance
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN045-VDK.4I-V7P1 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN045-VDK.4I-V7P1?
It is a 450 mm axial fan with seven profiled die-cast aluminum blades and an external rotor motor.
What voltage does FN045-VDK.4I-V7P1 use?
The documented electrical supply is three-phase 400 VAC.
What frequency does the fan support?
Exact-model documentation specifies 50/60 Hz.
What is the airflow?
The documented airflow value is 5550 m³/h.
What is the power input?
The documented power input values are 540/340 W.
What is the rated current?
The documented current values are 1.2/0.6 A.
What is the fan speed?
The documented rotational speed values are 1320/1070 RPM.
What is the fan diameter?
The documented impeller diameter is 450 mm.
What is the protection rating?
The documented degree of protection is IP54 with Class F insulation.
What material are the fan blades?
The seven profiled blades are documented as die-cast aluminum.
What is the permitted air temperature range?
Exact-model documentation specifies conveyed air temperatures from -25°C to +70°C.
What should be checked before ordering FN045-VDK.4I-V7P1?
Check the complete model designation, 400 VAC supply, 450 mm diameter, airflow requirements, electrical connection, mounting arrangement and equipment requirements before purchasing.
