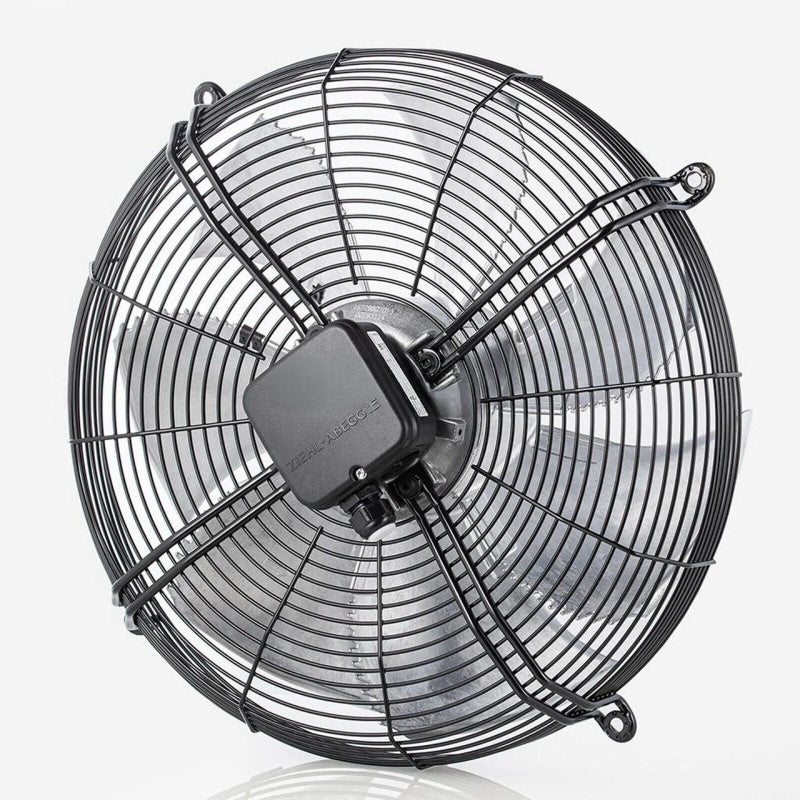

450 mm Axial Fan
The FN045-4EK.4I.V7P1 is a 450 mm FE2owlet axial fan designed for industrial air-moving and cooling applications.
1 / 7
ZIEHL-ABEGG
ZIEHL-ABEGG FN045-4EK.4I.V7P1 Axial Fan 230 VAC 450 mm 600 W
PRODUCT PRICE
USD
$612.73
0 pcs / pack
Available to order
Request a QuoteNeed multiple units or help confirming a model? Contact our team.
Payments
Available payment methods
Shop with confidence
30-Day Risk-Free Returns & Exchanges
Shop with complete confidence. Whatever the reason, enjoy hassle-free returns and exchanges within 30 days. We cover all shipping costs for both returns and exchanges—no extra shipping fees, no worries.
Service Guarantee
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FN045-4EK.4I.V7P1 |
| Product Category | Axial Fan |
| Article Number | 167804 |
| Fan Diameter | 450 mm |
| Motor Technology | AC |
| Power Supply | 1-Phase |
| Rated Voltage | 230 VAC |
| Frequency | 50 Hz |
| Rated Current | 2.9 A |
| Power Input | 600 W |
| Rated Speed | 1390 RPM |
| Maximum Air Flow | 7300 m³/h |
| Airflow Direction | V, Suction |
| Operating Capacitor | 14 µF / 400 V |
| Electrical Connection | Terminal Box |
| Number of Blades | 7 |
| Rotor Material | Aluminum |
| Degree of Protection | IP54 |
| Thermal Class | THCL 155 |
| Weight | 12.6 kg |
Key Features
230 VAC Single-Phase Supply
The documented configuration operates from a single-phase 230 VAC supply at 50 Hz.
600 W AC Motor
The documented 50 Hz operating point specifies 600 W input power, 2.9 A rated current and 1390 RPM speed.
7300 m³/h Airflow
Model-specific technical data lists a maximum airflow of 7300 m³/h at a static pressure of 0 Pa.
IP54 Protection
The documented motor configuration has an IP54 degree of protection and THCL 155 thermal class.
Seven-Blade Configuration
The fan uses a seven-blade configuration with an aluminum rotor and V suction airflow direction.
Applications
- Refrigeration equipment
- Air-conditioning equipment
- Industrial ventilation systems
- Evaporator cooling systems
- Heat exchanger airflow systems
- Industrial machinery cooling
- Air handling equipment
- Axial fan system maintenance
Purchase Information
We support online purchase of the ZIEHL-ABEGG FN045-4EK.4I.V7P1 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FN045-4EK.4I.V7P1?
It is a 450 mm FE2owlet AC axial fan for industrial ventilation and cooling applications.
What is the article number?
The documented article number for the current referenced configuration is 167804.
What voltage does FN045-4EK.4I.V7P1 use?
The documented 50 Hz configuration uses a single-phase 230 VAC supply.
What is the power input?
The documented input power at 50 Hz is 600 W.
What is the rated current?
The documented rated current at 50 Hz is 2.9 A.
What is the fan speed?
The documented rated speed at 50 Hz is 1390 RPM.
What is the maximum airflow?
Technical data for article 167804 lists a maximum airflow of 7300 m³/h at 0 Pa static pressure.
What is the fan diameter?
The documented blade diameter is 450 mm.
What capacitor is specified?
The documented operating capacitor is 14 µF / 400 V.
What is the protection rating?
The documented degree of protection is IP54 with THCL 155 thermal class.
What is the permissible air temperature range?
The documented flow-medium temperature range is -25°C to 70°C.
What should be checked before ordering FN045-4EK.4I.V7P1?
Check the complete model number, article number 167804, 230 VAC single-phase supply, 50 Hz frequency, 450 mm diameter, electrical connection and installation requirements before purchasing.
Need help confirming a model?
Send us your part number and technical requirements.
