500 mm Axial Fan

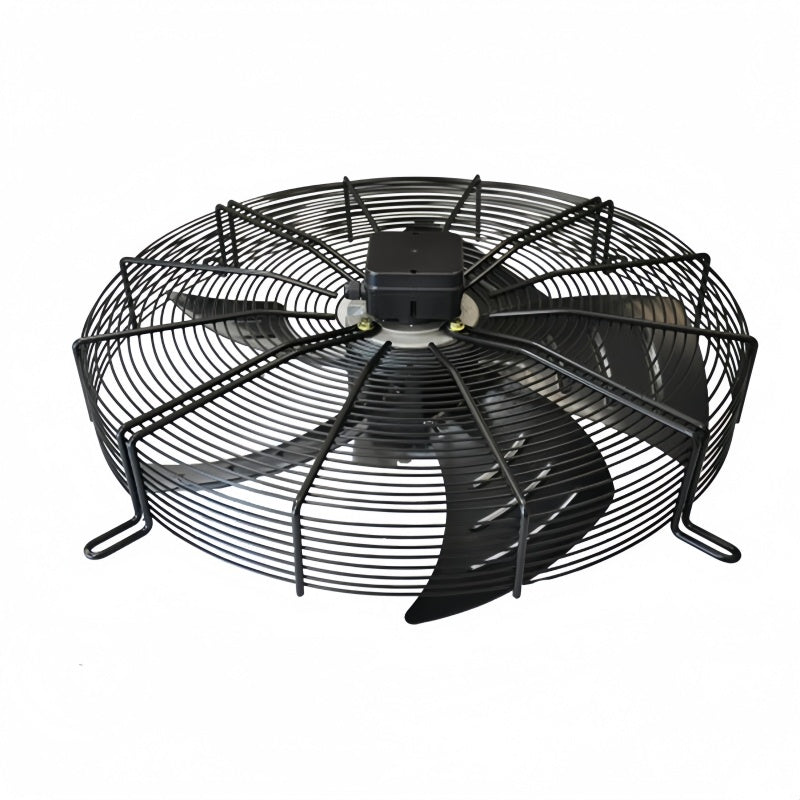

The FE050-VDK.4I.V7 is a 500 mm ZIEHL-ABEGG FE series axial fan for industrial airflow and cooling equipment.
ZIEHL-ABEGG FE050-VDK.4I.V7 Axial Fan 500mm 400VAC 790W
Available in stock (200)
Regular price
$679.54
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FE050-VDK.4I.V7 |
| Product Category | Axial Fan |
| Fan Series | FE |
| Fan Design | Axial Fan |
| Fan Diameter | 500 mm |
| Design | K |
| Airflow Direction | V |
| Motor Technology | AC |
| Phase | 3-Phase |
| Rated Voltage | 3~ 400 VAC ±10% |
| Frequency | 50 Hz |
| Input Power | 0.79 / 0.49 kW |
| Rated Current | 1.45 / 0.89 A |
| Rated Speed | 1330 / 980 RPM |
| Starting Current | 5.2 / 1.85 A |
| Electrical Connection | Terminal Box K07 |
| Connection Diagram | 108XA |
| Weight | 12.7 kg |
Key Features
400 VAC 3-Phase Supply
The documented 50 Hz electrical configuration uses a three-phase 400 VAC ±10% supply with delta and star operating points.
790 / 490 W Input Power
The documented 50 Hz performance data specifies input power values of 0.79 kW in delta and 0.49 kW in star connection.
1330 / 980 RPM
The documented corresponding rotational speeds are 1330 RPM and 980 RPM.
Terminal Box Connection
The K design configuration uses terminal box K07, with connection diagram 108XA documented for this fan.
Airflow Direction V
The documented FE050-VDK.4I.V7 configuration is identified with airflow direction V and design K.
Applications
- Industrial ventilation systems
- Industrial refrigeration equipment
- Condenser cooling systems
- Heat exchanger airflow
- Air handling equipment
- Industrial machinery cooling
- Equipment heat removal
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FE050-VDK.4I.V7 Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FE050-VDK.4I.V7?
ZIEHL-ABEGG FE050-VDK.4I.V7 is a 500 mm FE series axial fan with a three-phase AC motor.
What is the fan diameter?
The documented nominal fan diameter is 500 mm.
What voltage does FE050-VDK.4I.V7 use?
The documented 50 Hz electrical configuration uses a three-phase 400 VAC ±10% supply.
What is the input power at 50 Hz?
The documented input power is 0.79 kW in delta connection and 0.49 kW in star connection.
What is the rated current?
The documented 50 Hz current values are 1.45 A in delta and 0.89 A in star connection.
What is the rated speed?
The documented 50 Hz rotational speeds are 1330 RPM in delta and 980 RPM in star connection.
What electrical connection is used?
The documented K design uses terminal box K07.
What is the connection diagram?
The documented connection diagram for this configuration is 108XA.
What is the documented weight?
The documented weight for the FE050-VDK.4I.V7 K-design configuration is 12.7 kg.
What airflow direction is specified?
The documented airflow direction is V.
Can FE050-VDK.4I.V7 be considered for an existing system?
It can be considered after the complete model designation and the required voltage, connection, power, current, speed, airflow, dimensions and mechanical installation requirements have been checked against the existing system.
What should be checked before ordering FE050-VDK.4I.V7?
Check the complete model designation together with the required voltage, frequency, delta or star connection, power, current, speed, airflow requirements, dimensions and installation arrangement before ordering.
