500 mm Axial Fan
The FB050-4EK.4I.V4P is a 500 mm FB Series axial fan configured for refrigeration and industrial airflow applications.

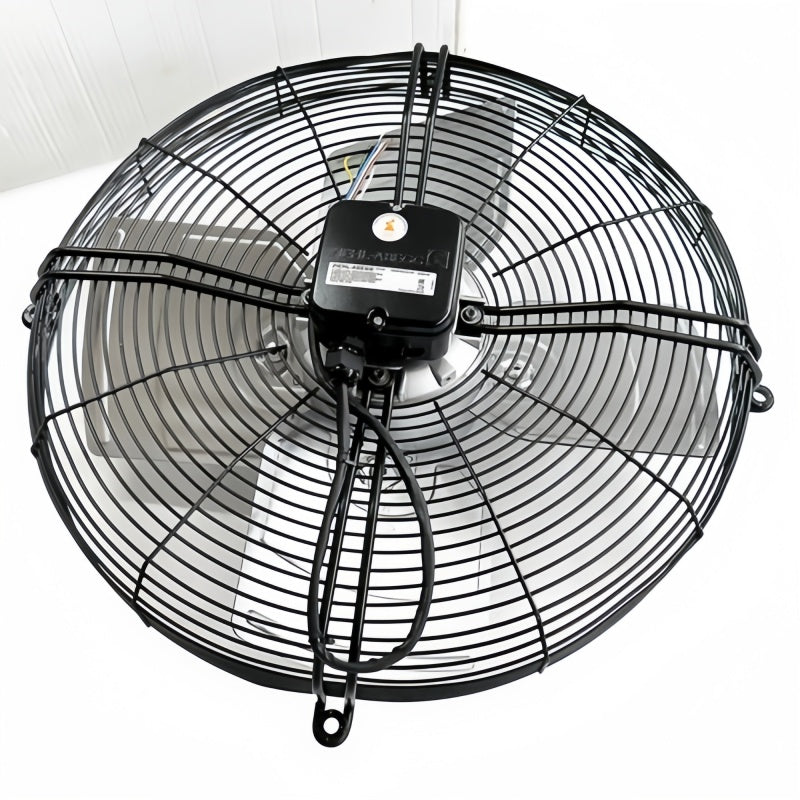

ZIEHL-ABEGG FB050-4EK.4I.V4P Axial Fan 500mm 230VAC 450W
Available in stock (200)
Regular price
$377.53
Sale price
Regular price
Shipping calculated at checkout.
Technical Specifications
| Brand | ZIEHL-ABEGG |
| Model Number | FB050-4EK.4I.V4P |
| Product Category | Axial Fan |
| Manufacturer Part Number | 101634 |
| Series | FB Series |
| Fan Diameter | 500 mm |
| Phase | Single-Phase |
| Rated Voltage | 230 VAC |
| Power Input | 450 W |
| Rated Current | 2.1 A |
| Rated Speed | 1300 RPM |
| Airflow | 6750 m³/h |
| Airflow Direction | V |
| Mounting PCD | 565 mm |
Key Features
230 VAC Single-Phase Supply
The documented electrical configuration uses a single-phase 230 VAC power supply.
450 W Power Input
The documented power input is 450 W with a rated current of 2.1 A.
1300 RPM Speed
The documented rated speed is 1300 RPM for the specified configuration.
6750 m³/h Airflow
The documented airflow value is 6750 m³/h for this FB050-4EK.4I.V4P configuration.
565 mm Mounting PCD
The documented mounting pitch circle diameter is 565 mm, an important dimension to verify before installation.
Applications
- Refrigeration equipment
- Condenser airflow systems
- Air conditioning equipment
- Heat exchanger airflow
- Industrial equipment ventilation
- Industrial machinery cooling
- Equipment heat removal
- Industrial air circulation
Purchase Information
We support online purchase of the ZIEHL-ABEGG FB050-4EK.4I.V4P Axial Fan. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is ZIEHL-ABEGG FB050-4EK.4I.V4P?
ZIEHL-ABEGG FB050-4EK.4I.V4P is a 500 mm FB Series axial fan configured for refrigeration and industrial airflow applications.
What is the manufacturer part number of FB050-4EK.4I.V4P?
The documented manufacturer part number for this configuration is 101634.
What is the fan diameter of FB050-4EK.4I.V4P?
The documented fan diameter is 500 mm.
What voltage does FB050-4EK.4I.V4P use?
The documented rated voltage is 230 VAC with a single-phase electrical configuration.
What is the power input of FB050-4EK.4I.V4P?
The documented power input is 450 W.
What is the rated current of FB050-4EK.4I.V4P?
The documented rated current is 2.1 A.
What is the rated speed of FB050-4EK.4I.V4P?
The documented rated speed is 1300 RPM.
What airflow is documented for FB050-4EK.4I.V4P?
The documented airflow is 6750 m³/h.
What is the airflow direction of FB050-4EK.4I.V4P?
The documented airflow direction is V.
What is the mounting PCD of FB050-4EK.4I.V4P?
The documented mounting pitch circle diameter is 565 mm.
Can FB050-4EK.4I.V4P be considered for an existing system?
It can be considered after the complete model designation and the electrical, airflow, dimensional and mechanical installation requirements have been checked against the existing system.
What should be checked before ordering FB050-4EK.4I.V4P?
Check the complete model designation together with the required voltage, power, current, speed, airflow, mounting dimensions and mechanical installation requirements before ordering.
