230VAC Control Coil
Schneider specifies a 230 VAC control circuit voltage for the RXM4AB2P7 relay.

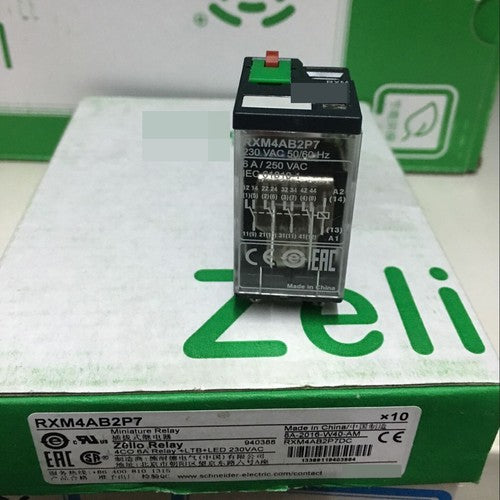

Schneider RXM4AB2P7 Miniature Plug-in Relay 230VAC 6A 4CO
Available in stock (200)
Regular price
$23.41
Sale price
Regular price
$0.00
Shipping calculated at checkout.
Technical Specifications
| Brand | Schneider |
| Model Number | RXM4AB2P7 |
| Product Category | Miniature Plug-in Relay |
| Product Family | Harmony Electromechanical Relays |
| Series | RXM Series |
| Relay Type | Miniature Relay |
| Contacts Type and Composition | 4 C/O |
| Control Circuit Voltage | 230 VAC |
| Conventional Enclosed Thermal Current | 6 A |
| Status LED | With |
| Control Type | Lockable Test Button |
| Connection Type | Flat, Faston Type |
Key Features
4 C/O Contacts
The relay provides four changeover contacts for multi-contact switching and control circuits.
6A Thermal Current
The documented conventional enclosed thermal current rating is 6 A.
Status LED
The RXM4AB2P7 configuration includes an LED for visual relay status indication.
Lockable Test Button
The documented configuration includes a lockable test button for manual relay checking.
Miniature Plug-in Design
RXM4AB2P7 is identified by Schneider as a miniature plug-in electromechanical relay in the RXM series.
Applications
- Industrial control panel switching
- Machine control circuits
- PLC interface circuits
- Automation relay control
- Electrical cabinet control circuits
- Signal switching applications
- Multi-contact control circuits
- Industrial equipment maintenance projects
Purchase Information
We support online purchase of the Schneider RXM4AB2P7 Miniature Plug-in Relay. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is Schneider RXM4AB2P7?
Schneider RXM4AB2P7 is a miniature plug-in electromechanical relay in the Harmony RXM series with four changeover contacts, a 230 VAC control circuit, status LED and lockable test button.
What control voltage does RXM4AB2P7 use?
The documented control circuit voltage is 230 VAC.
How many contacts does RXM4AB2P7 provide?
RXM4AB2P7 provides four changeover contacts, specified as 4 C/O.
What current rating is specified for RXM4AB2P7?
Schneider specifies a conventional enclosed thermal current rating of 6 A.
Does RXM4AB2P7 include an LED?
Yes. The documented configuration includes a status LED.
Does RXM4AB2P7 include a test button?
Yes. Schneider specifies a lockable test button for this relay configuration.
What relay series does RXM4AB2P7 belong to?
RXM4AB2P7 belongs to the Schneider Harmony Electromechanical Relays RXM series.
What type of relay is RXM4AB2P7?
Schneider identifies RXM4AB2P7 as a miniature plug-in relay.
What applications can RXM4AB2P7 be considered for?
It can be considered for industrial control panels, machine control circuits, automation switching and other relay control applications after the electrical requirements have been checked.
Can RXM4AB2P7 be considered for an existing control system?
It can be considered after the complete model number, 230 VAC control voltage, contact arrangement, current requirements, socket arrangement and circuit requirements have been checked against the existing system.
What should be checked before ordering RXM4AB2P7?
Check the complete RXM4AB2P7 model number, 230 VAC control voltage, 4 C/O contact configuration, 6 A thermal current requirement, relay socket arrangement and electrical circuit requirements before purchasing.
