25 A AC-3 Rating
Rated for 25 A in AC-3 duty up to 440 V for motor control and resistive load switching.
Schneider
Schneider LC1D25F7 Contactor 25A 110VAC 50/60Hz 3-Pole
$24.54
Available
PRODUCT GALLERY
01 / 2

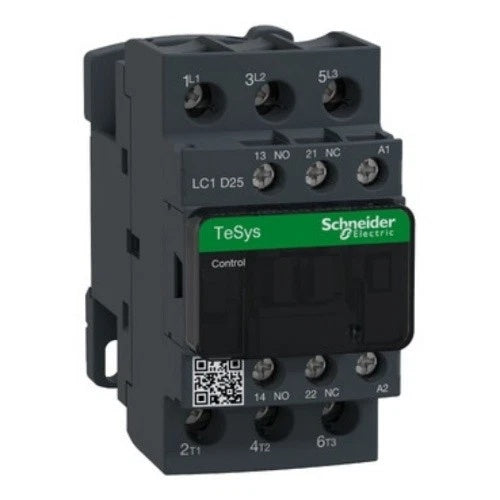

Product images for part identification
Schneider
Schneider LC1D25F7 Contactor 25A 110VAC 50/60Hz 3-Pole
PRODUCT PRICE
USD
$24.54
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Schneider |
| Model Number | LC1D25F7 |
| Product Category | Contactor |
| Product Family | TeSys D |
| Number of Poles | 3 |
| Pole Contact Composition | 3 NO |
| Rated Operational Current (AC-3) | 25 A at <= 440 V |
| Coil Voltage | 110 V AC, 50/60 Hz |
| Rated Breaking Capacity | 450 A at 440 V |
| Auxiliary Contacts | 1 NO + 1 NC |
| Terminal Type | Screw Clamp |
| Mounting | DIN Rail or Panel |
| Product Weight | 0.37 kg |
Key Features
110 V AC Coil
Equipped with a 110 V AC coil rated for 50/60 Hz supply for control circuit compatibility.
3-Pole Configuration
Three normally open power poles support three-phase load switching in industrial circuits.
Integrated Auxiliary Contacts
Includes built-in 1 NO + 1 NC auxiliary contacts for control and interlocking circuits.
Screw Clamp Terminals
Screw clamp terminals provide secure wiring connections for power and control cables.
Applications
- Three-phase motor starting and control
- Pump and fan contactor panels
- HVAC equipment control
- Conveyor drive switching
- Compressor and chiller control
- Industrial automation power circuits
Purchase Information
We support online purchase of the Schneider LC1D25F7 Contactor. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Schneider LC1D25F7? The LC1D25F7 is a TeSys D contactor with 3 poles, rated 25 A in AC-3 duty up to 440 V, and a 110 V AC coil.
What is the coil voltage? The coil voltage is 110 V AC, 50/60 Hz.
How many poles does it have? It is a 3-pole contactor with 3 NO power contacts.
What is the rated operational current? The rated operational current is 25 A in AC-3 category at <= 440 V.
Does it include auxiliary contacts? Yes, it includes 1 NO + 1 NC built-in auxiliary contacts.
What type of terminals does it use? It uses screw clamp terminals for connection.
What is the rated breaking capacity? The rated breaking capacity is 450 A at 440 V.
What should be checked before ordering? Verify the coil voltage, pole configuration, current rating, auxiliary contact requirements, and terminal wire size for your application.
