Dual AC Input Voltage
Supports 115 V AC and 230 V AC input for flexibility across different industrial power systems.
Schneider
Schneider 140CPS11420 Power Supply 115/230VAC 24VDC 8A
$174.89
Available
PRODUCT GALLERY
01 / 4

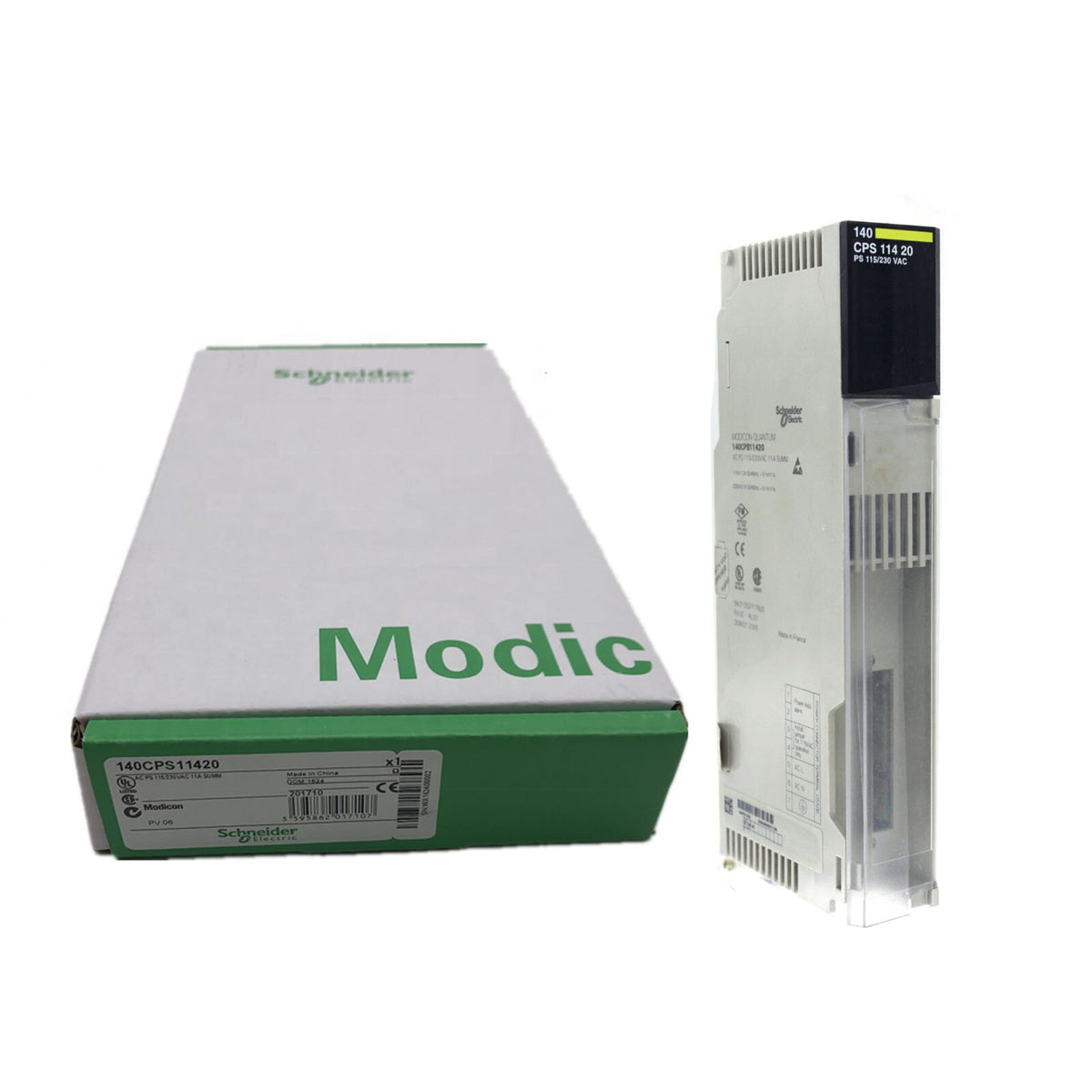

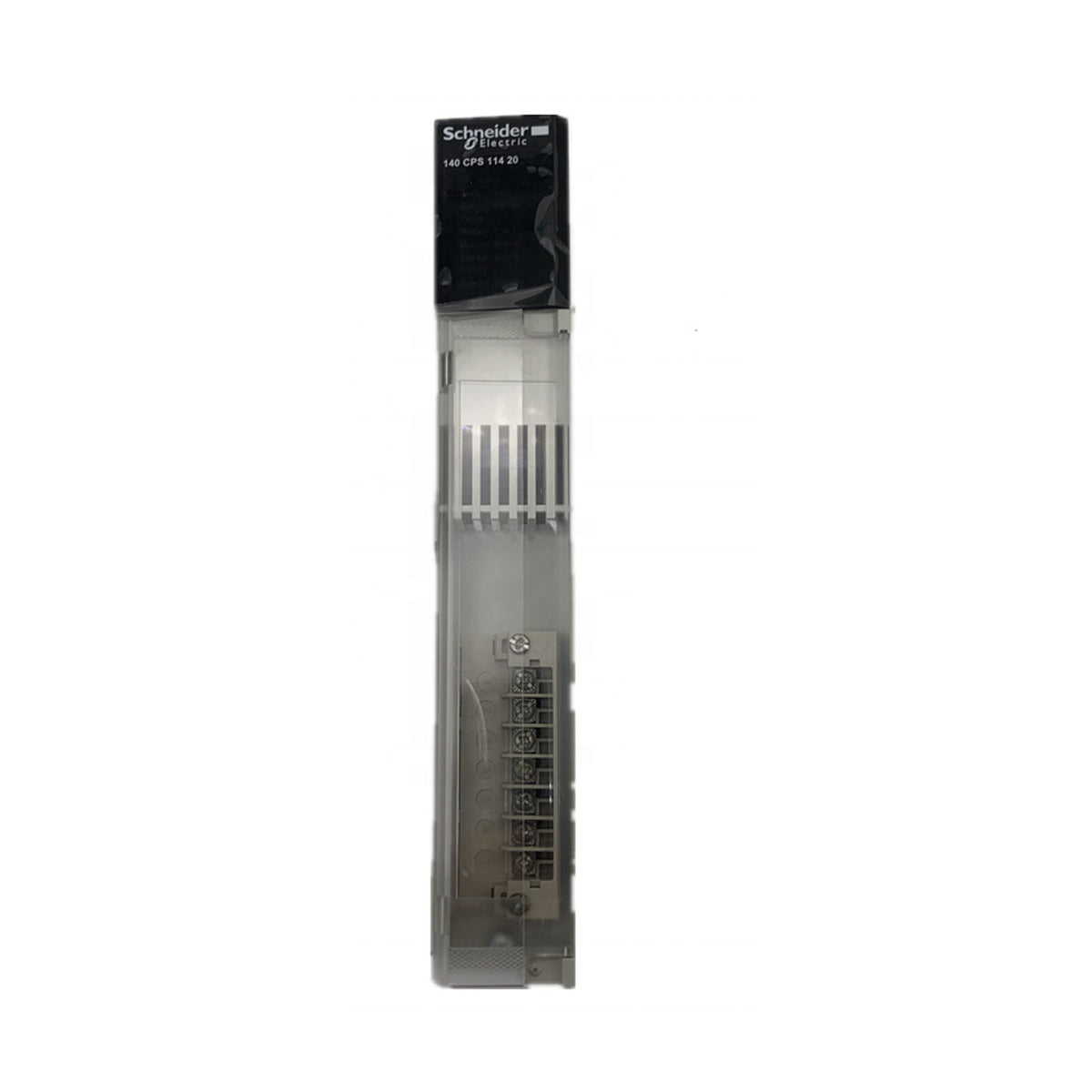

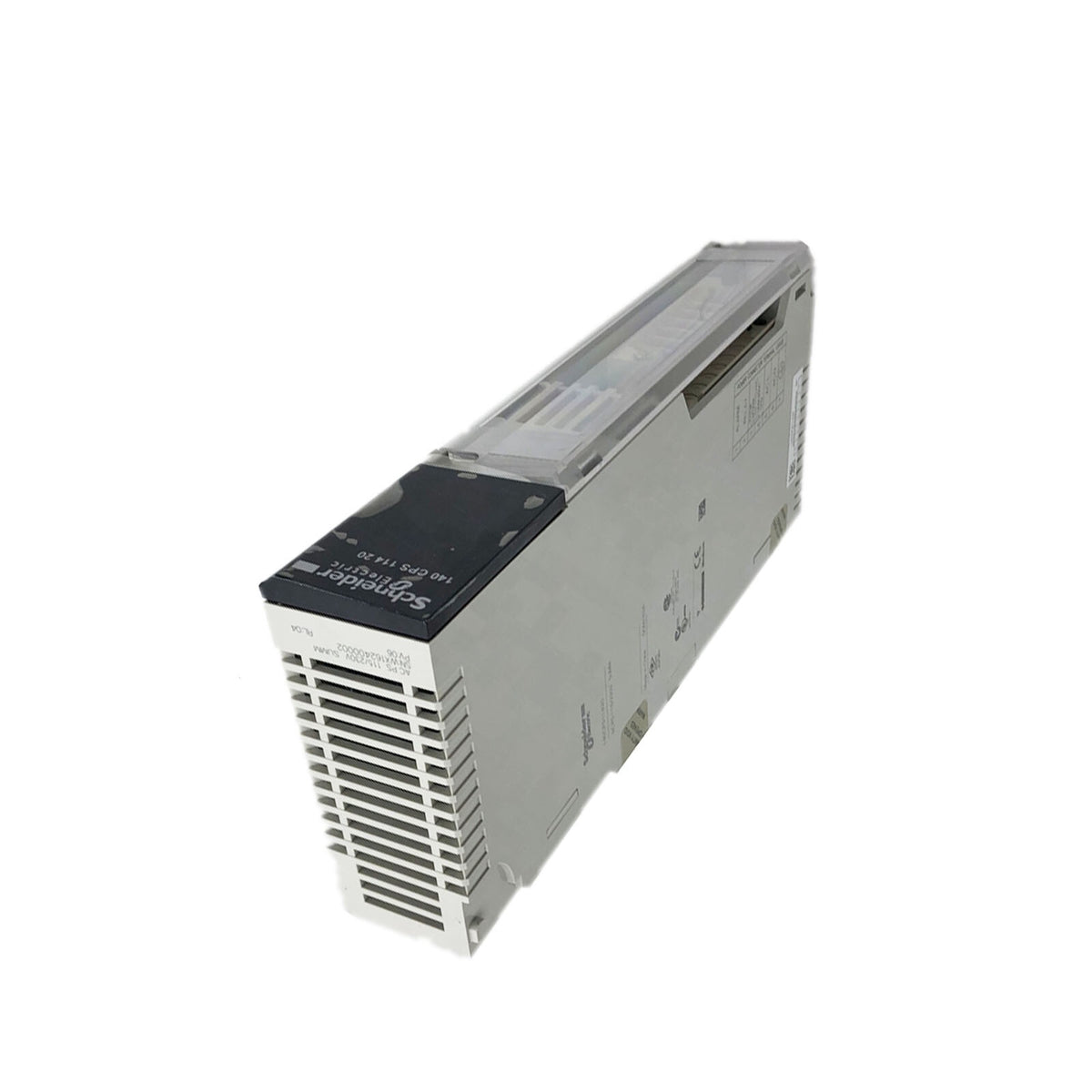

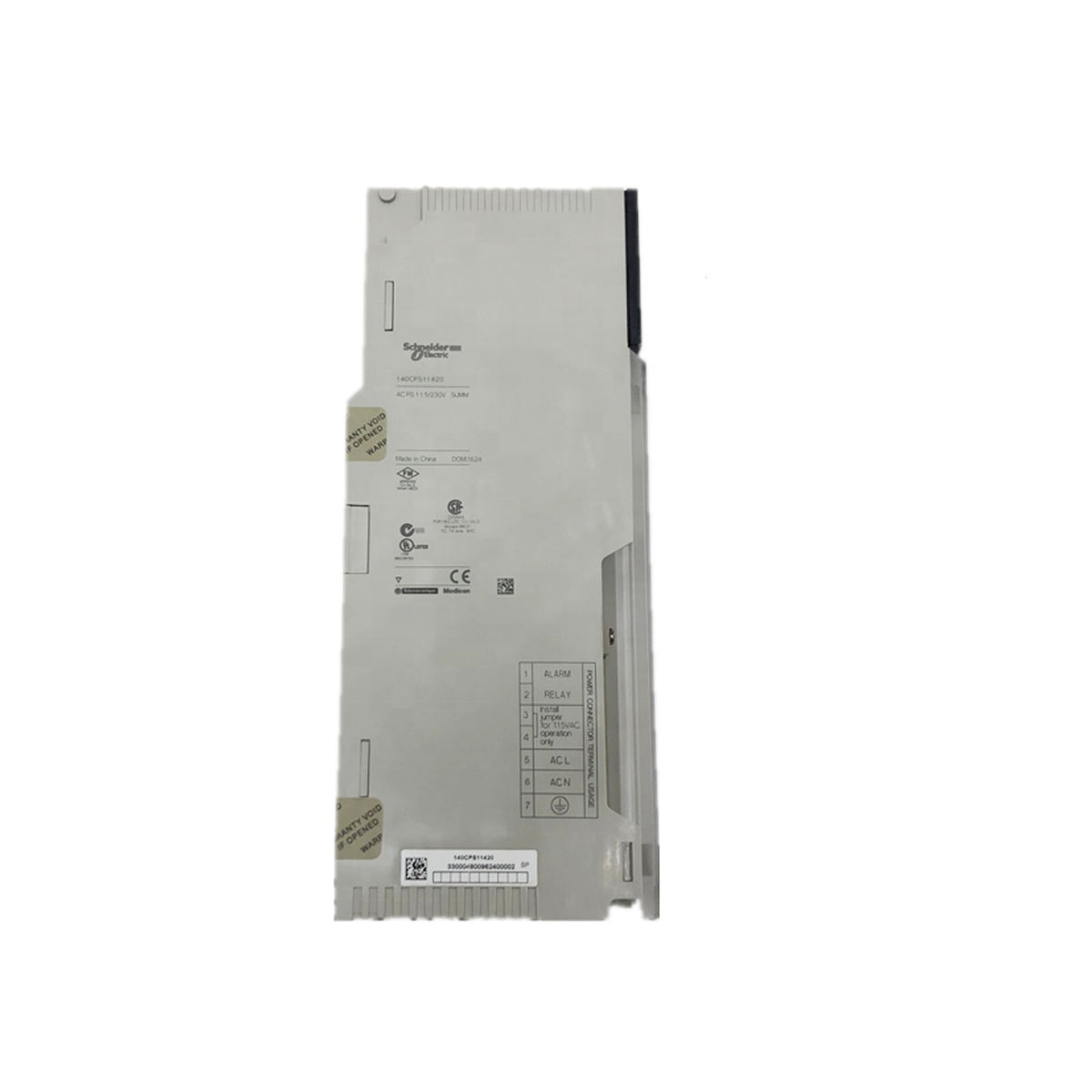

Product images for part identification
Schneider
Schneider 140CPS11420 Power Supply 115/230VAC 24VDC 8A
PRODUCT PRICE
USD
$174.89
Available to order
Request a Quote
Need multiple units or help confirming a model?
Contact our team.
Free U.S. Shipping
Standard delivery
30-Day Returns
Subject to return policy
Bulk Purchase
Request volume quotes
Secure Checkout
Shopify-powered checkout
PRODUCT DOCUMENTATION
Product Information
Technical specifications, features, applications and purchasing information.
Technical Specifications
| Brand | Schneider |
| Model Number | 140CPS11420 |
| Product Category | Power Supply |
| Product Family | Modicon Quantum |
| Power Supply Type | Standalone or Summable |
| Input Voltage | 115 V AC / 230 V AC (47-63 Hz) |
| Input Voltage Range | 93-132 V AC / 170-276 V AC |
| Output Voltage | 5.1 V DC |
| Output Current (Standalone) | 11 A at 60°C |
| Output Current (Summable) | 20 A at 60°C |
| Rated Power | 130 VA |
| Input Current | 1300 mA at 115 V / 750 mA at 230 V |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W x H x D) | 40 mm x 250 mm x 104 mm |
| Weight | 0.65 kg |
Key Features
5.1 V DC Output
Provides a regulated 5.1 V DC output for Modicon Quantum PLC backplane and I/O modules.
Standalone or Summable
Can operate as a standalone power supply or in a summable configuration for higher output current.
Status LED Indication
Includes a green LED for local power status monitoring during operation.
Internal Protection
Features internal output overvoltage and overload protection for reliable system operation.
Applications
- Modicon Quantum PLC systems
- Industrial control panel power distribution
- Process automation power supplies
- SCADA and monitoring system power
- Manufacturing line control cabinets
- Infrastructure automation panels
Purchase Information
We support online purchase of the Schneider 140CPS11420 Power Supply. If you need to make bulk purchases and inquire about other products, please contact our team to inform us of your purchase requirements. We will provide you with information such as quantity quotations, delivery dates, and transportation methods.
Frequently Asked Questions
What is the Schneider 140CPS11420? The 140CPS11420 is a Modicon Quantum power supply module with 115/230 V AC input and 5.1 V DC output.
What is the output voltage? The output voltage is 5.1 V DC.
What is the output current? The output current is 11 A in standalone mode at 60°C and 20 A in summable mode at 60°C.
What input voltages are supported? It supports 115 V AC and 230 V AC input at 47-63 Hz.
What is the rated power? The rated power is 130 VA.
What is the operating temperature range? The operating temperature range is 0°C to +60°C.
What are the dimensions? The module dimensions are 40 mm wide, 250 mm high, and 104 mm deep.
What should be checked before ordering? Verify the input voltage available at the site, required output current (standalone or summable), and compatibility with the existing Quantum rack configuration.
Need help confirming a model?
Send us your part number and technical requirements.
